Entertainment Component Views

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

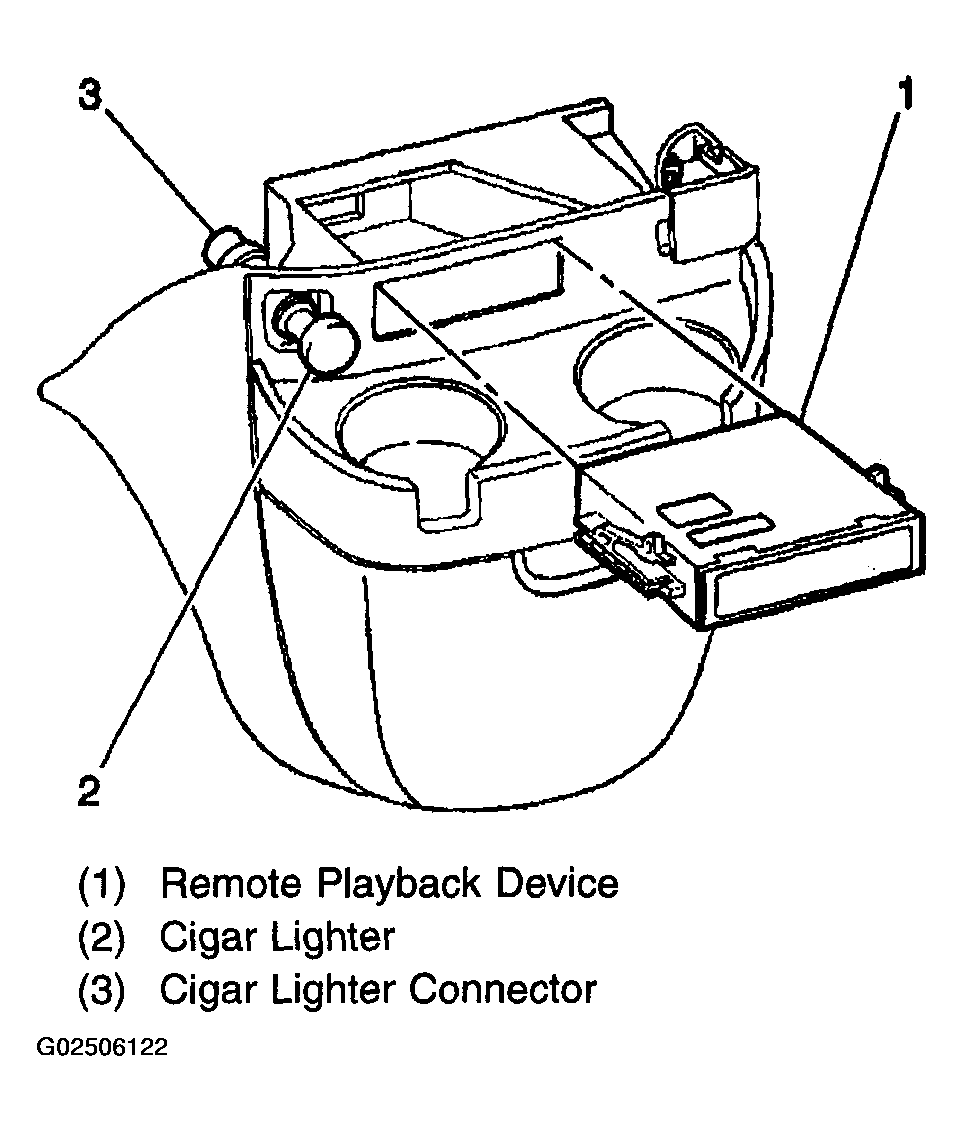

Fig 1: Center Console
G02506122Courtesy of GENERAL MOTORS CORP.

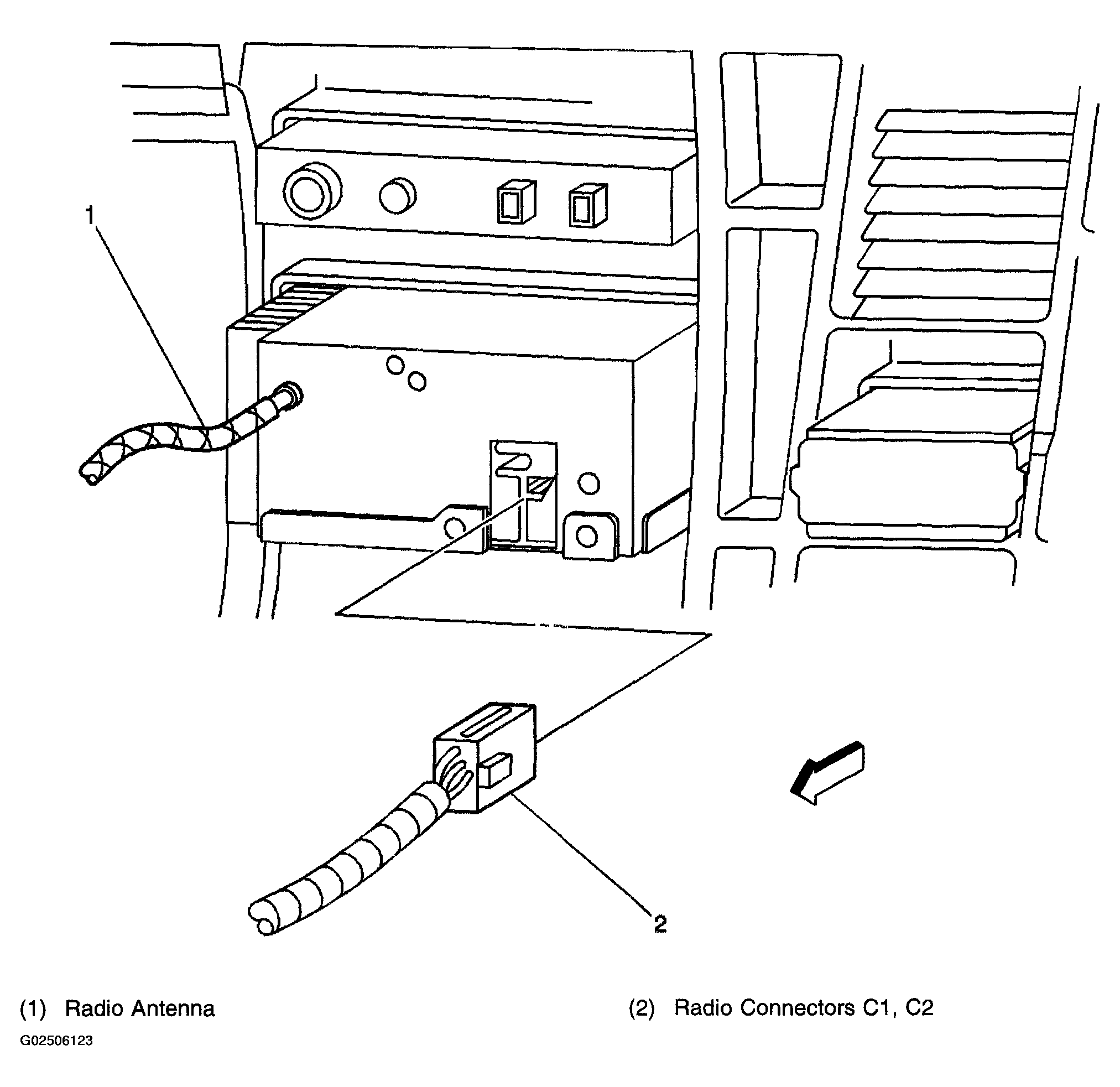

Fig 2: Base Radio Rear Component View
G02506123Courtesy of GENERAL MOTORS CORP.

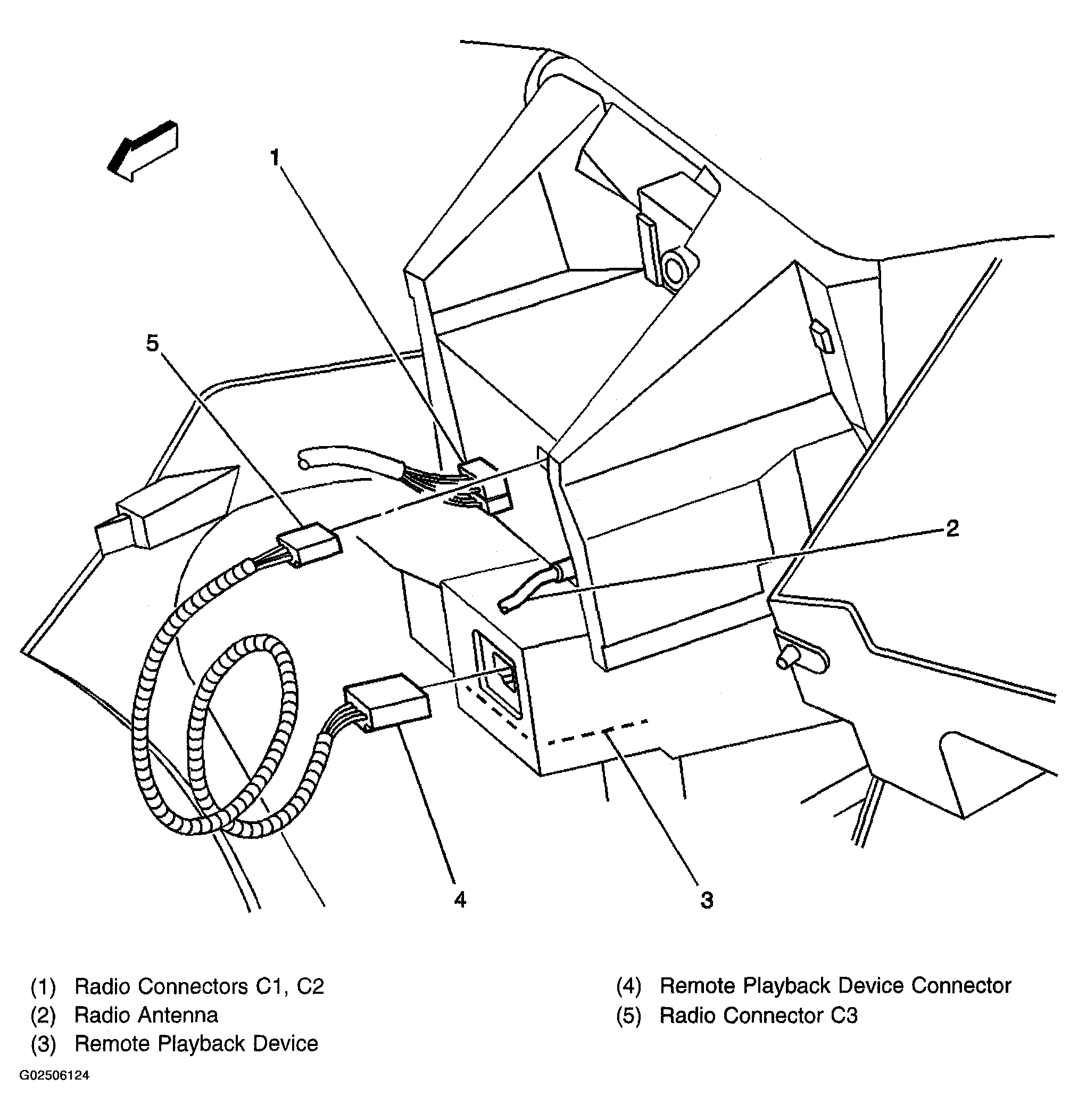

Fig 3: Radio Jumper Harness Location View (Premium Radio)
G02506124Courtesy of GENERAL MOTORS CORP.

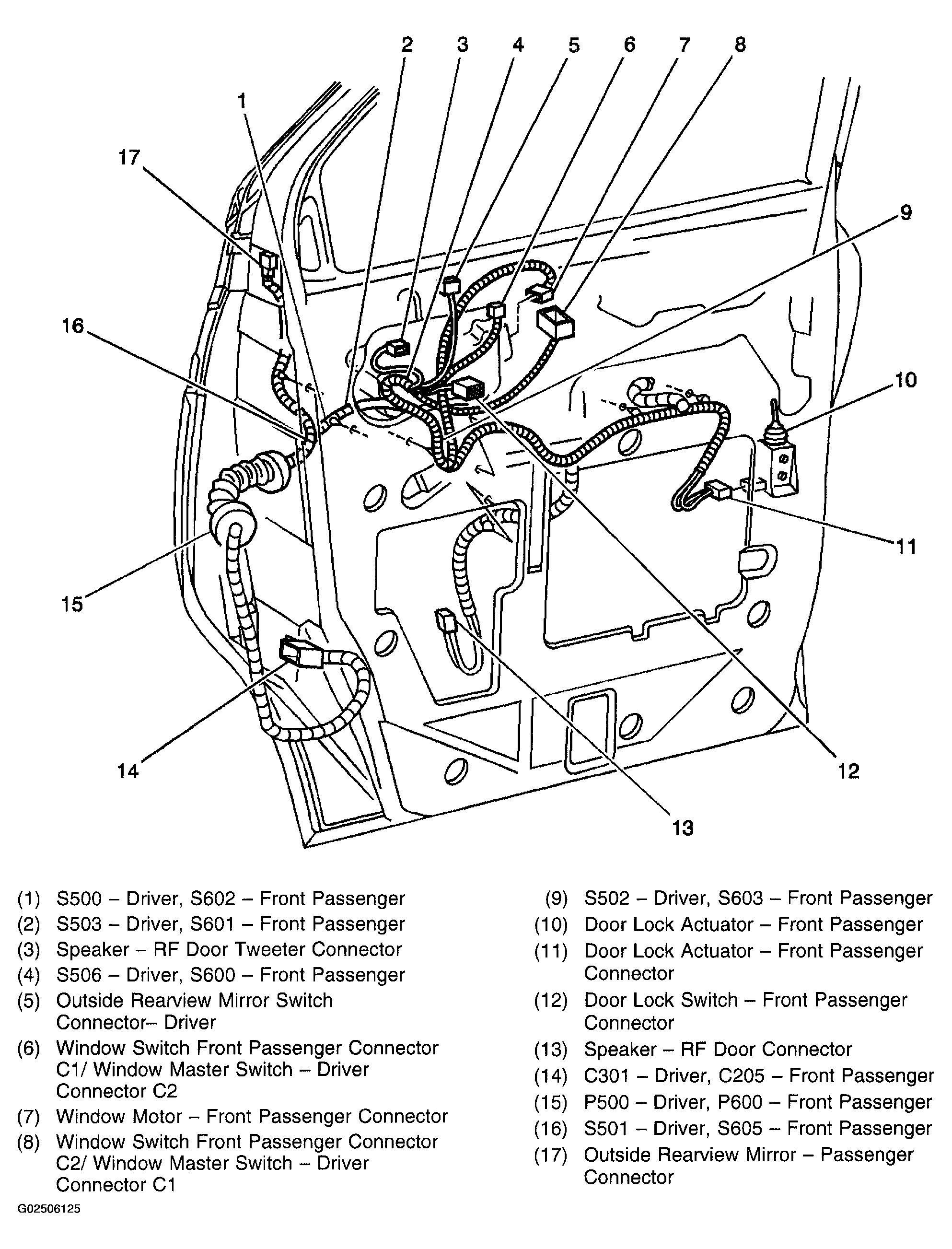

Fig 4: Front Door Wiring (Front Passenger Shown, Driver Opposite)
G02506125Courtesy of GENERAL MOTORS CORP.

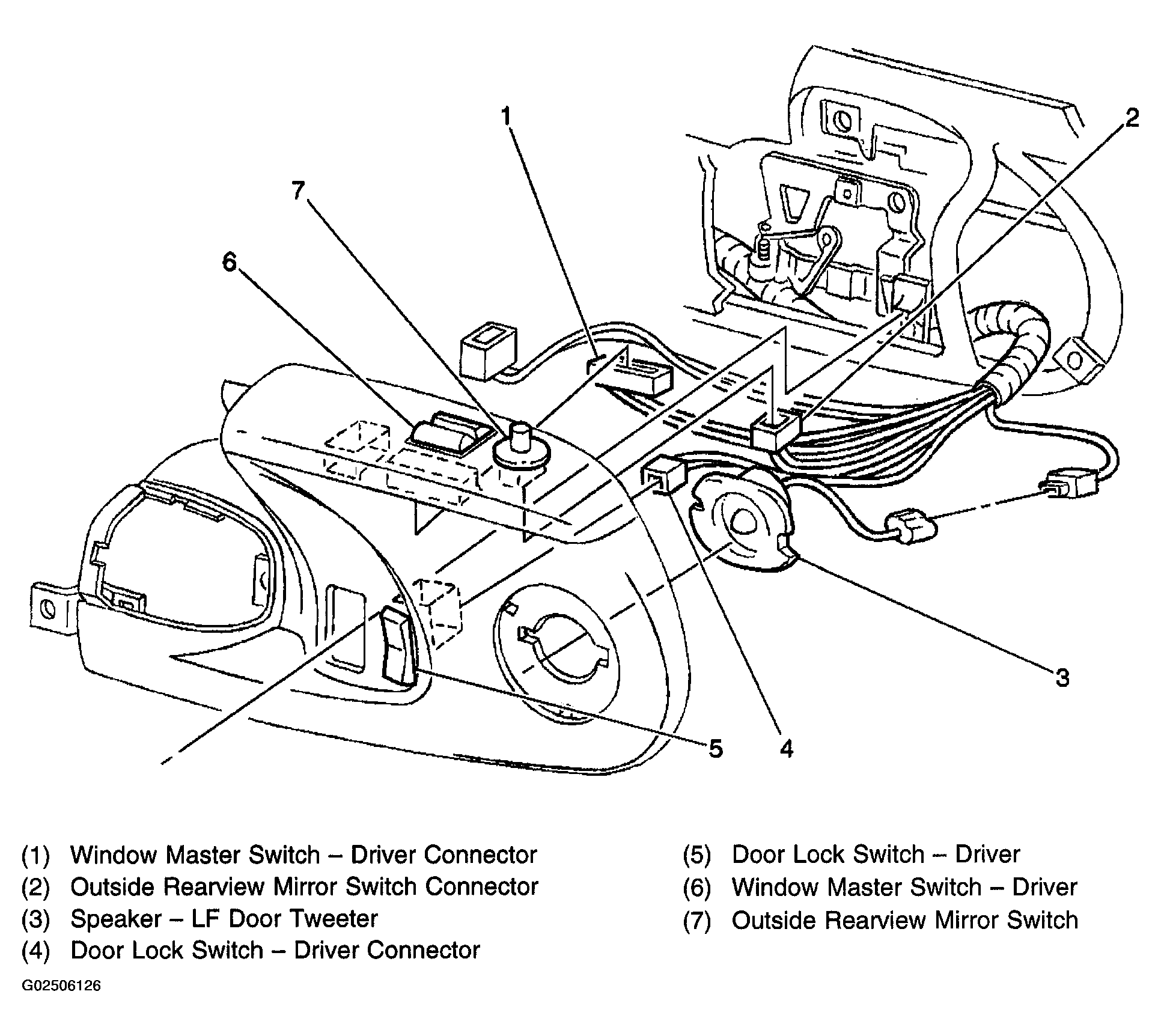

Fig 5: Door Control Switches - Driver
G02506126Courtesy of GENERAL MOTORS CORP.

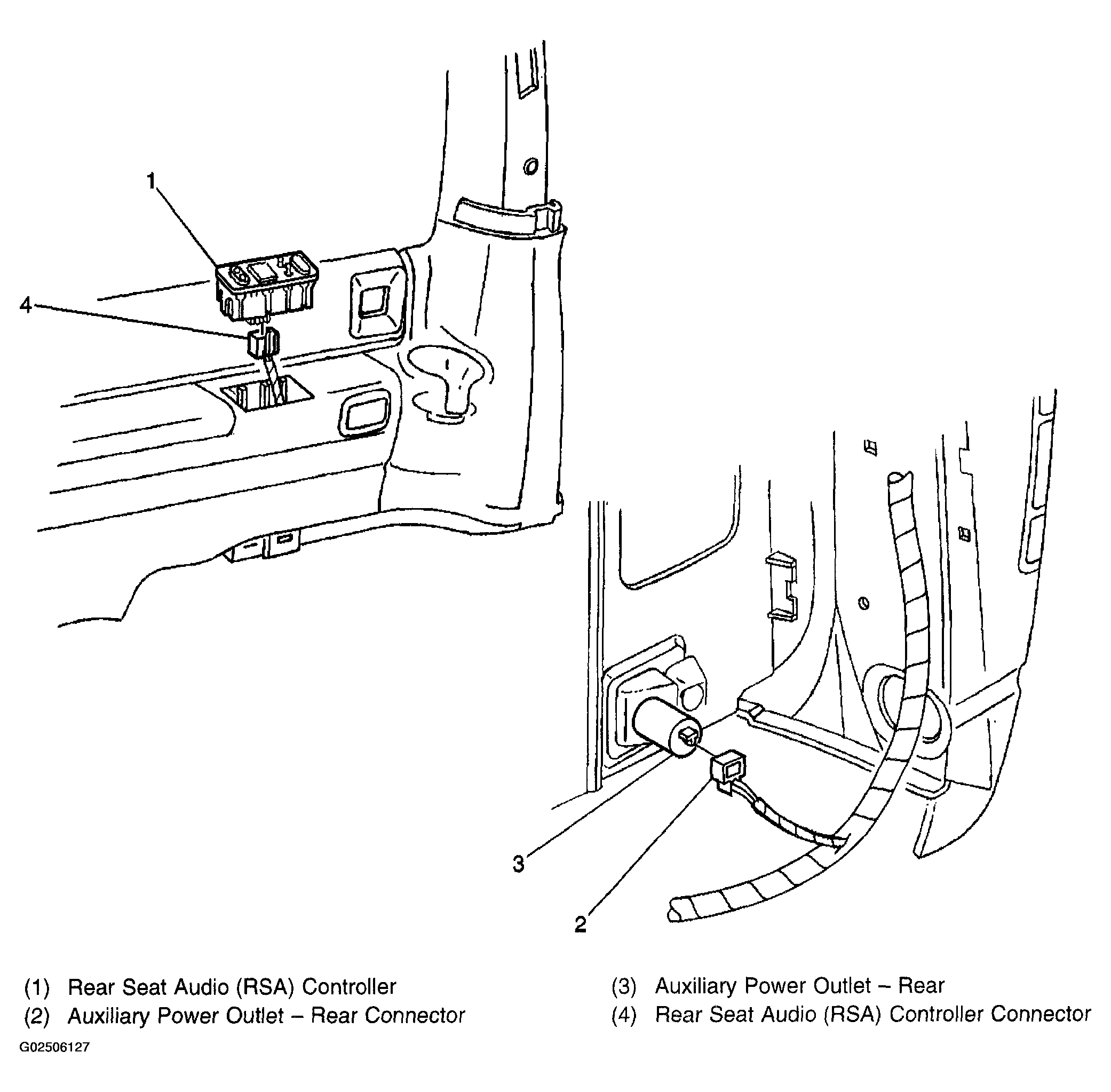

Fig 6: RSA Controller/Auxiliary Power Outlet - Rear Wiring
G02506127Courtesy of GENERAL MOTORS CORP.

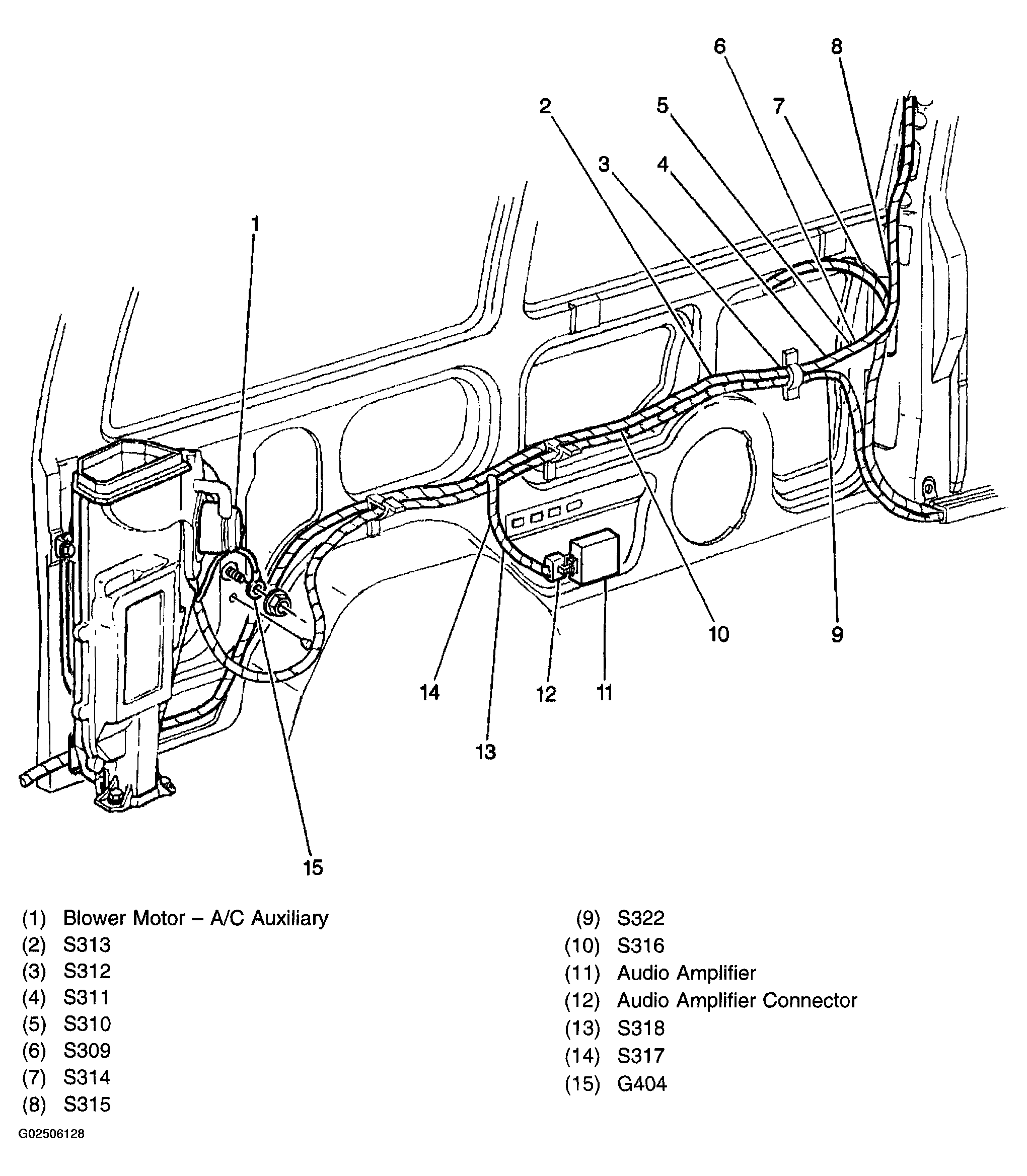

Fig 7: Left Rear Body Harness
G02506128Courtesy of GENERAL MOTORS CORP.

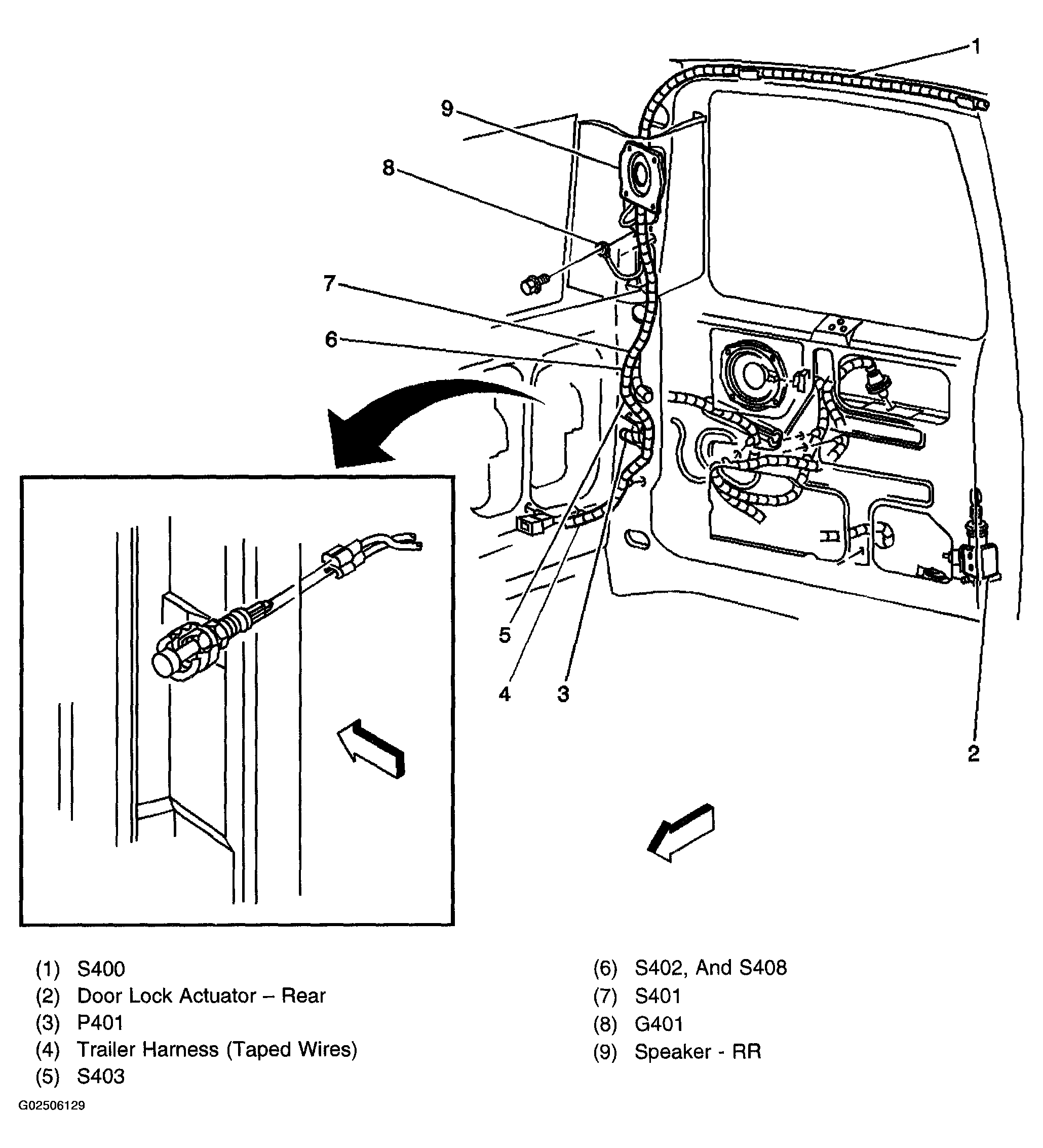

Fig 8: RH D Pillar Wiring
G02506129Courtesy of GENERAL MOTORS CORP.

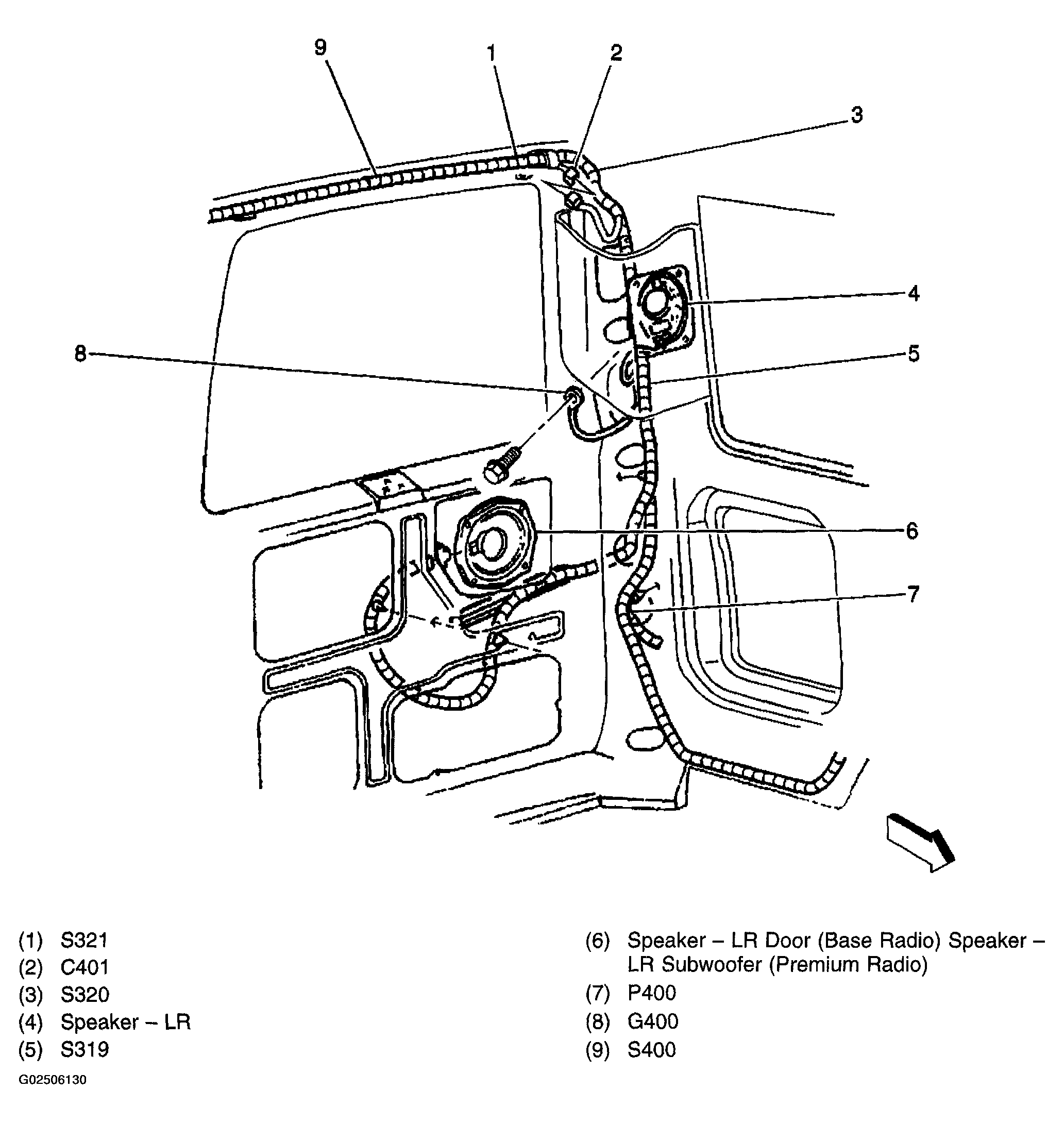

Fig 9: LH D Pillar Wiring
G02506130Courtesy of GENERAL MOTORS CORP.

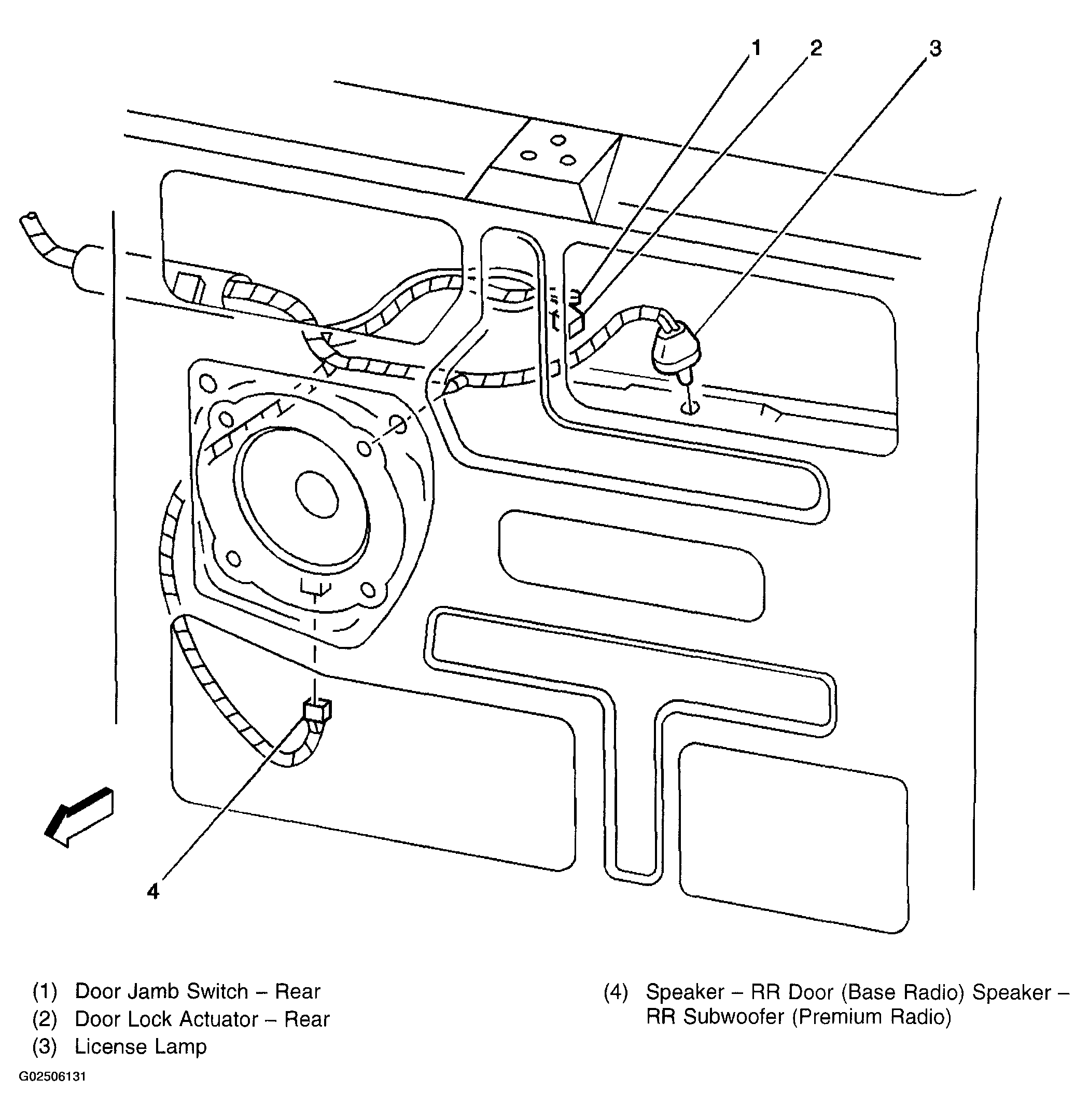

Fig 10: Door Location View - RR
G02506131Courtesy of GENERAL MOTORS CORP.
