Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

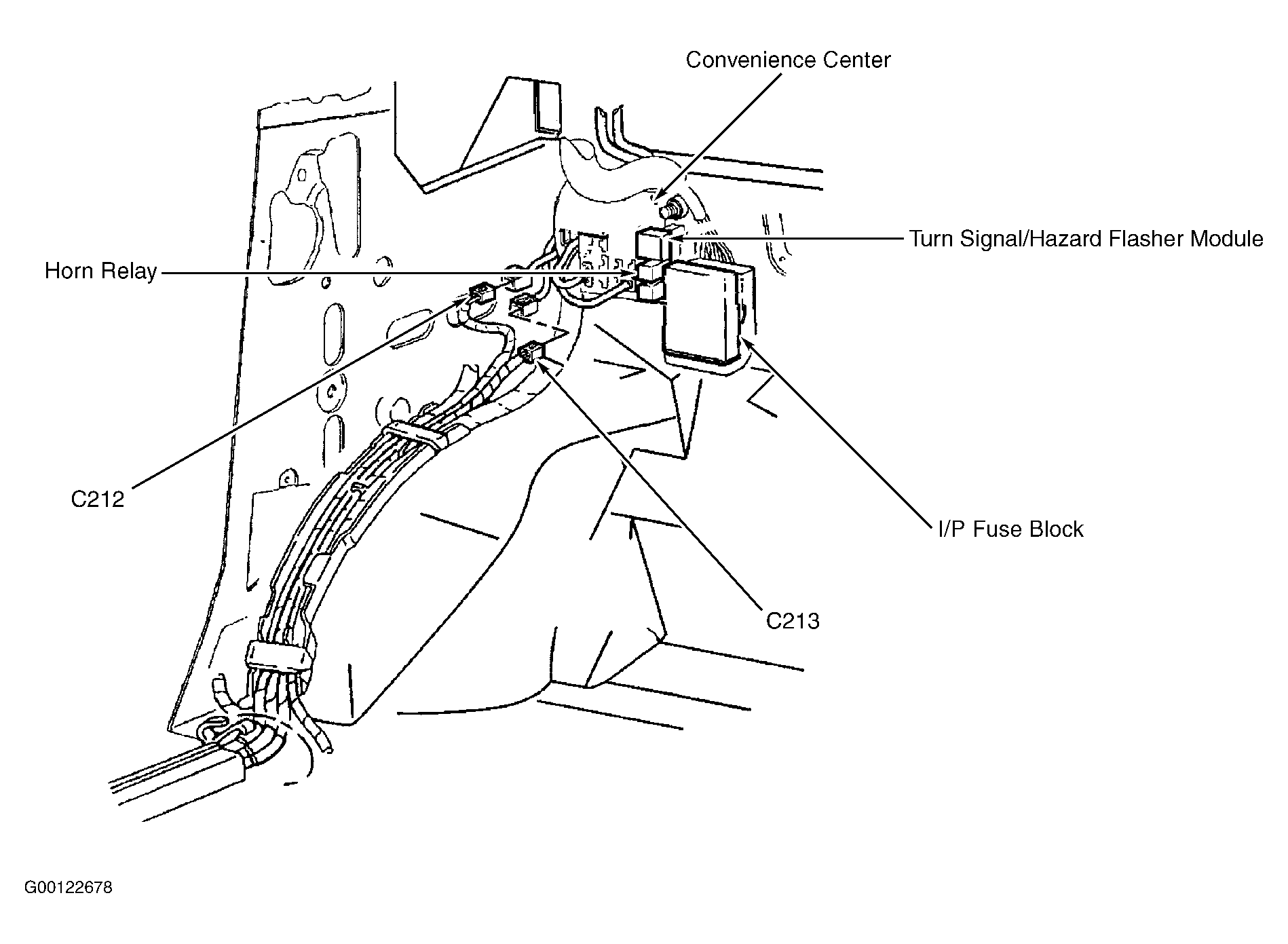

| Convenience Center | Left of I/P fuse block, by left kick panel. See Figure. |
| I/P Fuse Block | Behind left side of dash. See Figure. |
| Power Accessory Circuit Breaker | In I/P fuse block. |
| Relay Block No. 1 | Behind left side of dash, on DLC bracket. |
| Relay Block No. 2 | Behind left side of dash, on DLC bracket. |
| Underhood Fuse Block | On left side of firewall. |
| Windows Circuit Breaker | In I/P fuse block. |
