Installation Procedure

Install the guide adjuster bracket to the pillar.

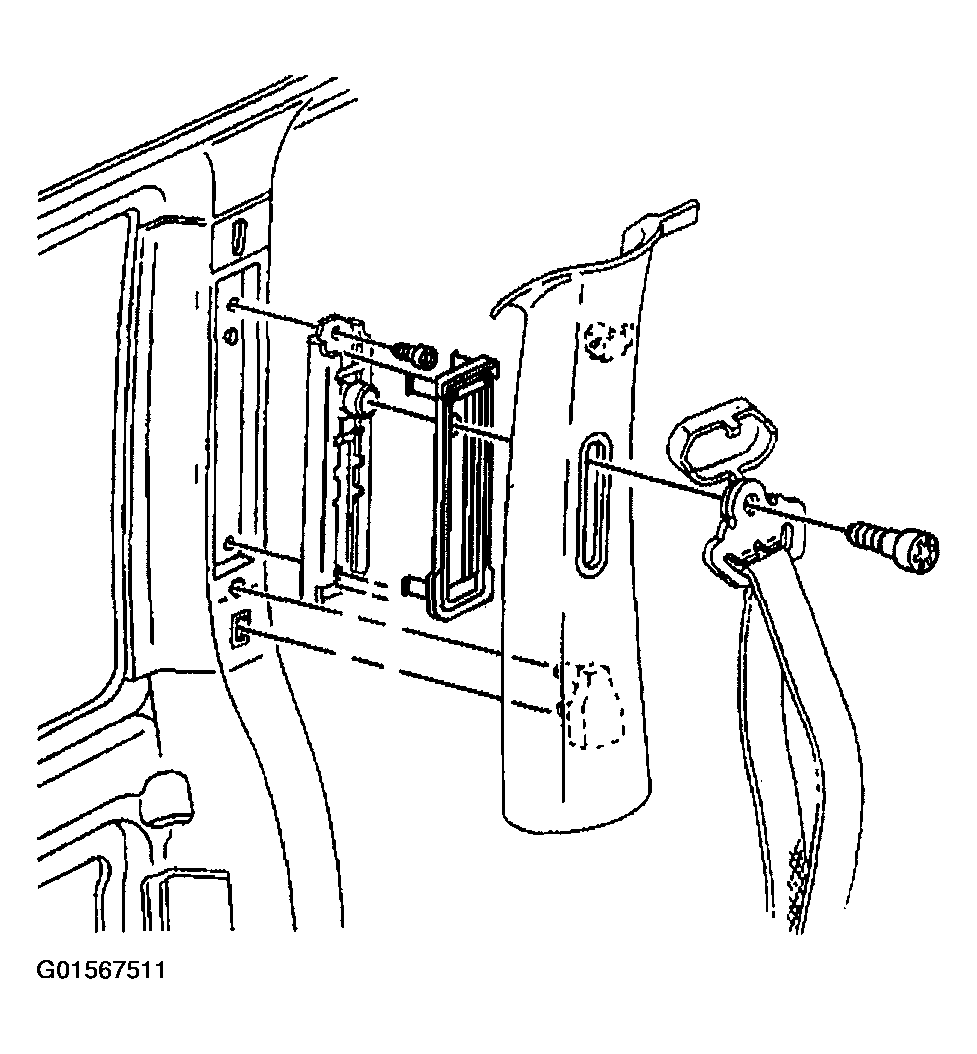

Fig 1: Shoulder Belt Guide Adjuster (Front)
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the 2 guide adjuster bracket retaining bolts to the pillar.
Tighten

Tighten the guide adjuster bracket retaining bolts to the pillar to 20 N.m (15 lb ft).
Install the left front side door lock pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- LF LOCK PILLAR in Interior Trim.
Install the right front side door lock pillar garnish molding. Refer to GARNISH MOLDING REPLACEMENT -- RF LOCK PILLAR in Interior Trim.
Install the shoulder belt retaining bolt to the guide adjuster bracket.
Tighten

Tighten the front seat shoulder belt retaining bolt to the guide adjuster bracket to 53 N.m (39 lb ft).
Install the cover for the front seat shoulder belt.
