Installation Procedure

Install the guide adjuster bracket to the pillar.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

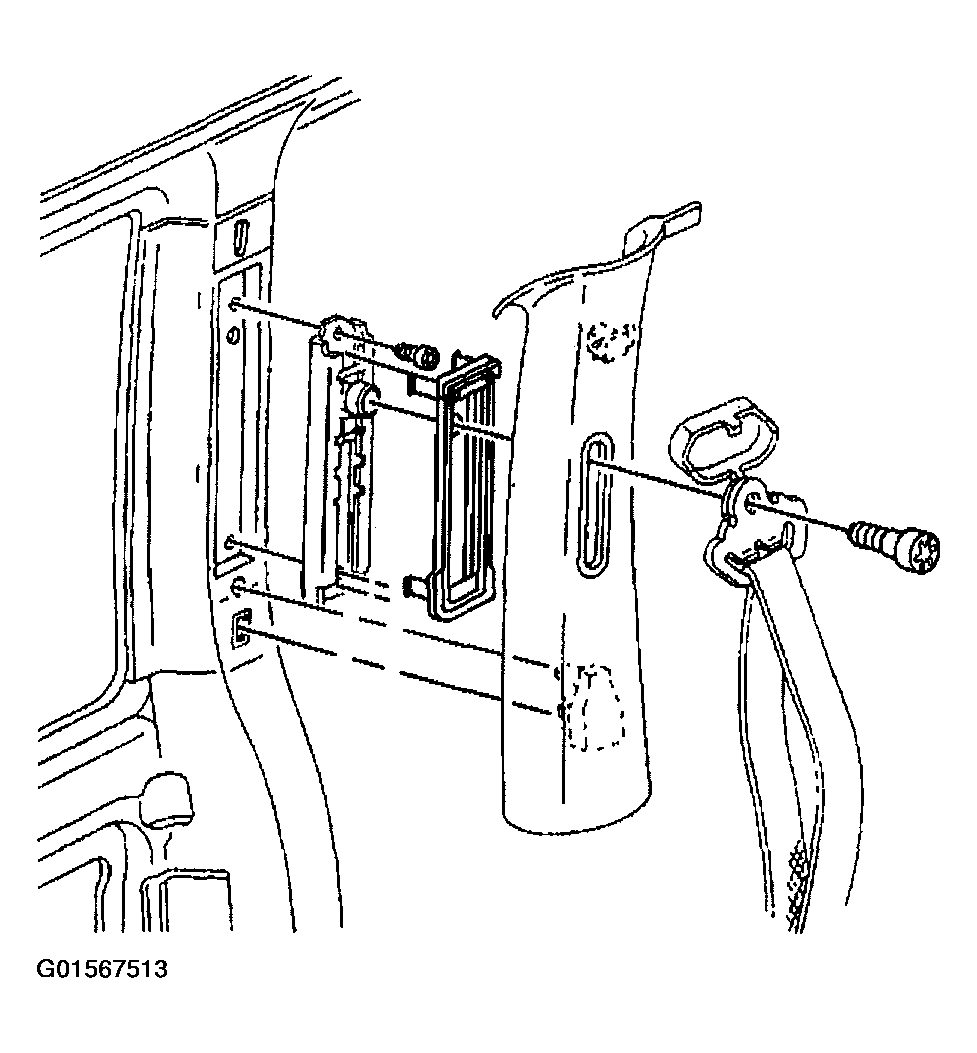

Fig 1: Shoulder Belt Guide Adjuster (Rear)
Courtesy of GENERAL MOTORS CORP.
Install the 2 guide adjuster bracket retaining bolts to the pillar.
Tighten

Tighten the guide adjuster bracket retaining bolts to the pillar to 20 N.m (15 lb ft).
Align the tabs of the C-pillar side garnish molding trim with the openings in the pillar and push inward until fully seated.
Install the shoulder belt retaining bolt to the guide adjuster bracket.
Tighten

Tighten the shoulder belt retaining bolt to the guide adjuster bracket to 53 N.m (39 lb ft).
Close the cover on the rear seat shoulder belt bolt.
