Fuse Block - I/P Wire Entry

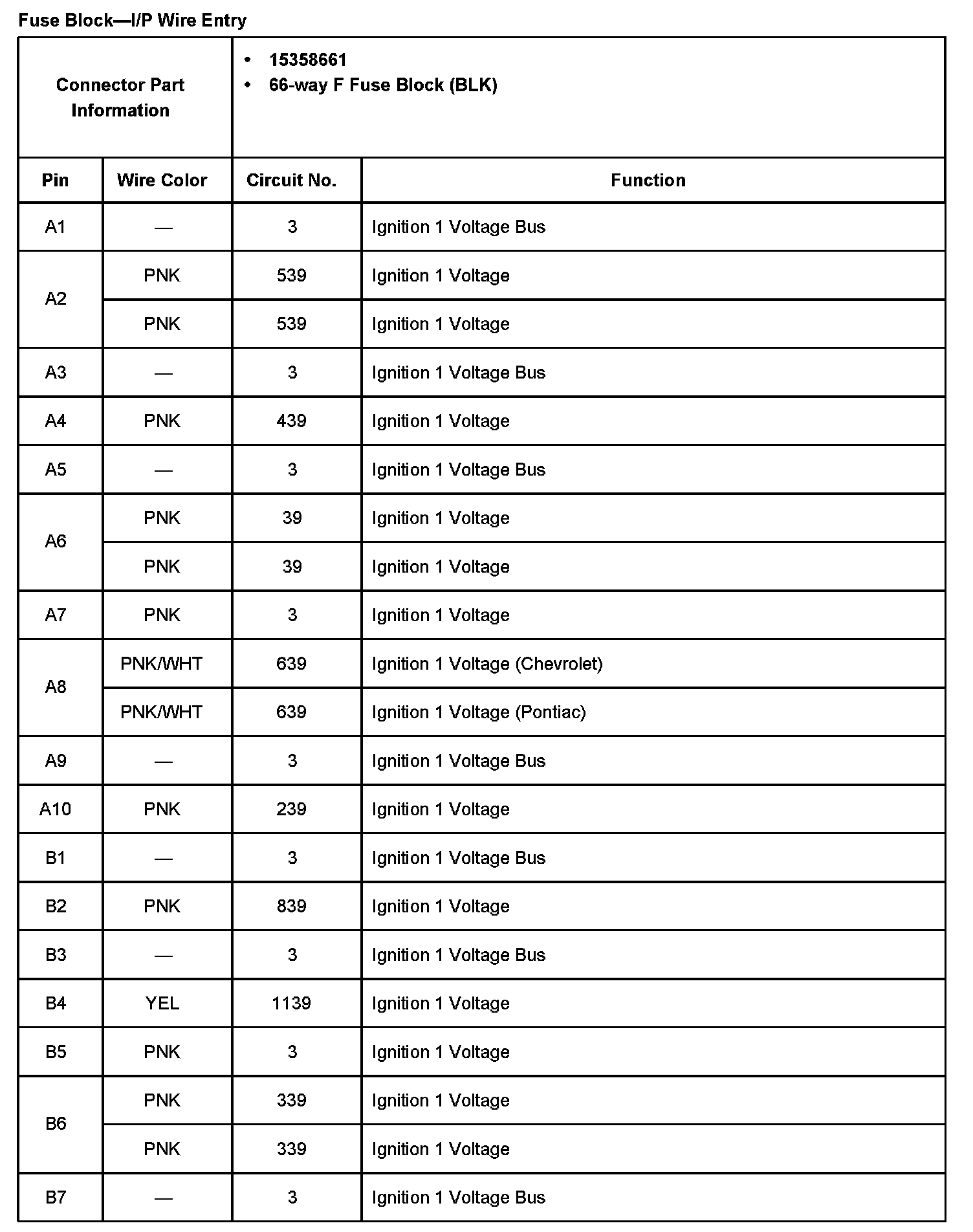

Fuse Block - I/P Wire Entry Part 1:

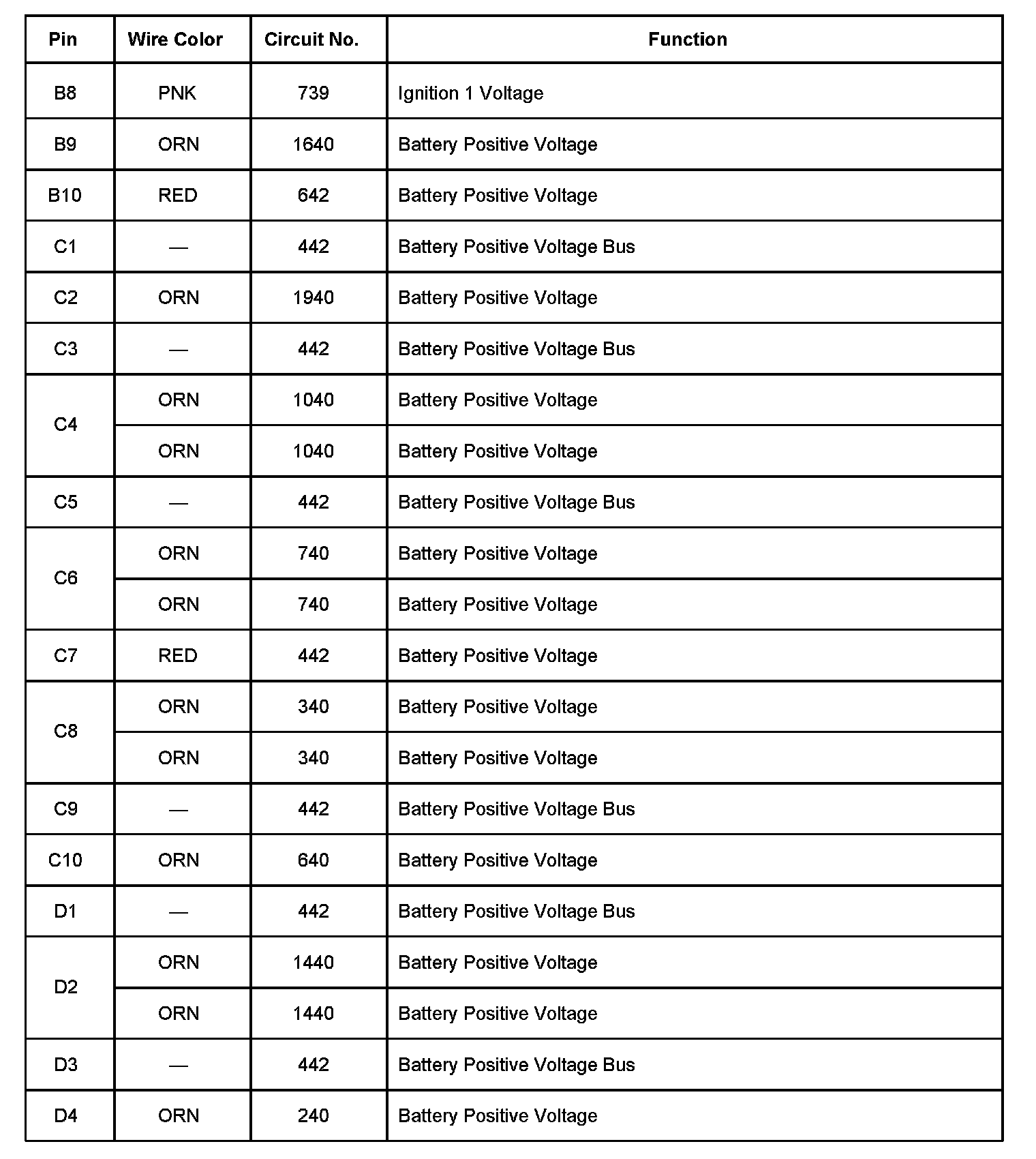

Fuse Block - I/P Wire Entry Part 2:

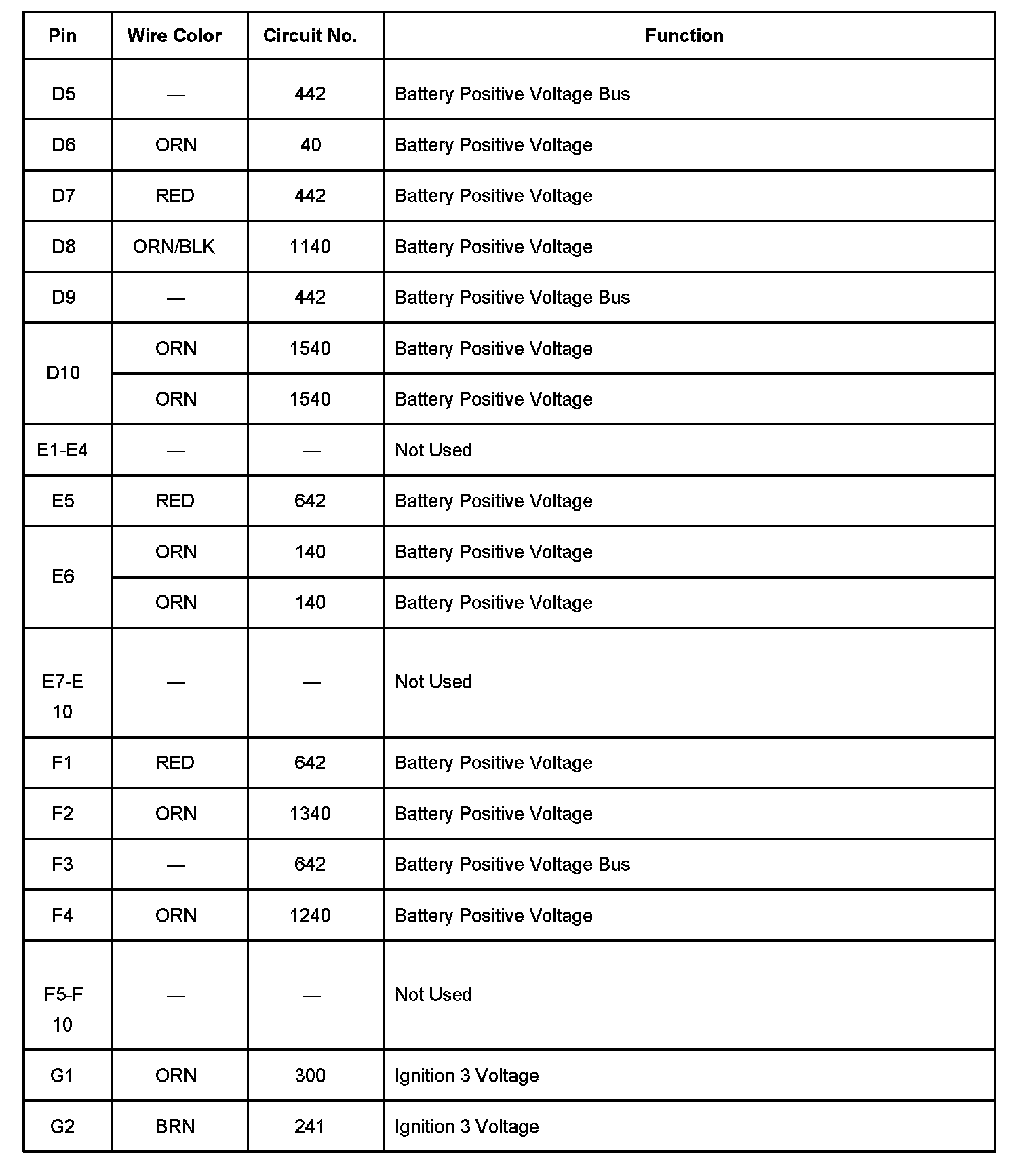

Fuse Block - I/P Wire Entry Part 3:

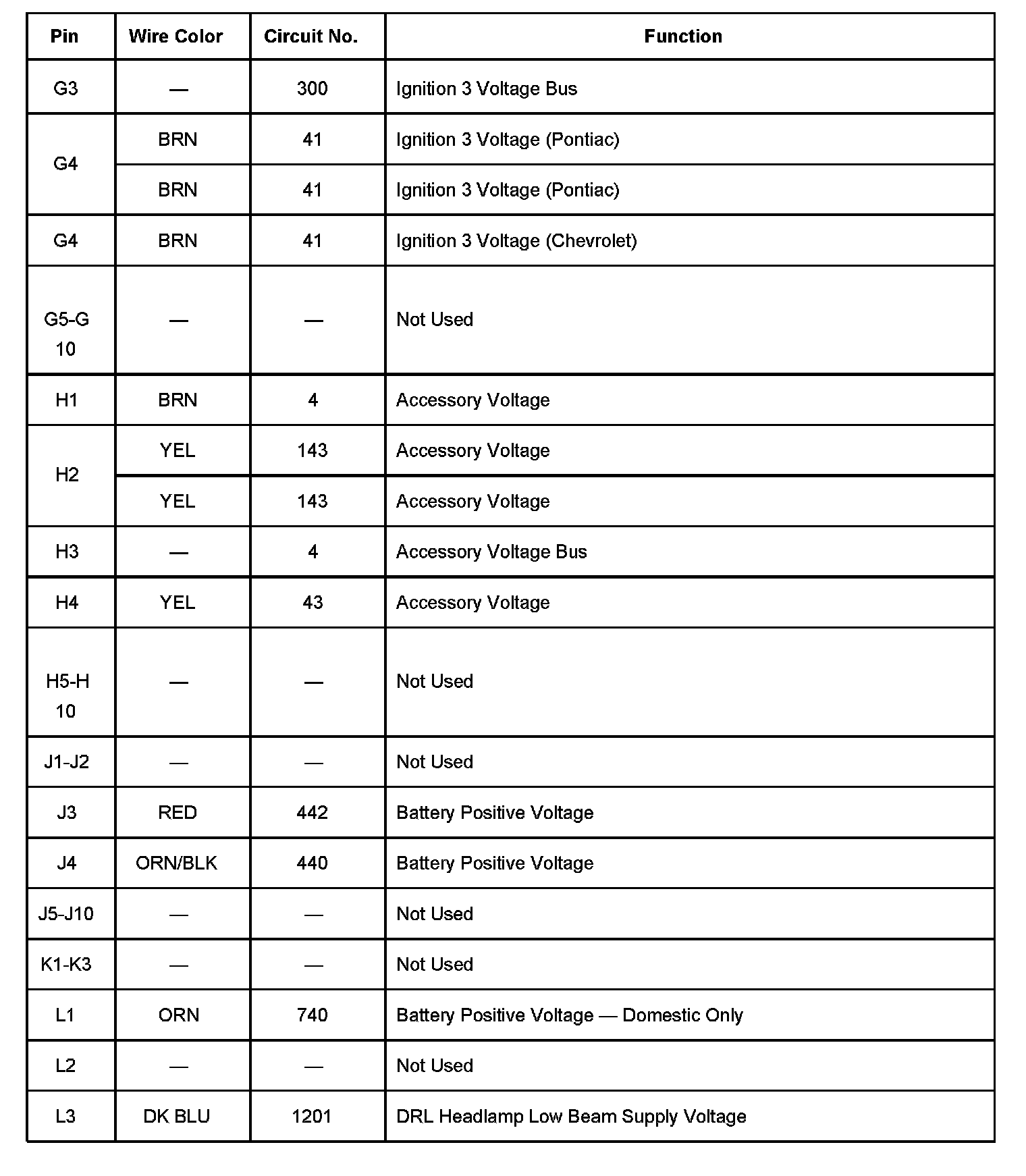

Fuse Block - I/P Wire Entry Part 4:



Fuse Block - I/P Wire Entry Part 5:
