Removal Procedure

  1. Remove the front door trim plate. Refer to Door Trim Plate Replacement - Front .
  2. Remove the electrical connector (5) from the power door lock switch (7).
  3. Release the retaining tabs on the power door lock switch (7).
  4. Remove the power door lock switch (7) from the front door trim plate (1).

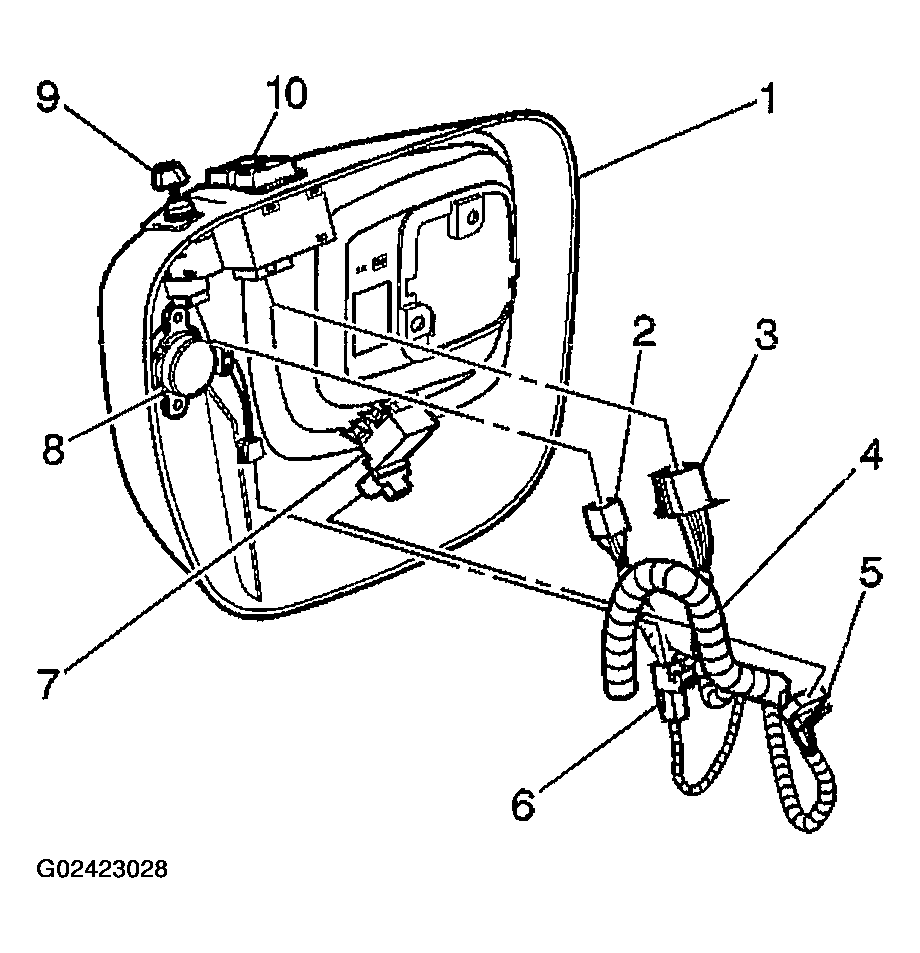

    Fig 1: Removing Power Door Lock Switch
    G02423028Courtesy of GENERAL MOTORS CORP.
