ABS Component Views

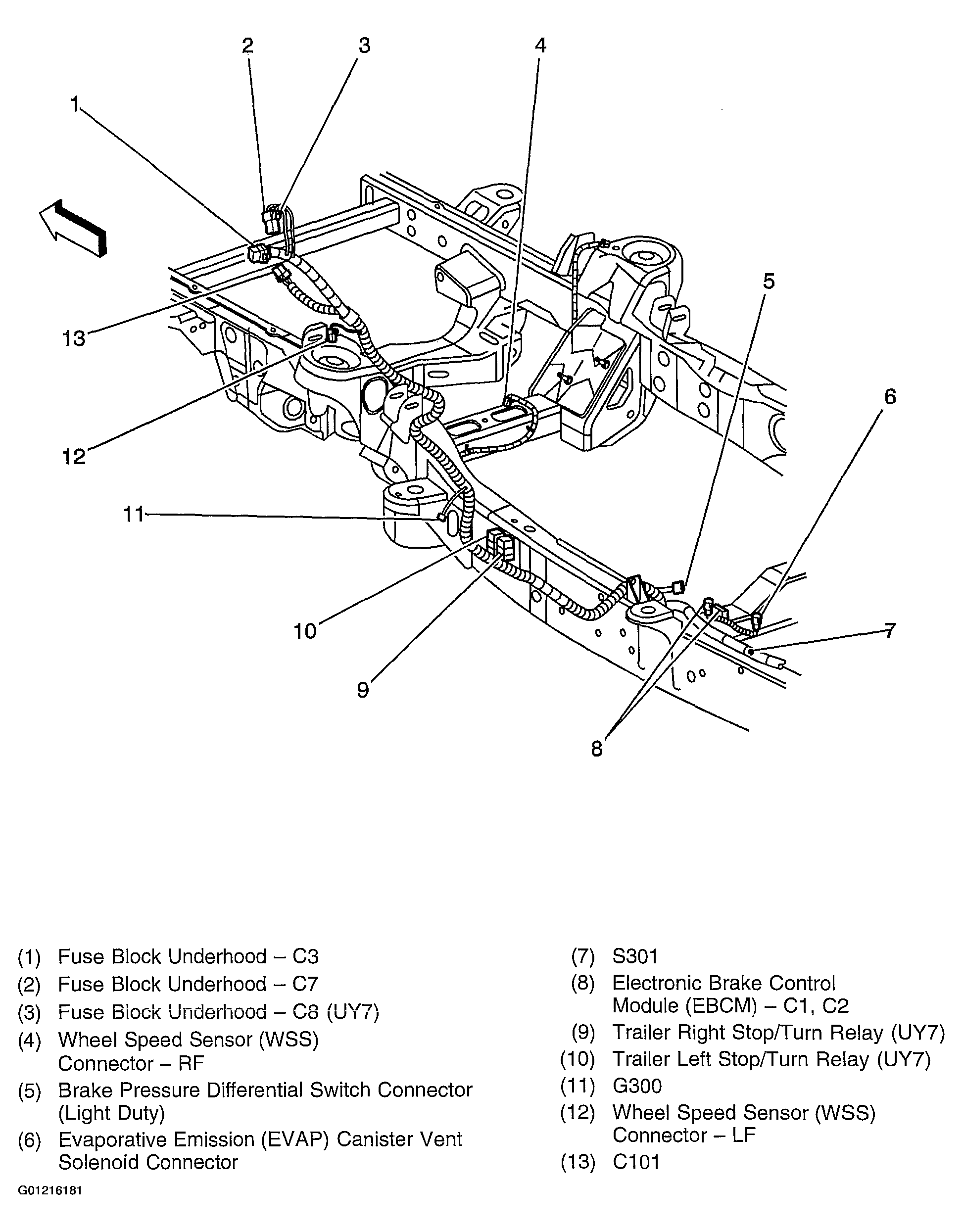

Fig 1: Chassis Harness Routing (Passenger/Cargo)
G01216181Courtesy of GENERAL MOTORS CORP.

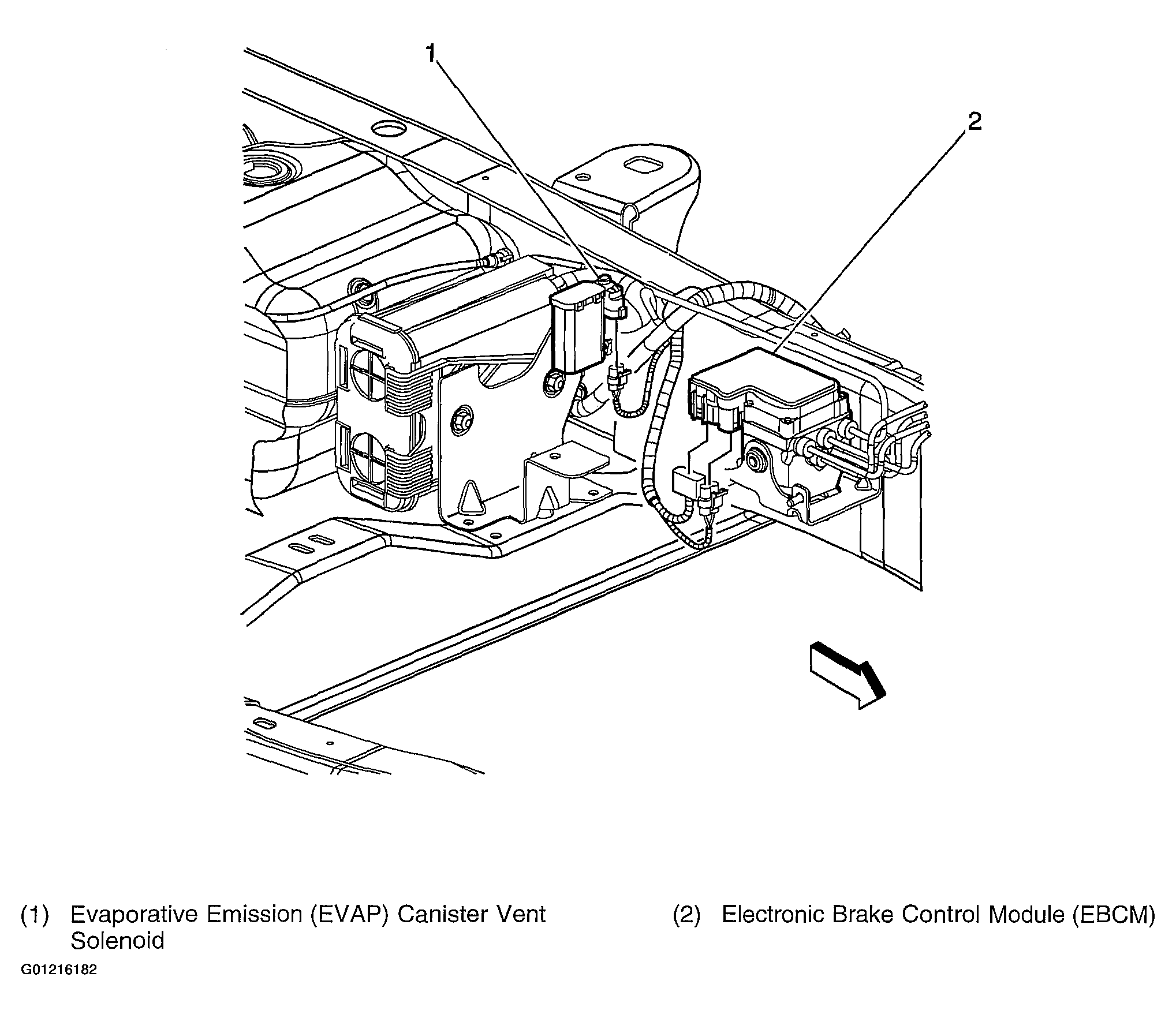

Fig 2: Left Side Frame
G01216182Courtesy of GENERAL MOTORS CORP.
