ABS Connector End Views

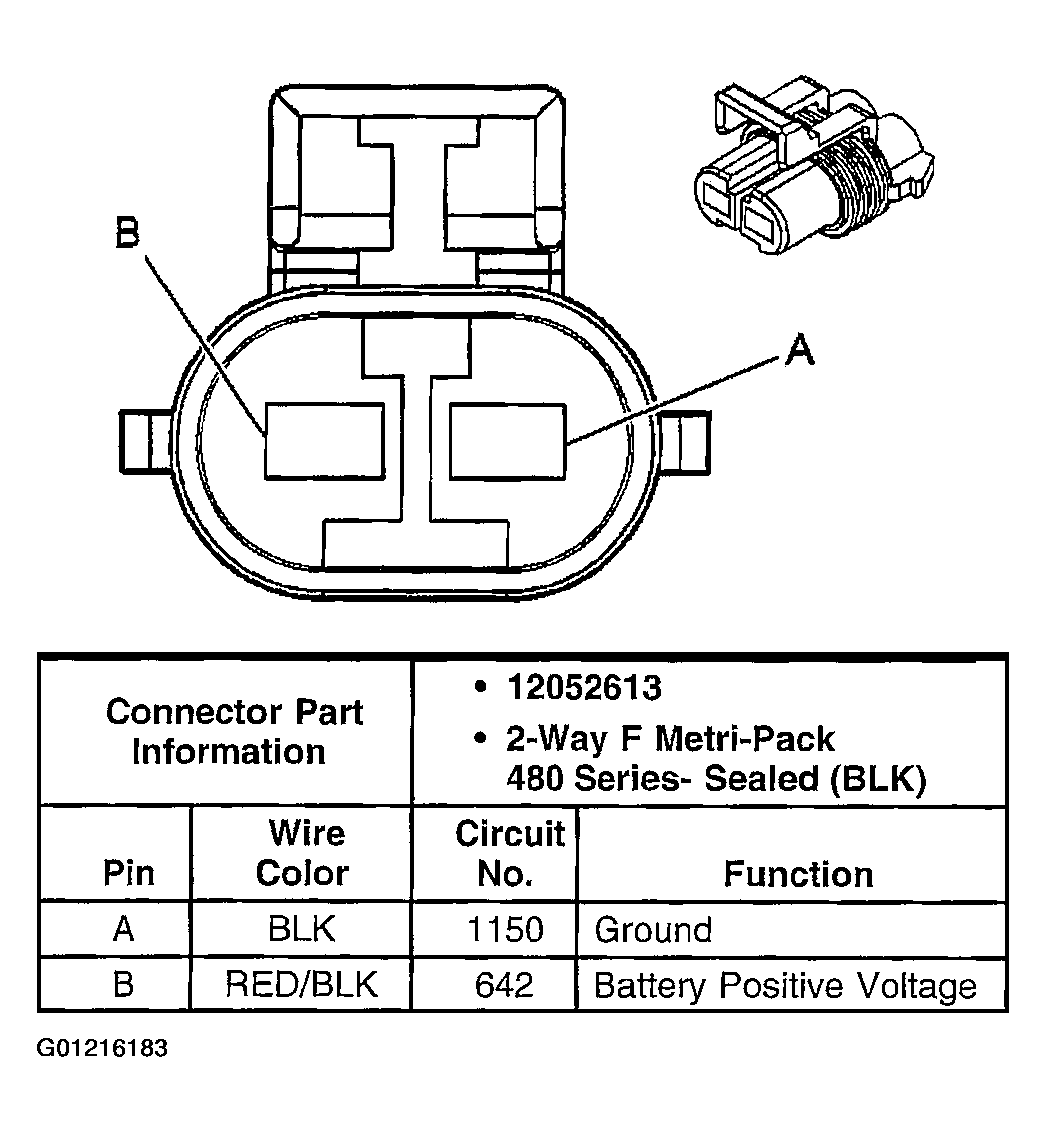

Fig 1: Electronic Brake Control Module (EBCM) C1

Courtesy of GENERAL MOTORS CORP.

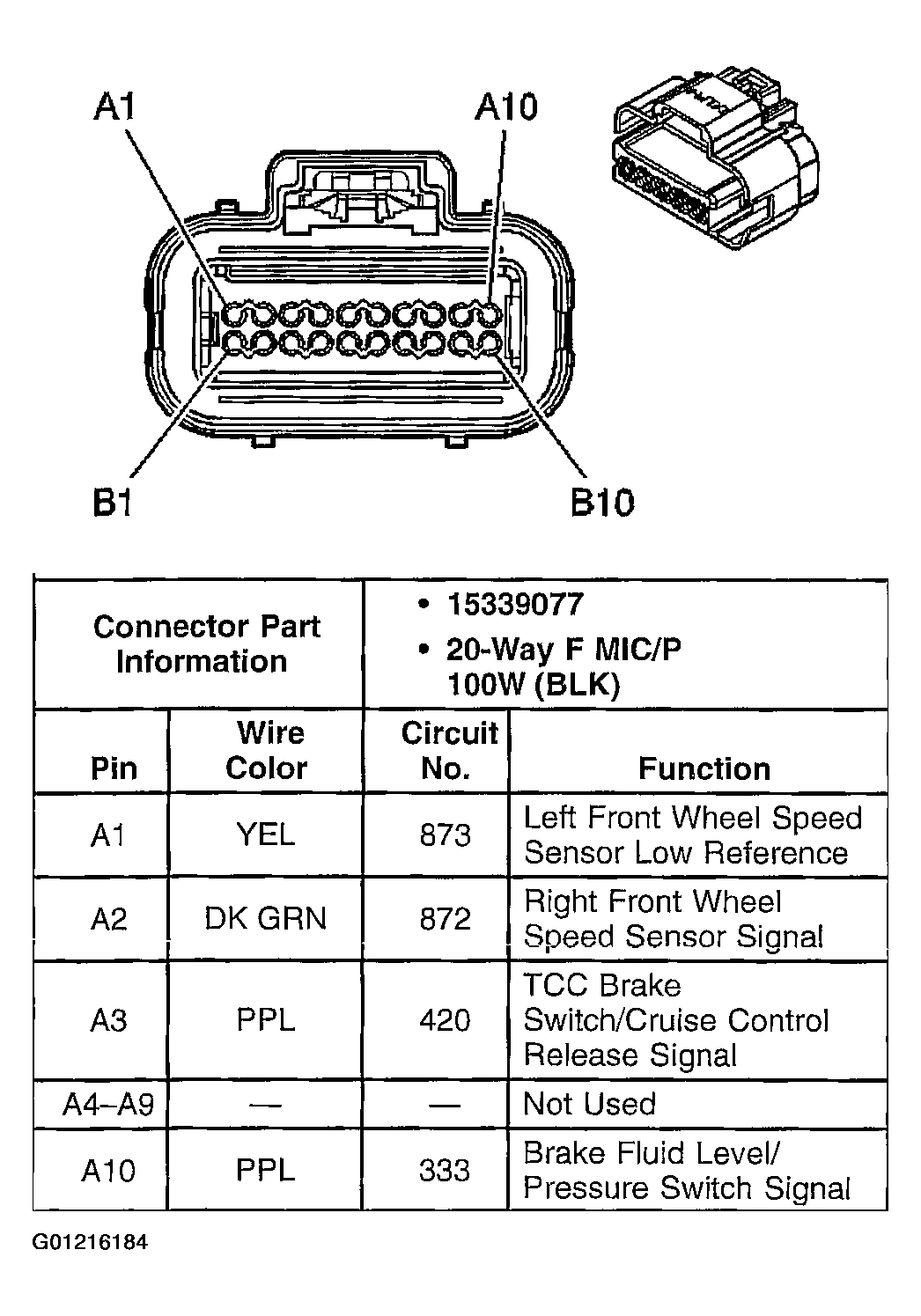

Fig 2: Electronic Brake Control Module (EBCM) C2 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

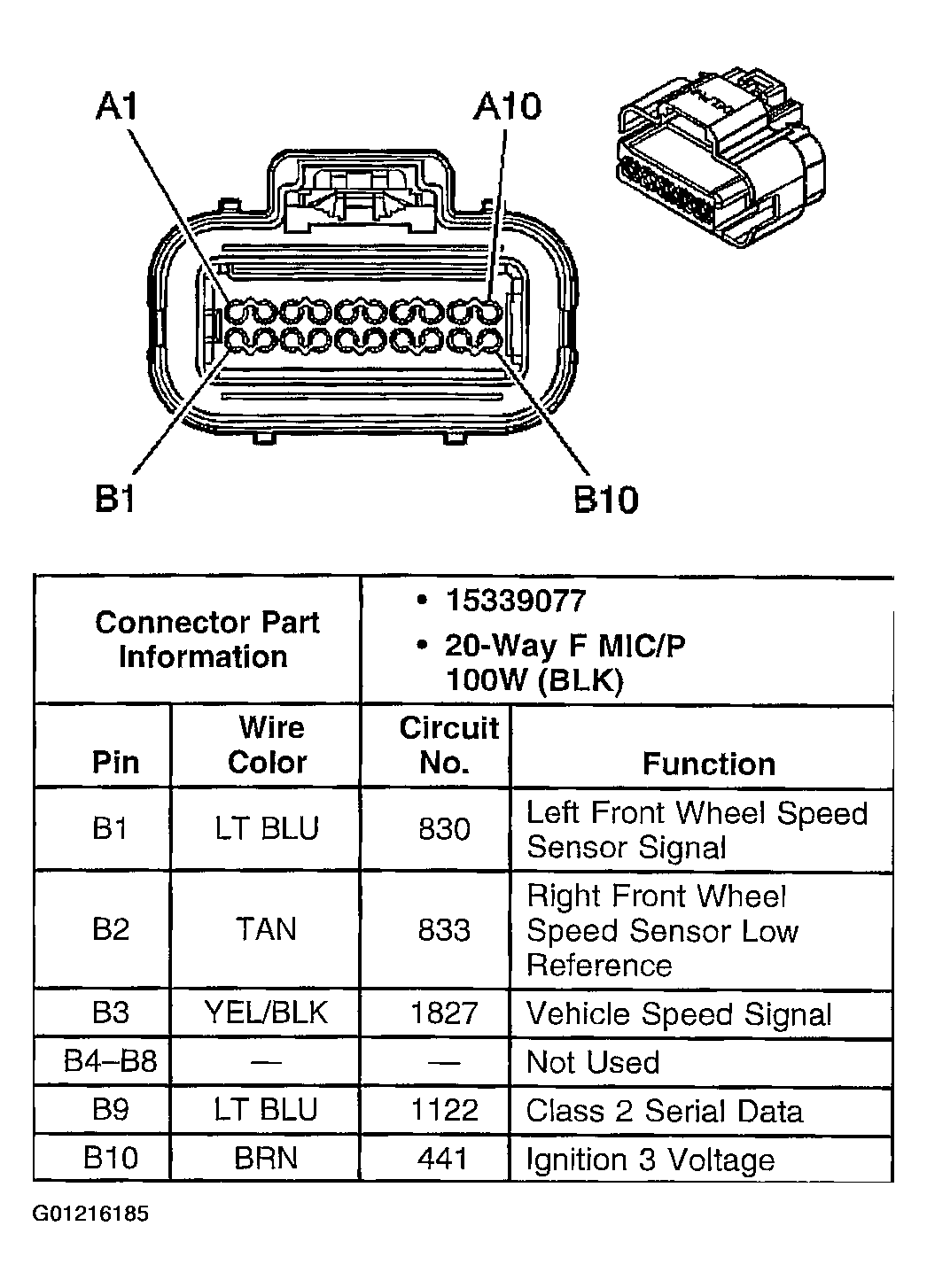

Fig 3: Electronic Brake Control Module (EBCM) C2 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

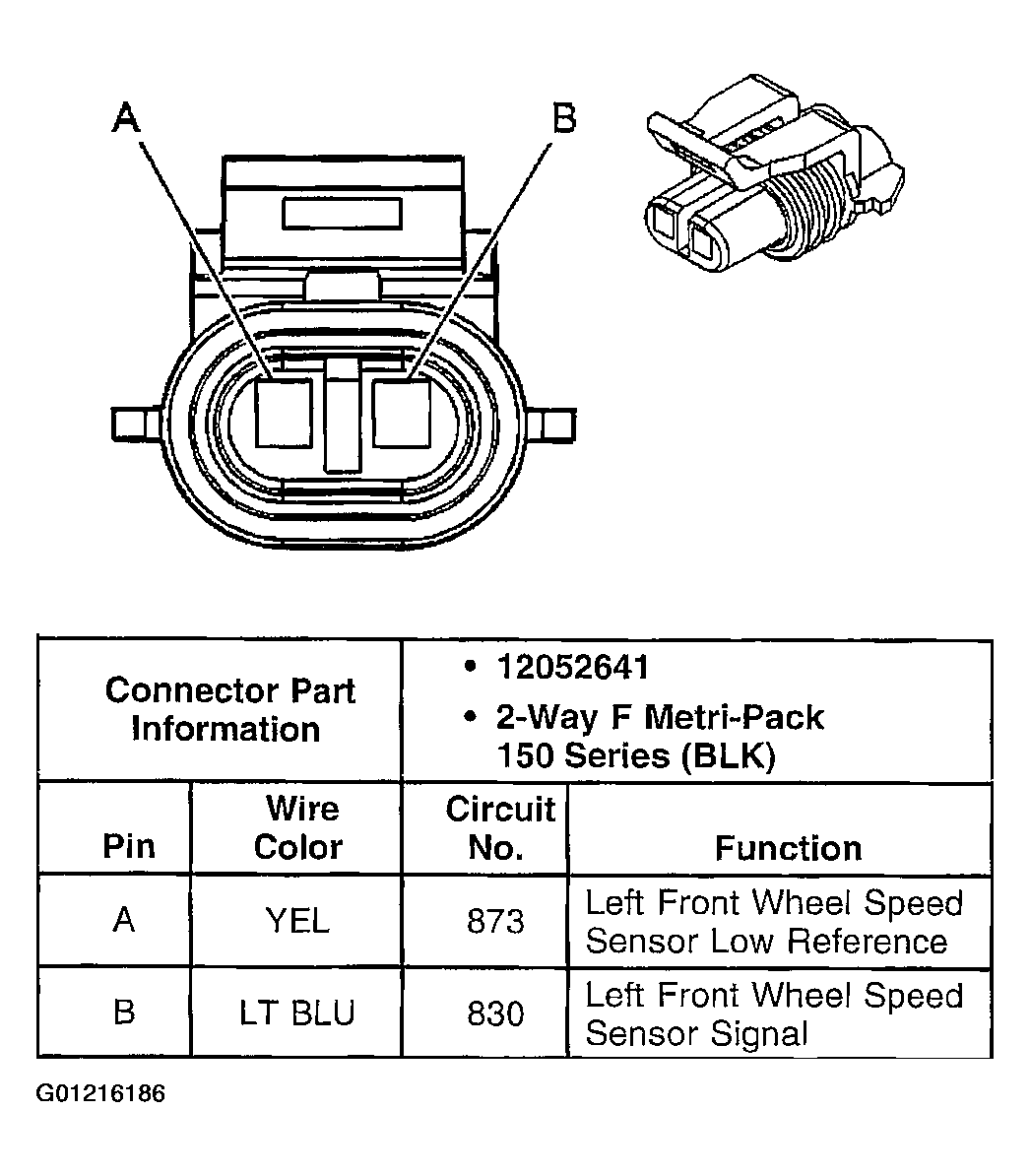

Fig 4: Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

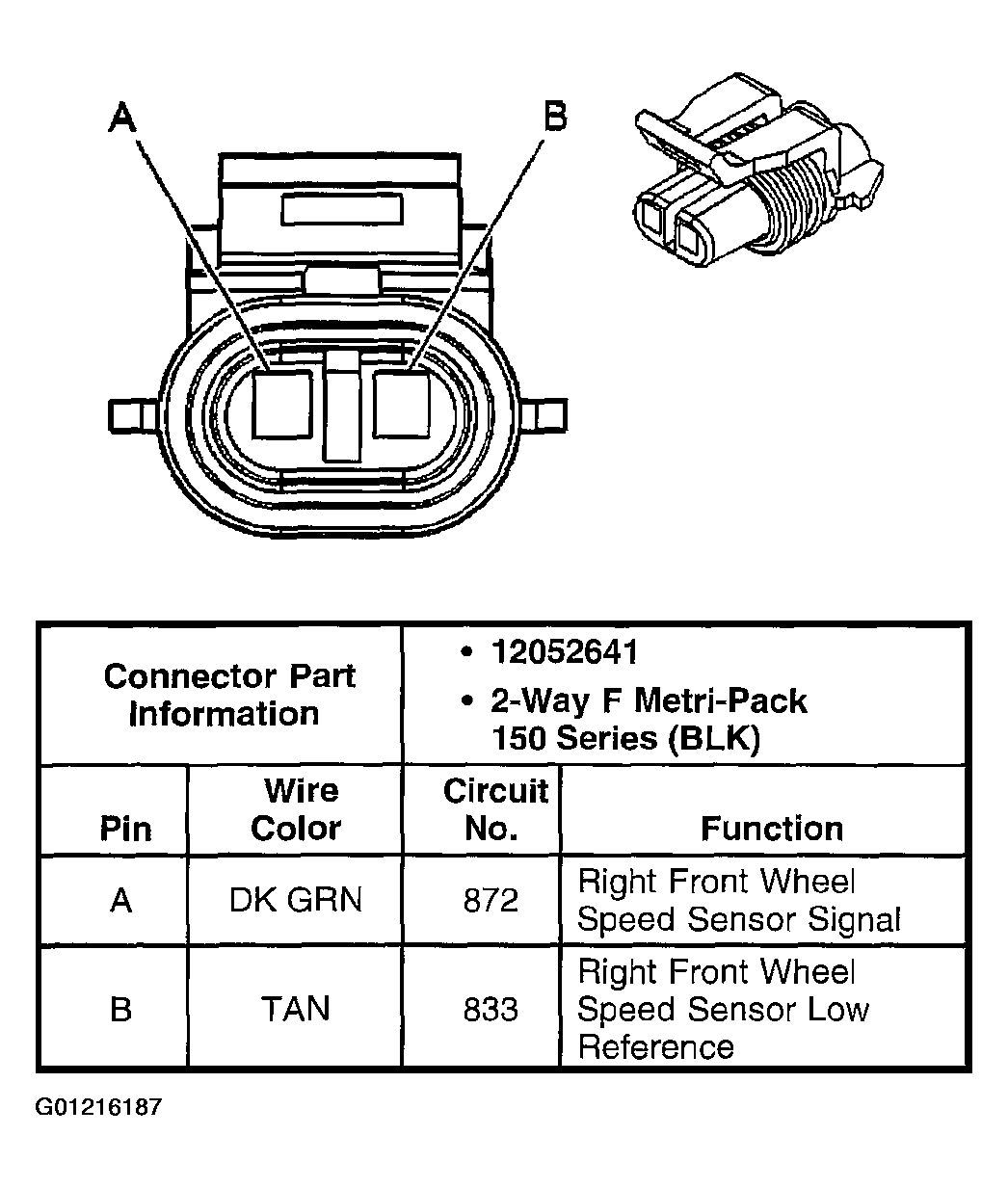

Fig 5: Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.
