Installation Procedure
WARNING:
Before servicing any electrical component, the ignition key must be in the OFF or LOCK position and all electrical loads must be OFF, unless instructed otherwise in these procedures. If a tool or equipment could easily come in contact with a live exposed electrical terminal, also disconnect the negative battery cable. Failure to follow these precautions may cause personal injury and/or damage to the vehicle or its components.
NOTE:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Important : Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

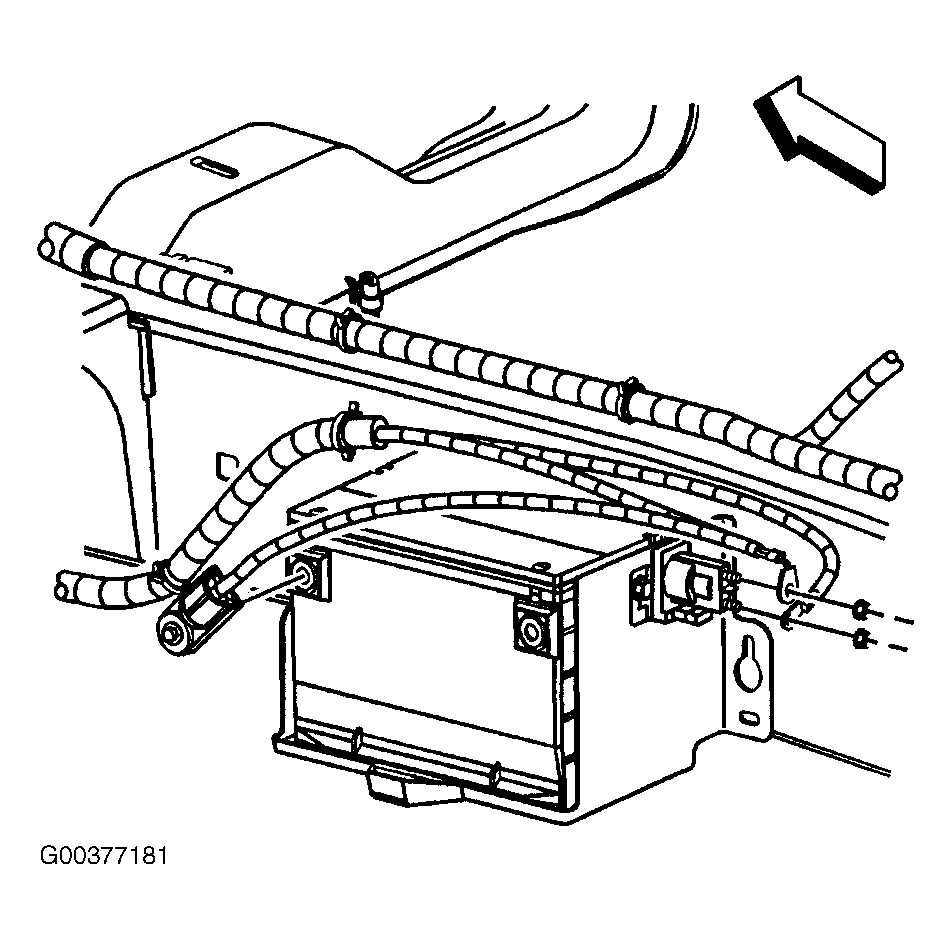

- Install the battery ground (negative) cable and bolt to the battery. See Figure.
Tighten
Tighten the battery terminal bolt to 17 N.m (13 lb ft).
Important : Clean any existing corrosion from the battery terminal bolt flange and the battery cable end.

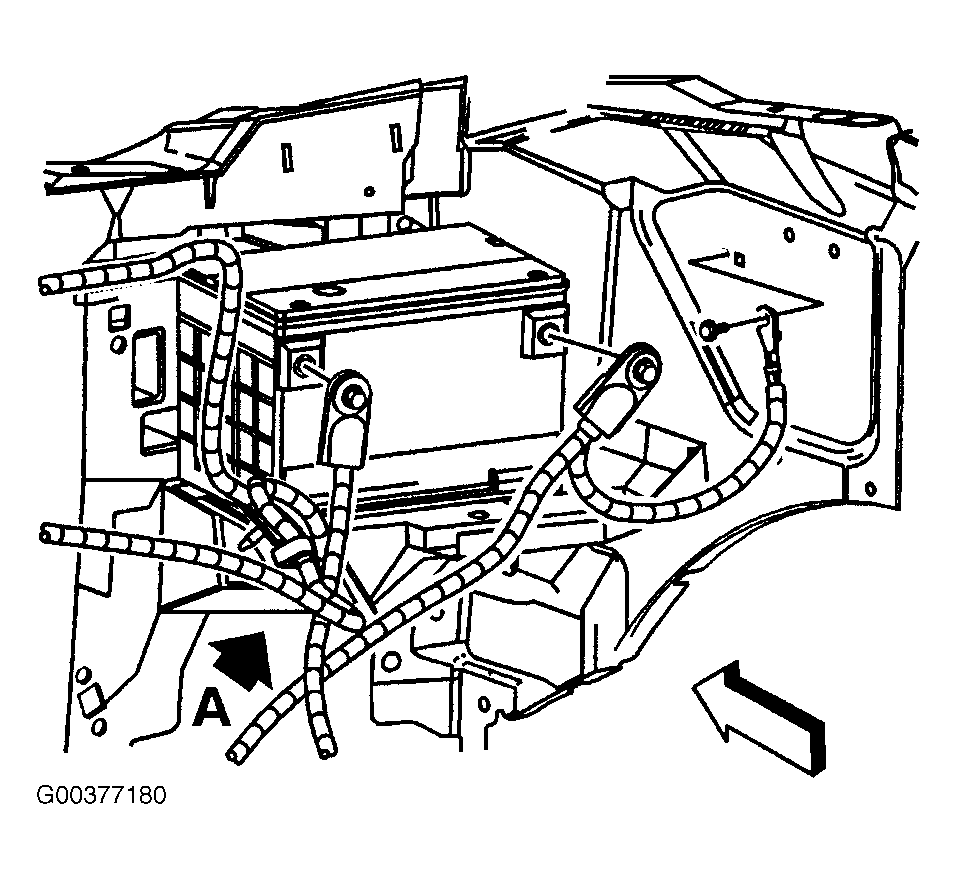

- Install the battery ground (negative) cable and bolt to the battery for the auxiliary battery. See Figure.
Tighten
Tighten the battery terminal bolt to 17 N.m (13 lb ft).
