Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Snap the jounce bumper to the mounting cup (4WD 15 Series).

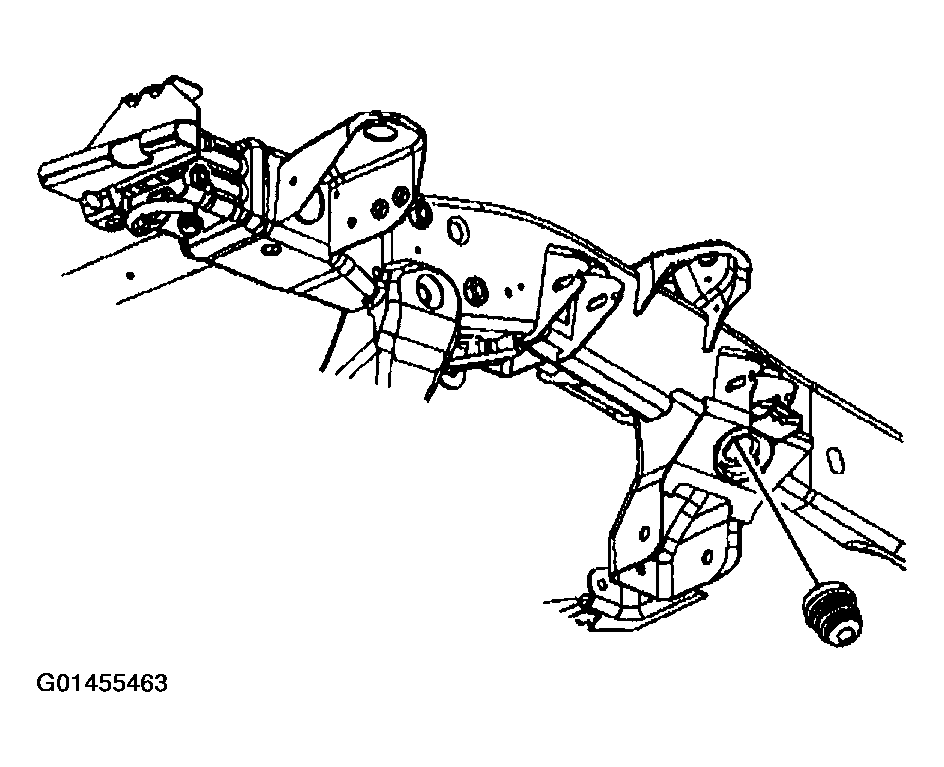

Fig 1: Snapping Jounce Bumper From Mounting Cup
Courtesy of GENERAL MOTORS CORP.
Install the jounce bumper (All 25/35 Series and RWD 15 Series with coil spring).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the nut to the jounce bumper stud.
Tighten

Tighten the nut to 30 N.m (22 lb ft).
Remove the safety stands.
Lower the vehicle.

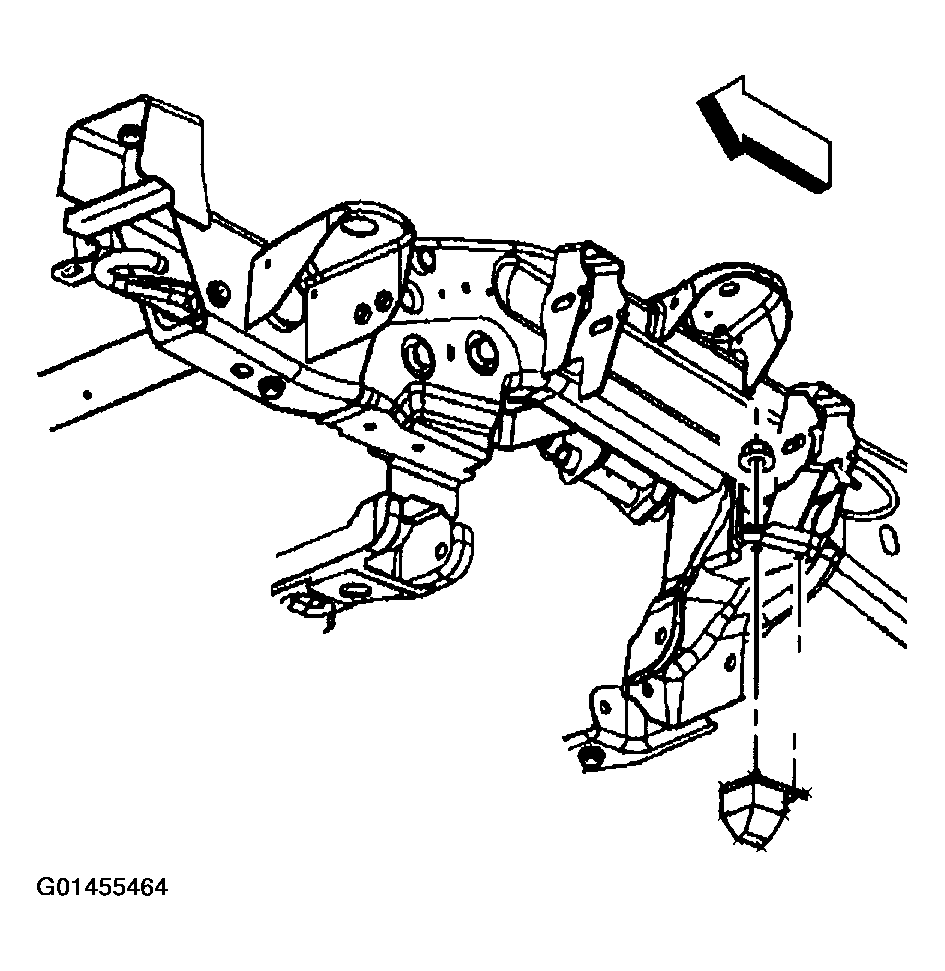

Fig 2: Installing Nut To Jounce Bumper Stud
Courtesy of GENERAL MOTORS CORP.
