Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Unsnap the jounce bumper from the mounting cup (4WD 15 Series).

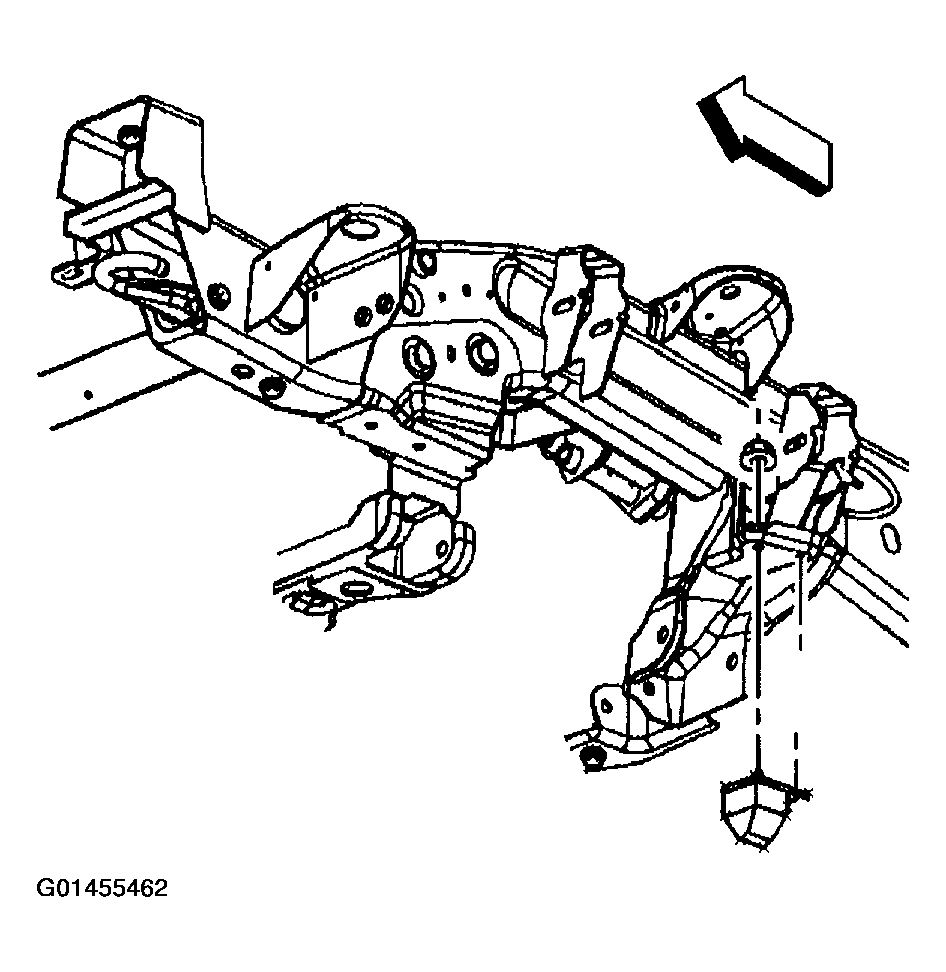

Fig 1: Unsnapping Jounce Bumper From Mounting Cup
Courtesy of GENERAL MOTORS CORP.
Remove the nut from the jounce bumper stud (All 25/35 Series and RWD 15 Series with coil spring).
Remove the jounce bumper.

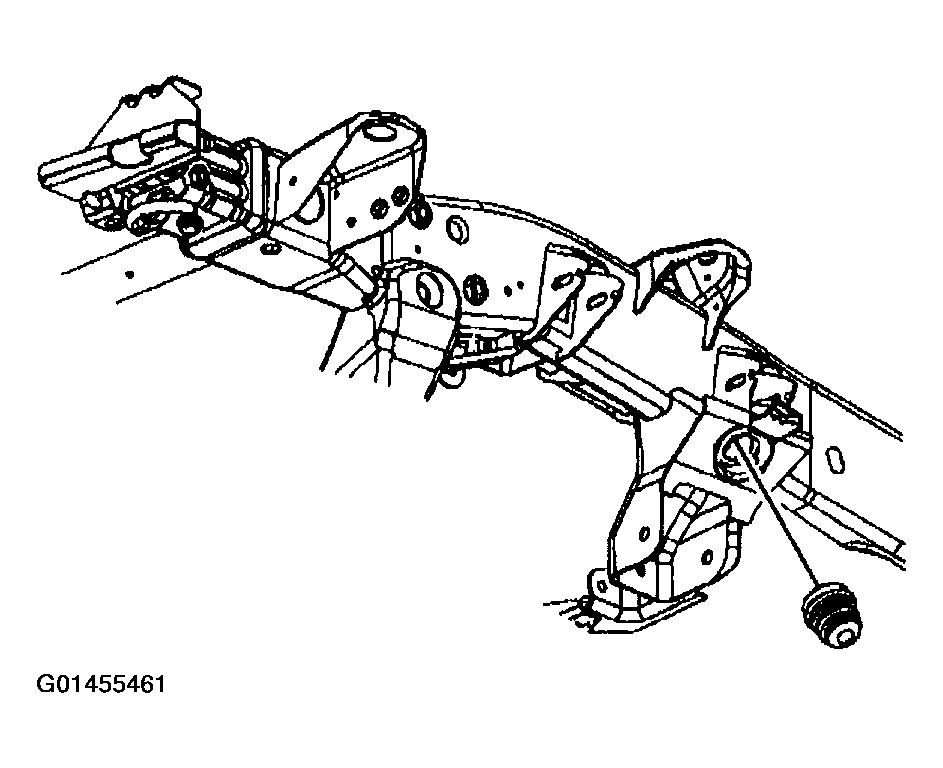

Fig 2: Removing Nut From Jounce Bumper Stud
Courtesy of GENERAL MOTORS CORP.
