Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new stud into the hub flange hole using firm hand pressure.
  2. Install 4 washers to the new wheel stud.
  3. Thread a wheel nut onto the new stud with the flat side facing the front hub flange.
  4. Tighten the lug nut until the stud contacts the back of the hub flange.
  5. Remove the wheel nut.
  6. Remove the washers.
  7. Install the brake rotor. Refer to BRAKE ROTOR in Disc Brakes.
  8. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  9. Remove the safety stands.
  10. Lower the vehicle.

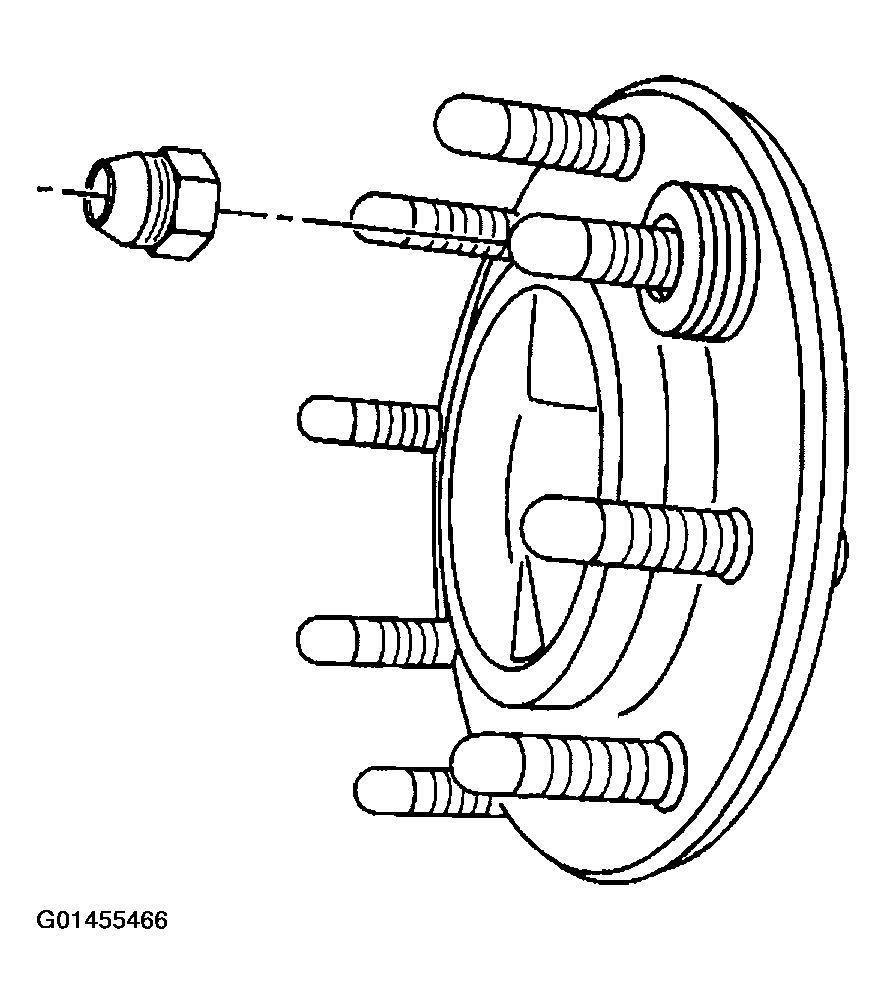

    Fig 1: Installing Wheel Stud
    G01455466Courtesy of GENERAL MOTORS CORP.
