Intake Air Temperature/Mass Air Flow Sensor Connector End View

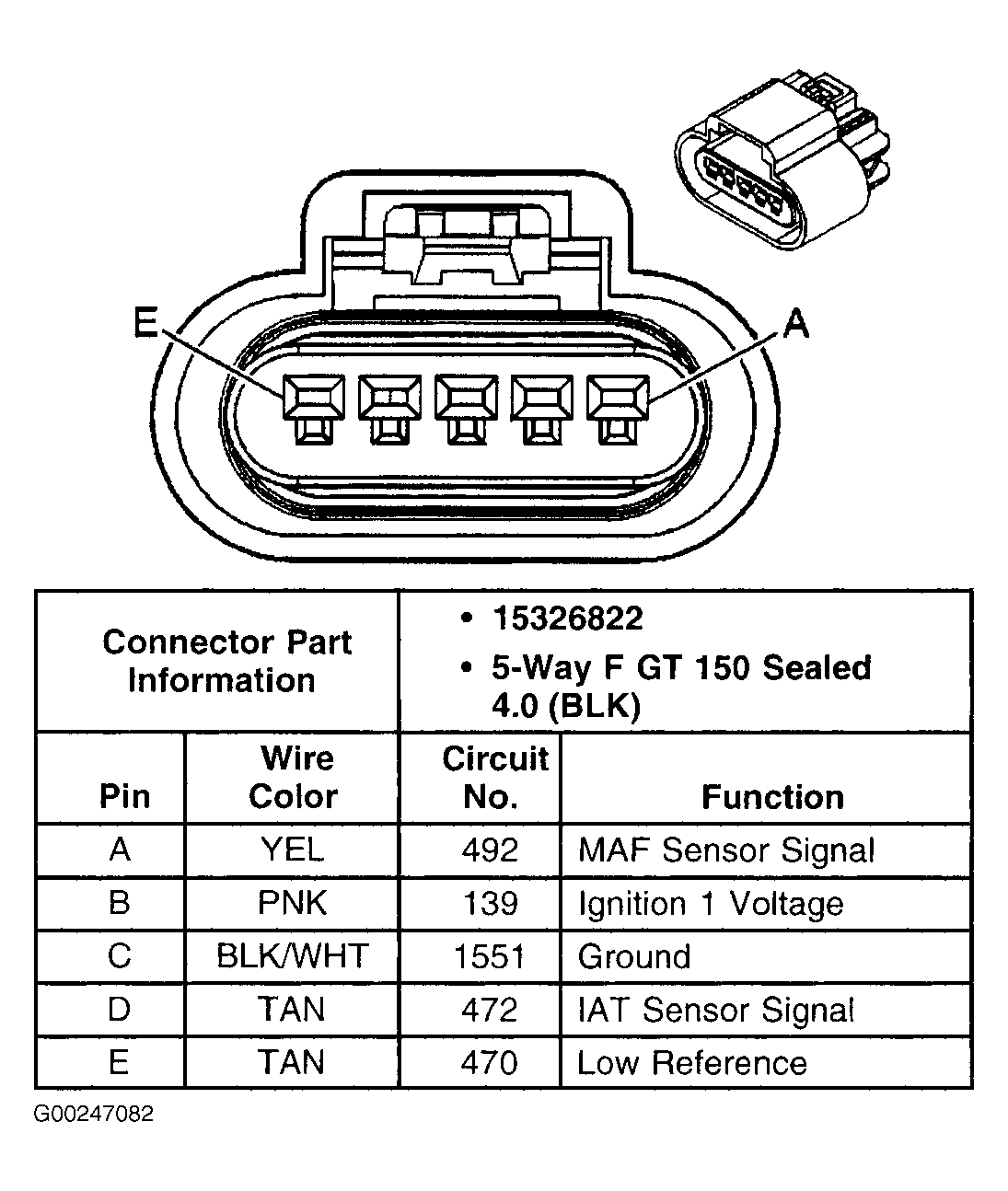

Fig 1: Intake Air Temperature/Mass Air Flow Sensor Connector End View
G00247082Courtesy of GENERAL MOTORS CORP.


Fig 1: Intake Air Temperature/Mass Air Flow Sensor Connector End View
G00239727Courtesy of GENERAL MOTORS CORP.
