Manifold Absolute Pressure Sensor Connector End View

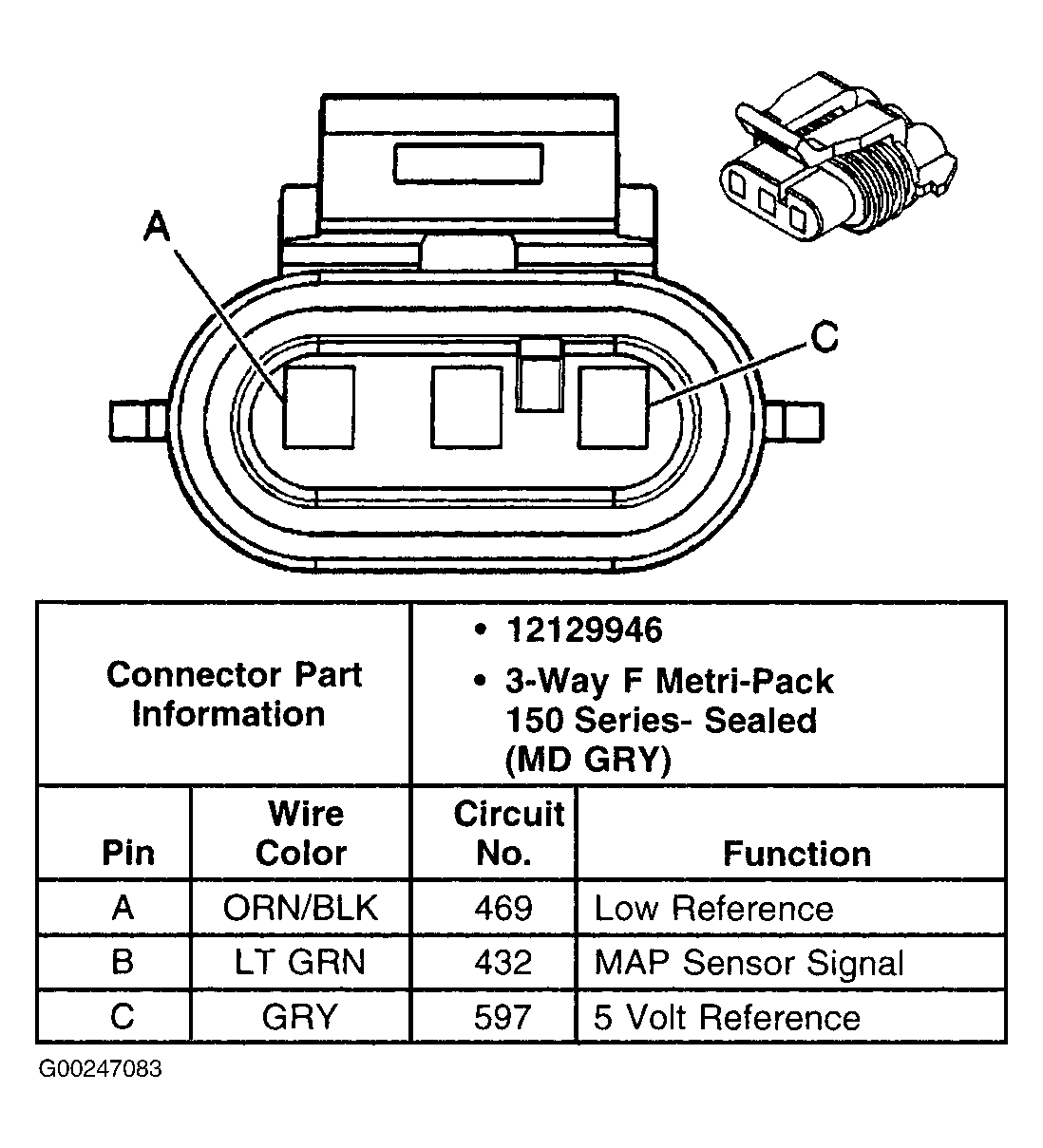

Fig 1: Manifold Absolute Pressure Sensor Connector End View
G00247083Courtesy of GENERAL MOTORS CORP.


Fig 1: Manifold Absolute Pressure Sensor Connector End View
G00239731Courtesy of GENERAL MOTORS CORP.
