Installation Procedure

  1. Install the controls and the control and the control harness to the steering wheel.
  2. Install the wiring through the steering wheel.
  3. Install the steering wheel.
  4. Connect the steering wheel control electrical connector.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the steering wheel nut.

    Tighten

    Tighten the nut to 41 N.m (30 lb ft).

  6. Install the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  7. Enable the SIR system. Refer to ZONE 3 .

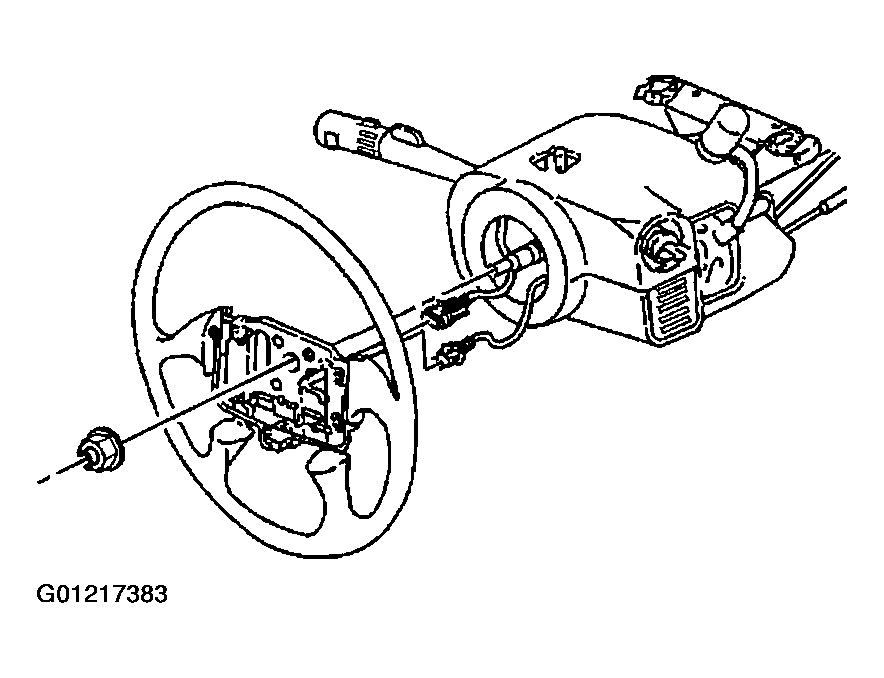

    Fig 1: Installing Wiring Through Steering Wheel
    G01217383Courtesy of GENERAL MOTORS CORP.
