Removal Procedure

  1. Disable the SIR system. Refer to ZONE 3 .
  2. Remove the inflator module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  3. Disconnect the steering wheel control electrical connector.
  4. Remove the steering wheel nut.
  5. Install J-42578 and J-1859-A to the steering wheel.

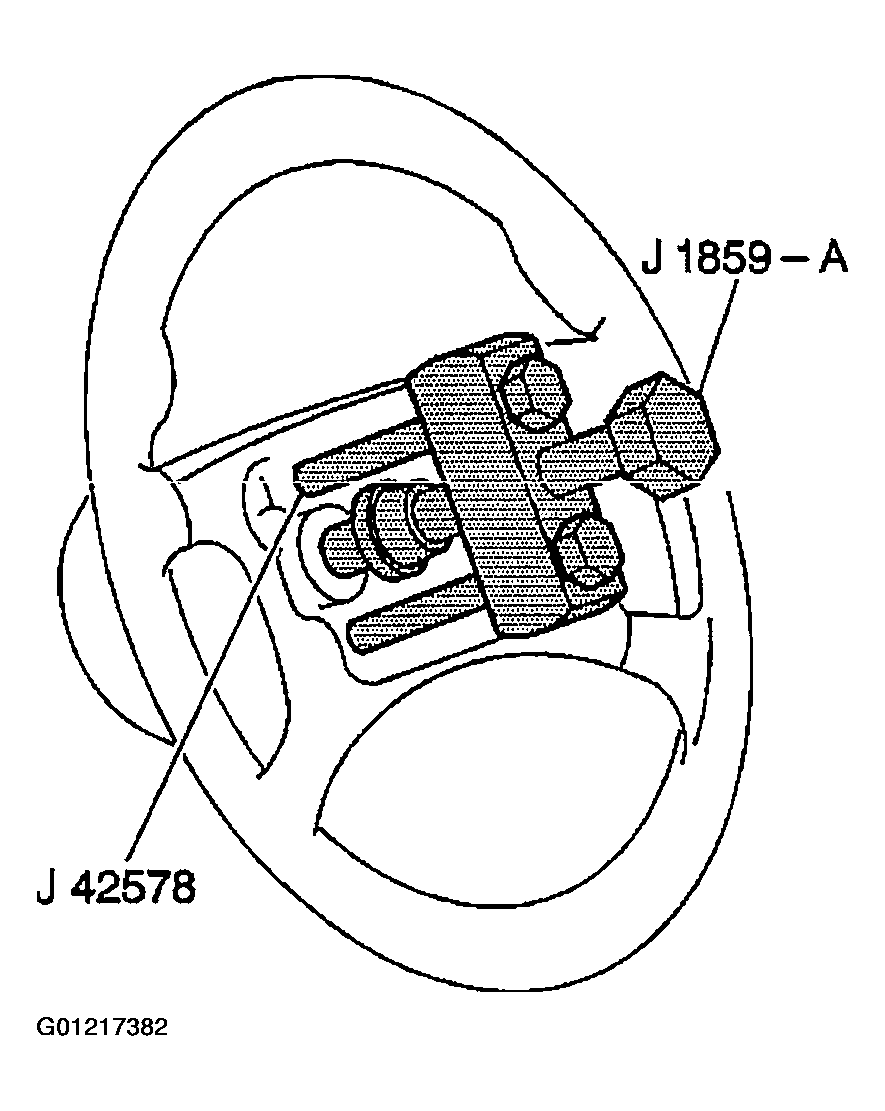

    Fig 1: Installing J-42578 & J-1859-A To Steering Wheel
    G01217382Courtesy of GENERAL MOTORS CORP.
  6. Use J-42578 and J-1859-A in order to remove the steering wheel.
  7. Remove J-42578 and J-1859-A from the steering wheel.
  8. Remove the controls and the control harness from the steering wheel.
