Installation Procedures

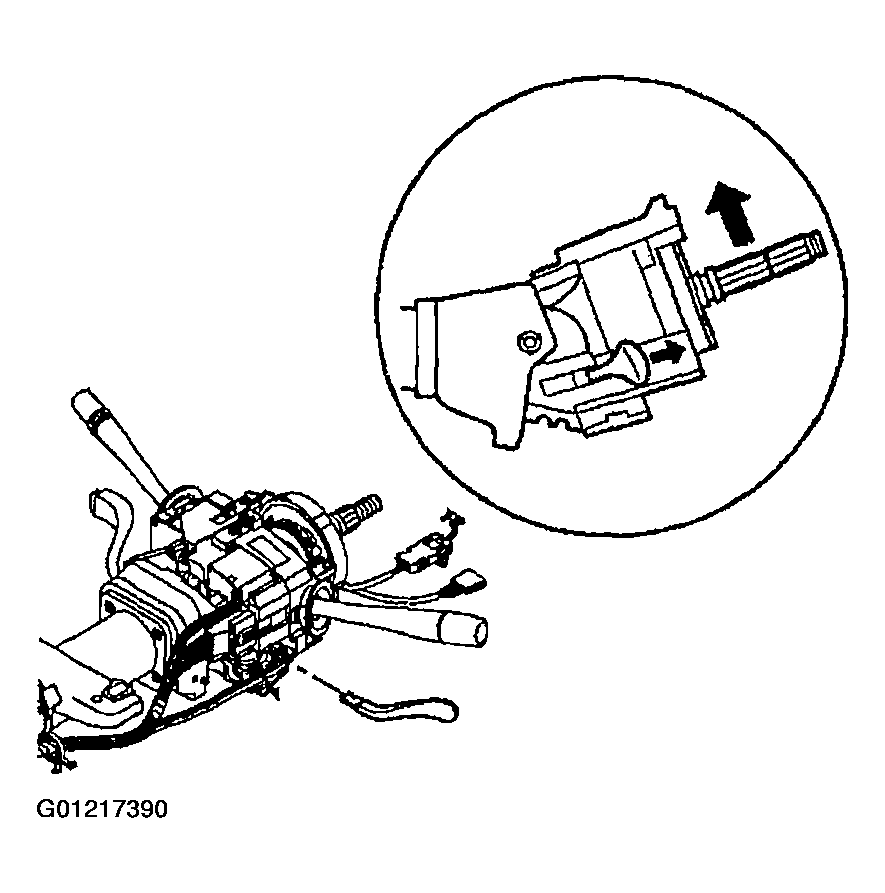

Use the tilt lever to tilt the column to the UP position.

Fig 1: Using Tilt Lever To Tilt Column Up
Courtesy of GENERAL MOTORS CORP.
Install the spring guide into the tilt spring.

Fig 2: Installing Spring Guide Into Tilt Spring
Courtesy of GENERAL MOTORS CORP.

WARNING: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during installation. Bodily injury may result during removal and Installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.

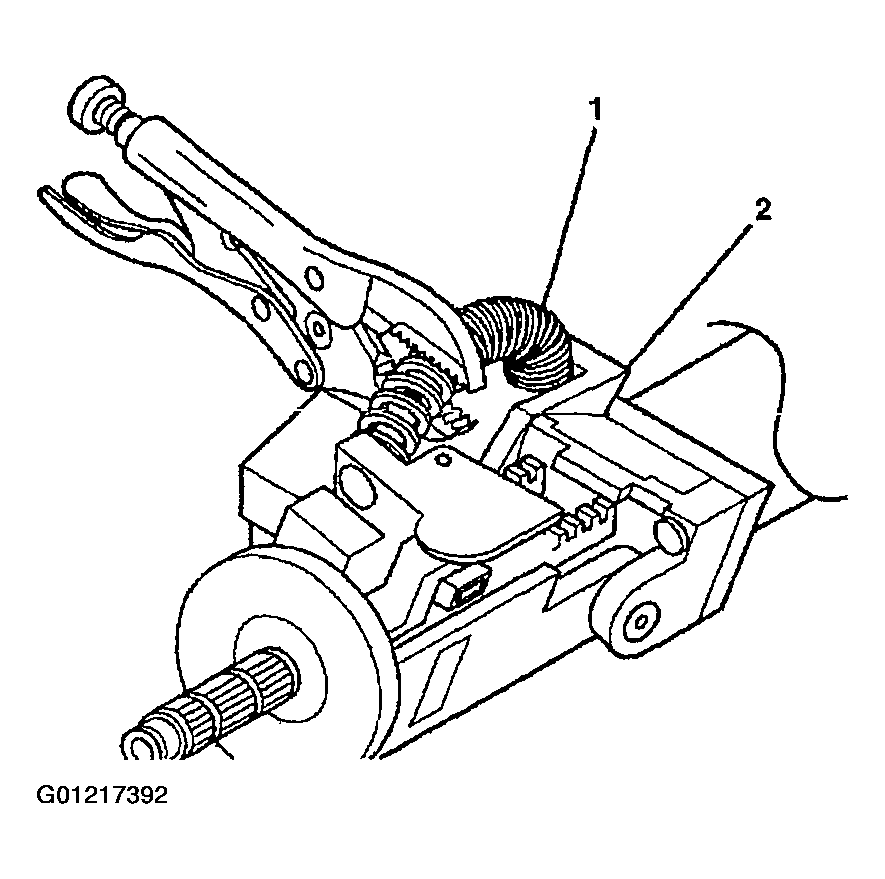

Install the tilt spring (1) onto the steering column support assembly (2) and onto the steering column tilt head assembly by using the following procedure:
1. Install the tilt spring (1) onto the steering column tilt head assembly.
2. Install the tilt spring (1) onto the post on the steering column support assembly (2).

  Fig 3: Installing Tilt Spring Onto Steering Column Support Assembly & Steering Column Tilt Head Assembly
  Courtesy of GENERAL MOTORS CORP.
Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
Enable the SIR system. Refer to ZONE 3 .
