Engine Block-Rear View

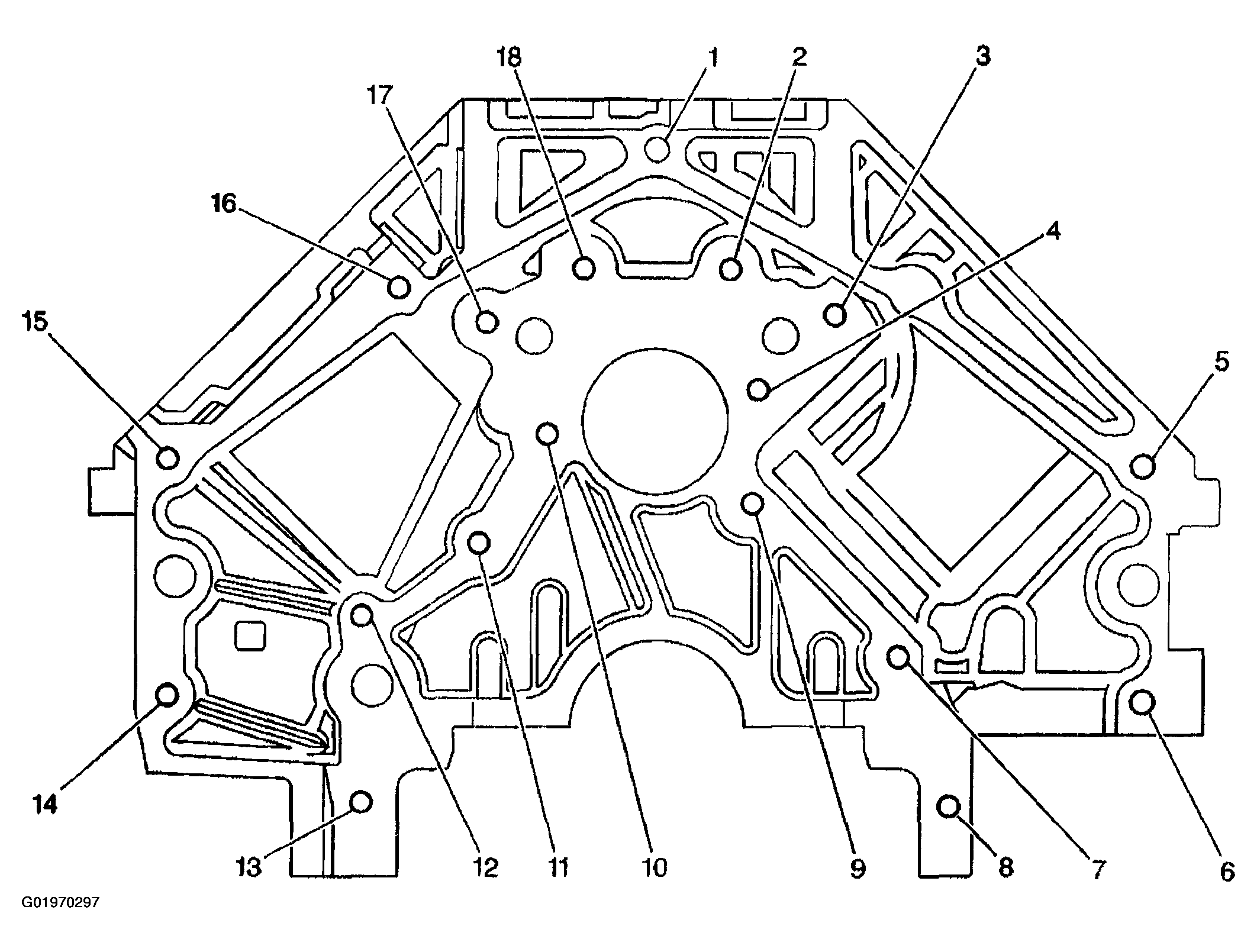

Fig 1: Component Location And Specifications - Engine Block-Rear View
G01970297Courtesy of GENERAL MOTORS CORP.

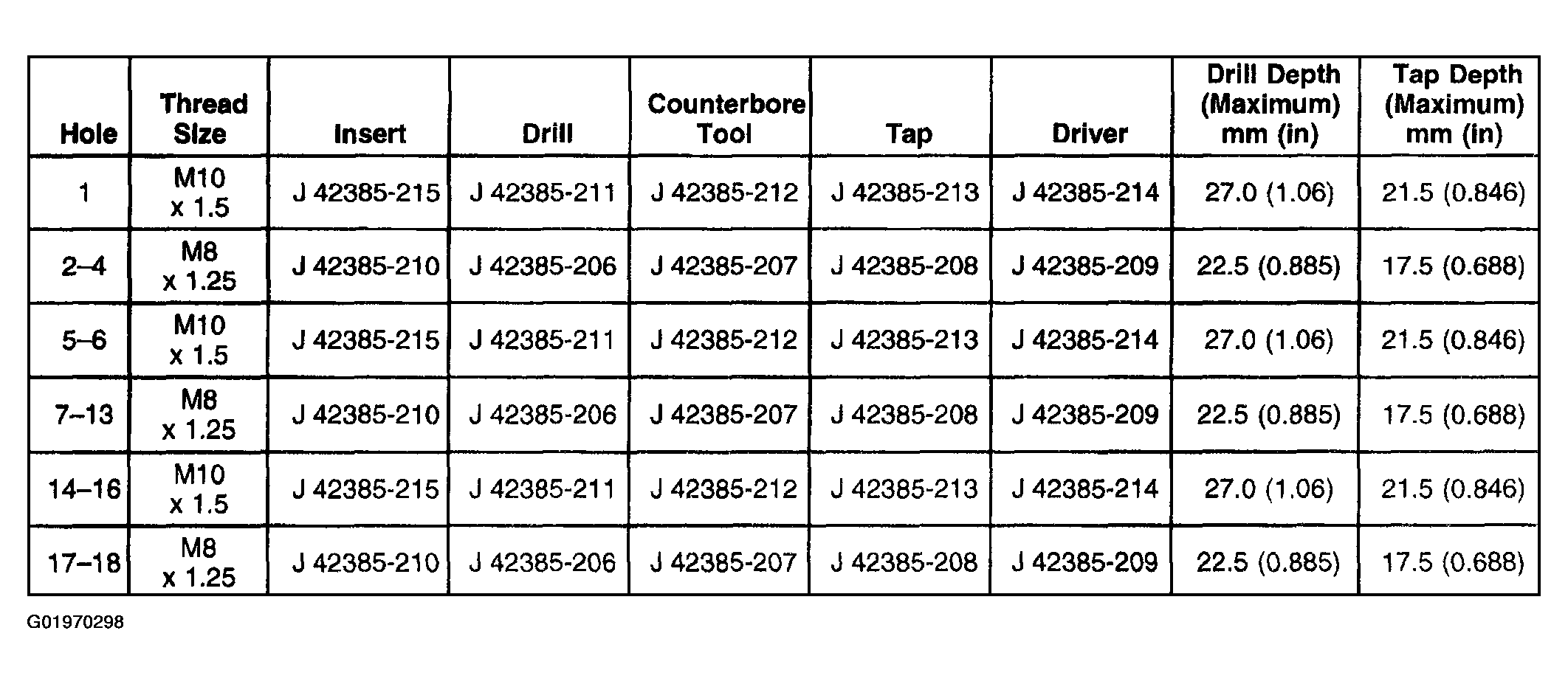

Fig 2: Component Location And Specifications - Engine Block-Rear View (Callouts)
G01970298Courtesy of GENERAL MOTORS CORP.
