Installation Procedure

Important:  The electrical contact must rest on the turn signal cancel cam assembly.

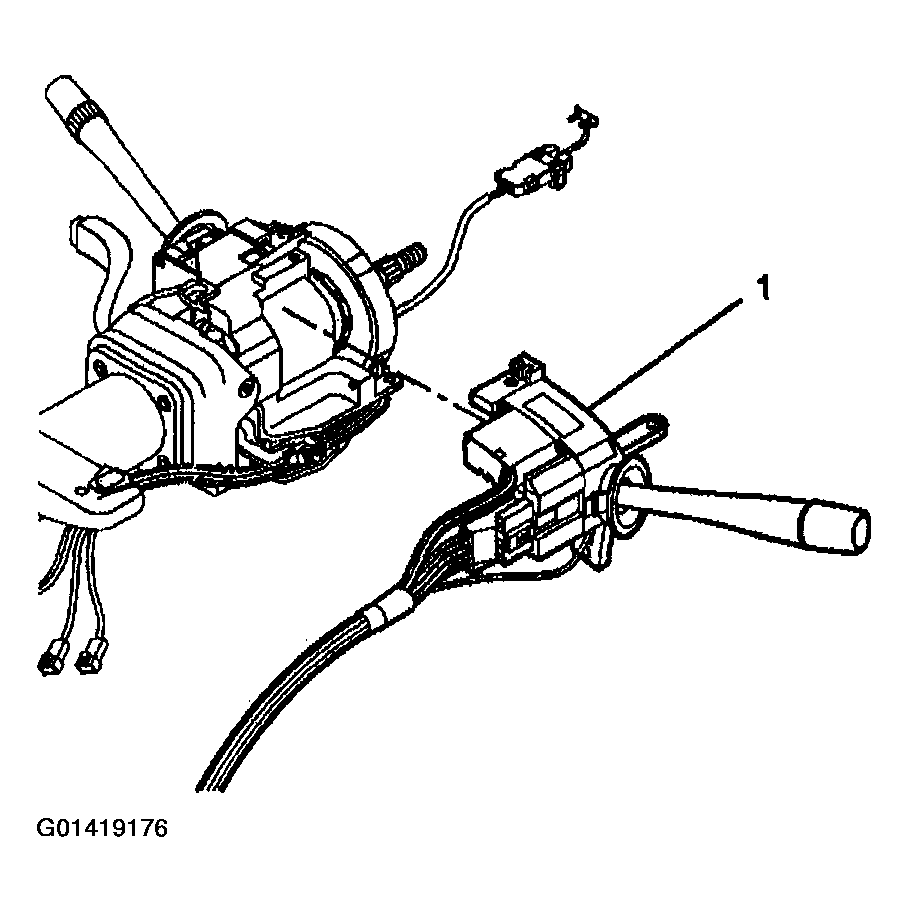

1. Install the multifunction turn signal switch assembly (1) to the steering column assembly.
   Fig 1: Installing Multifunction Turn Signal Switch Assembly

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Refer to FASTENER NOTICE .

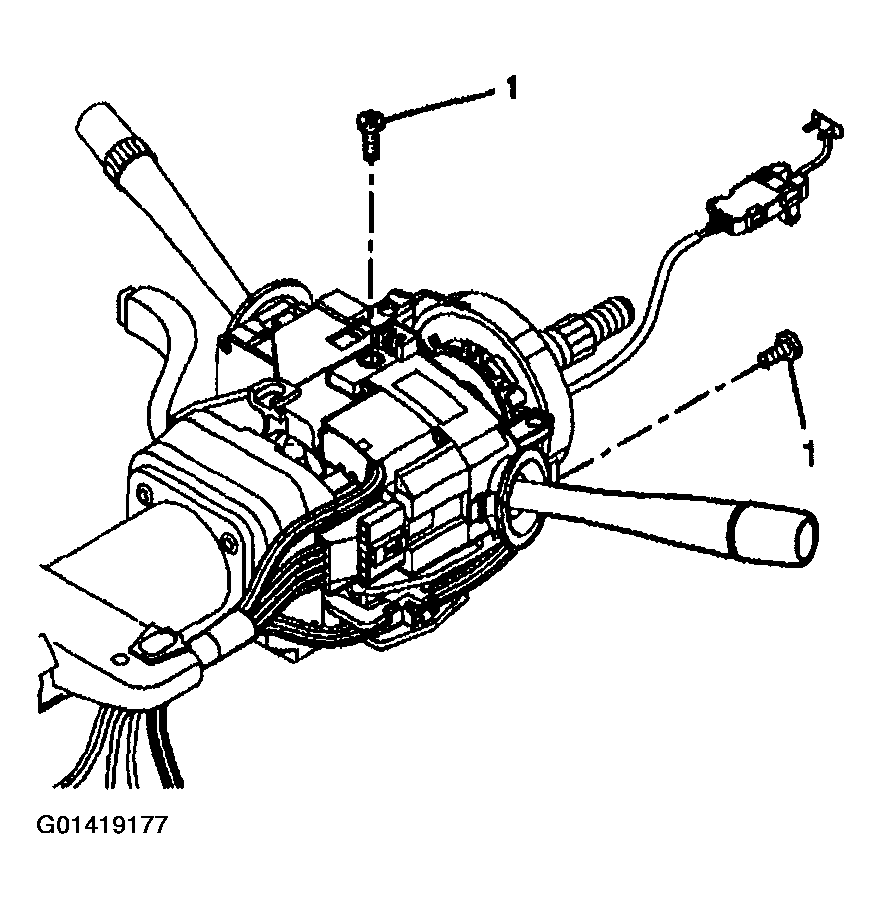

2. Install the 2 pan head tapping screws (1).
   Fig 2: Installing Pan Head Tapping Screws

   Courtesy of GENERAL MOTORS CORP.

   Tighten

   Tighten the screws to 7 N.m (62 lb in).

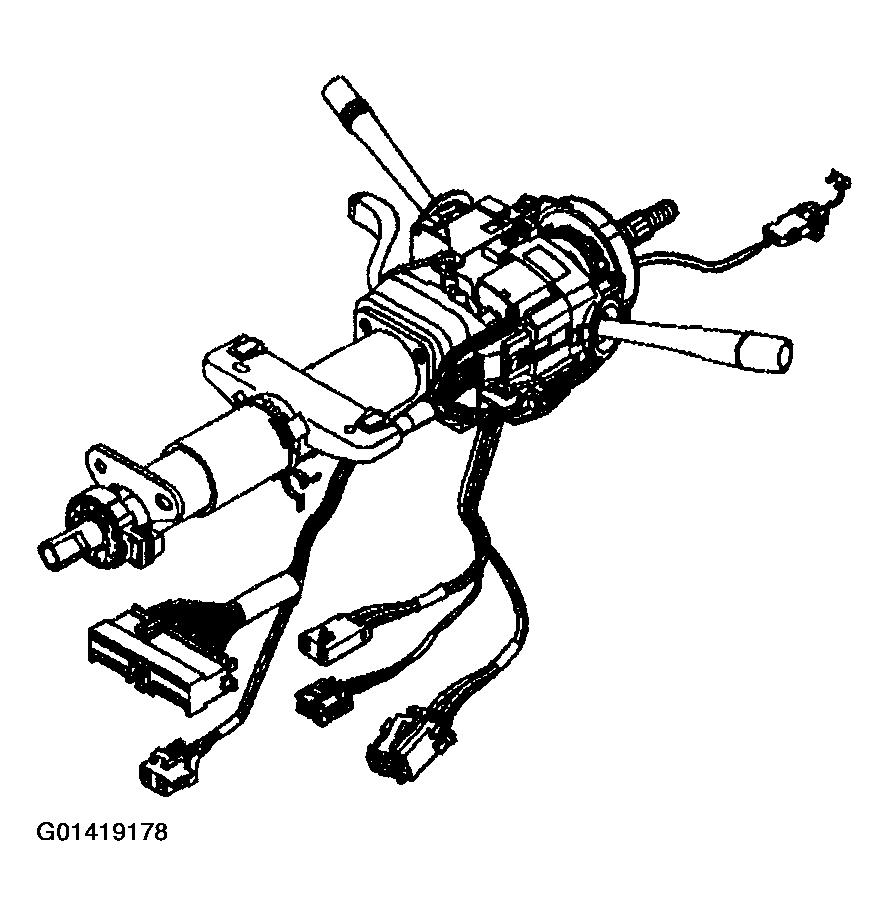

3. Route the wire harness assembly along the steering column jacket assembly.
   Fig 3: Routing Wire Harness Assembly Along Steering Column Jacket Assembly

   Courtesy of GENERAL MOTORS CORP.

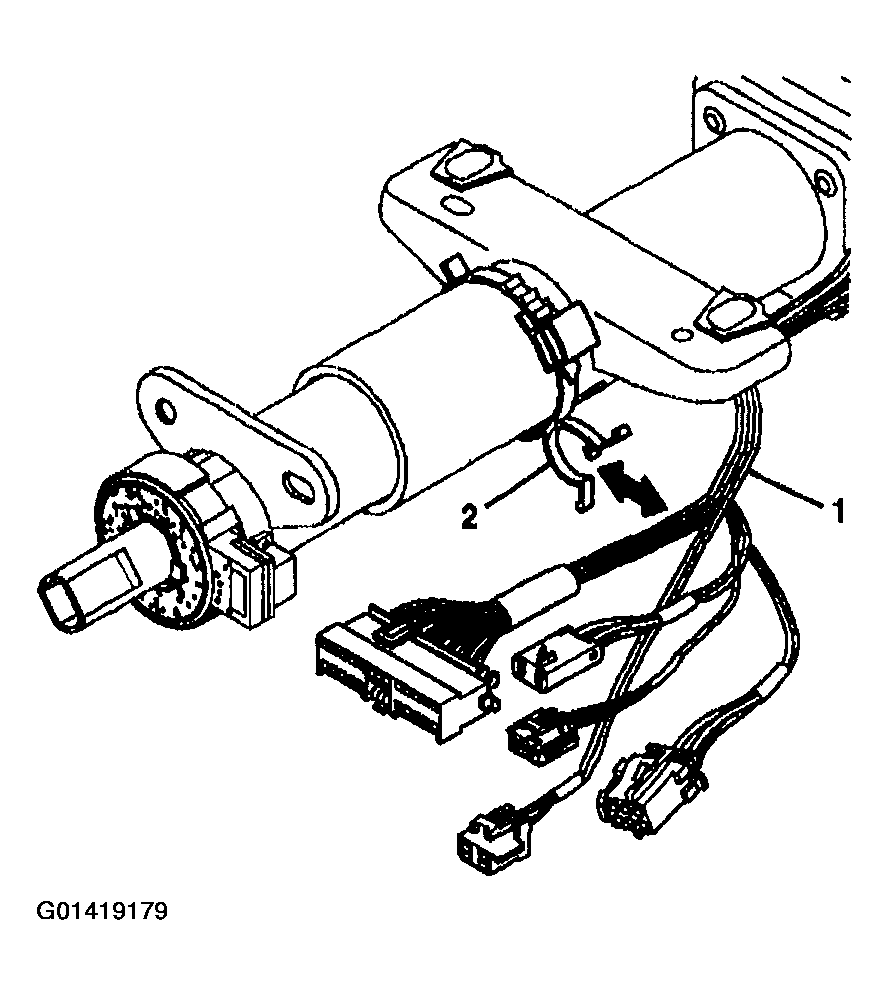

4. Install the wire harness assembly (1) into the wire harness strap (2).
   Fig 4: Installing Wire Harness Assembly Into Wire Harness Strap

   Courtesy of GENERAL MOTORS CORP.

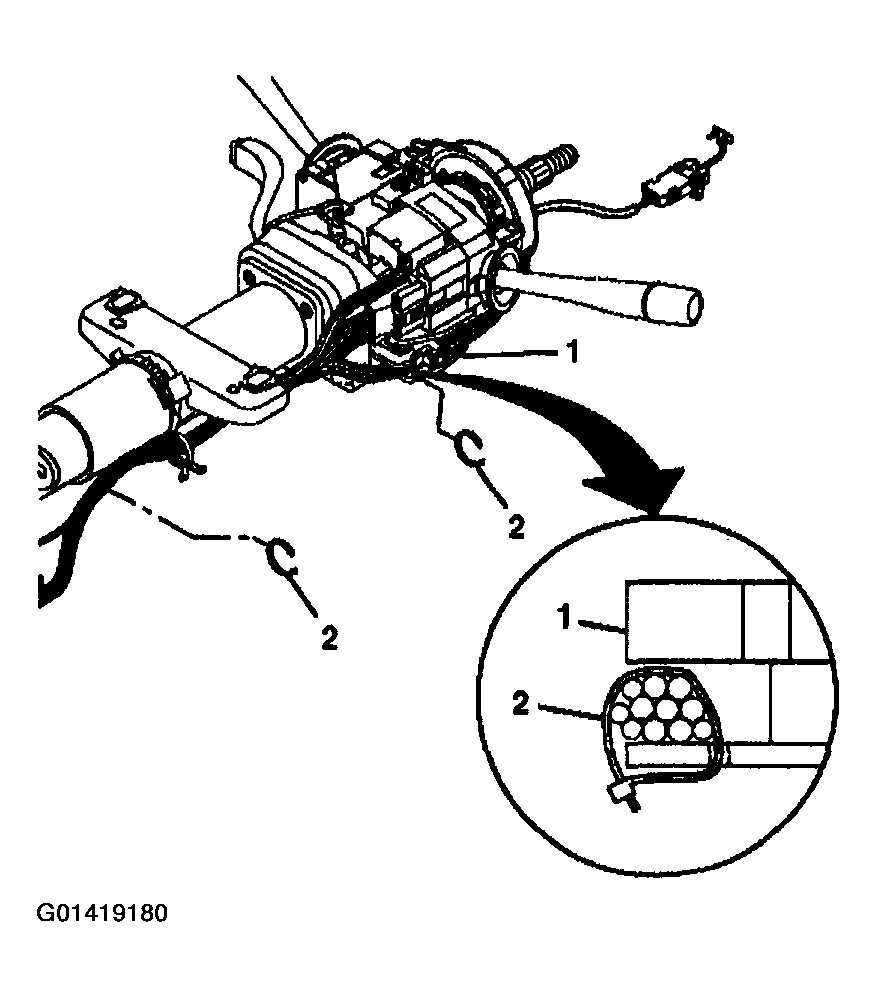

5. Install new wire harness straps (2) to the steering column assembly (1) and the column.
   Fig 5: Installing Wire Harness Straps To Steering Column Assembly

   Courtesy of GENERAL MOTORS CORP.

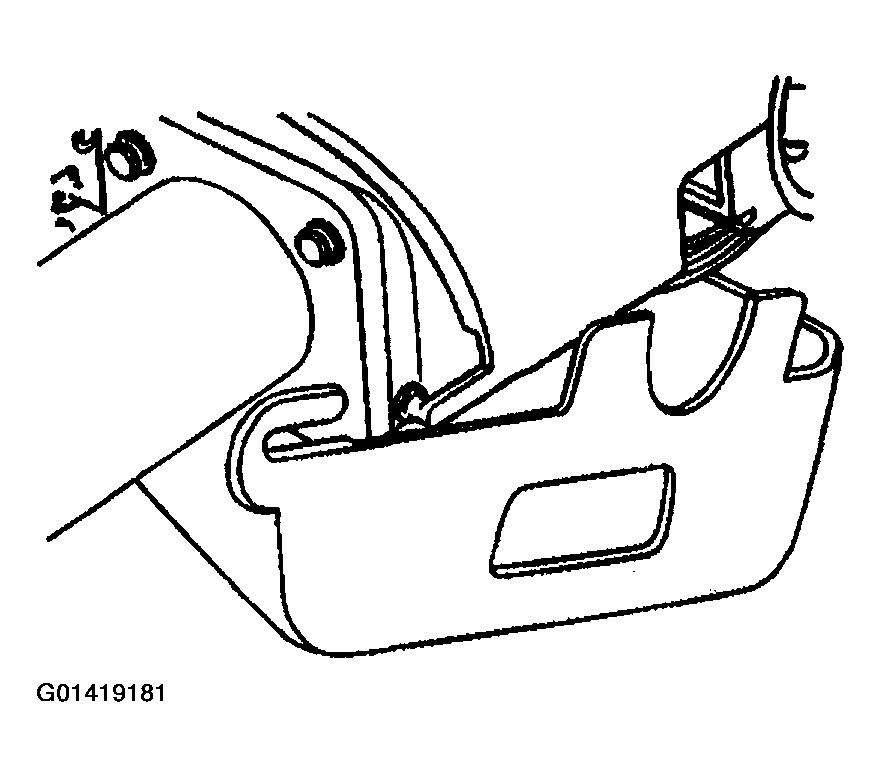

6. Install the upper and lower steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT (TELESCOPING)  or STEERING COLUMN TRIM COVERS REPLACEMENT (MANUAL)  .
   Fig 6: Installing Lower Steering Column Trim Cover

   Courtesy of GENERAL MOTORS CORP.
