Manual Transmission/Transaxle

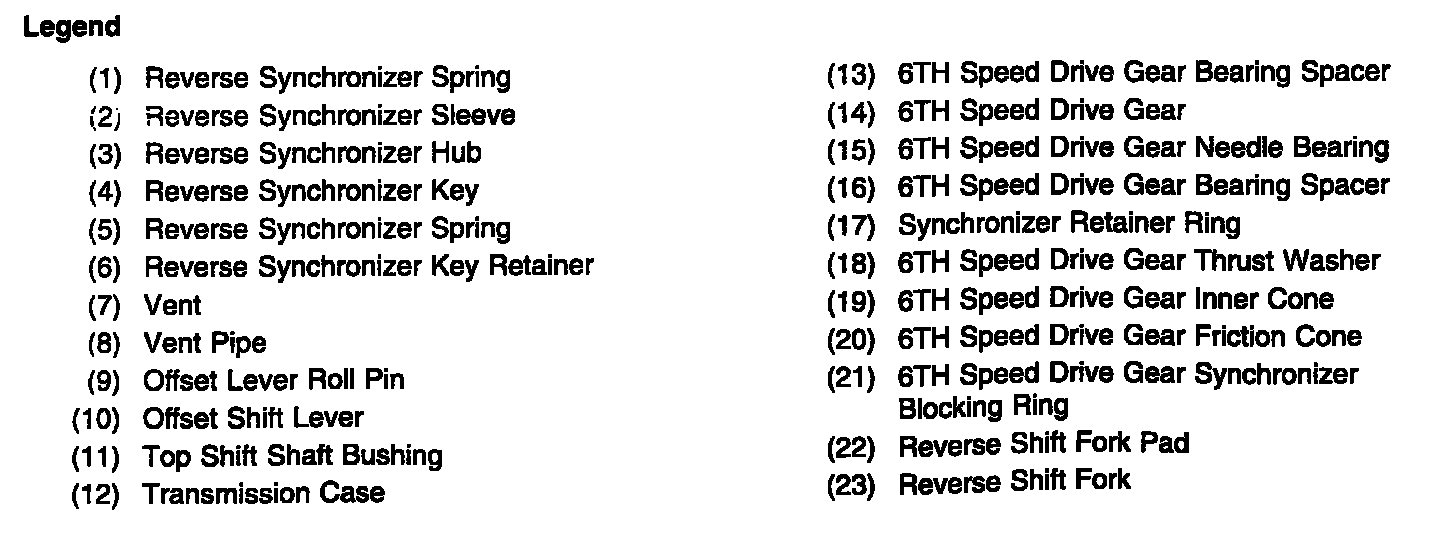

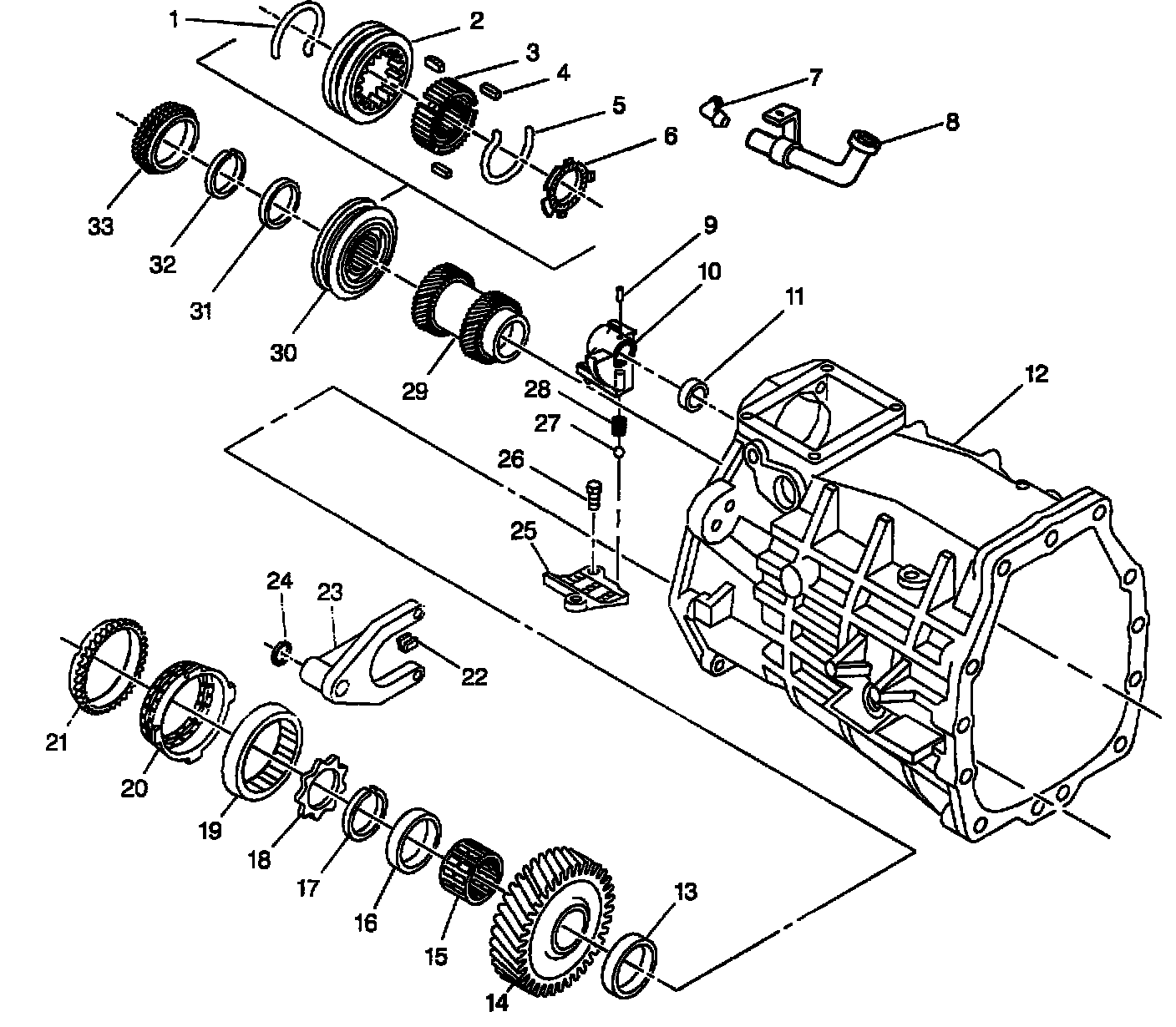

Transmission Case (Part 1)

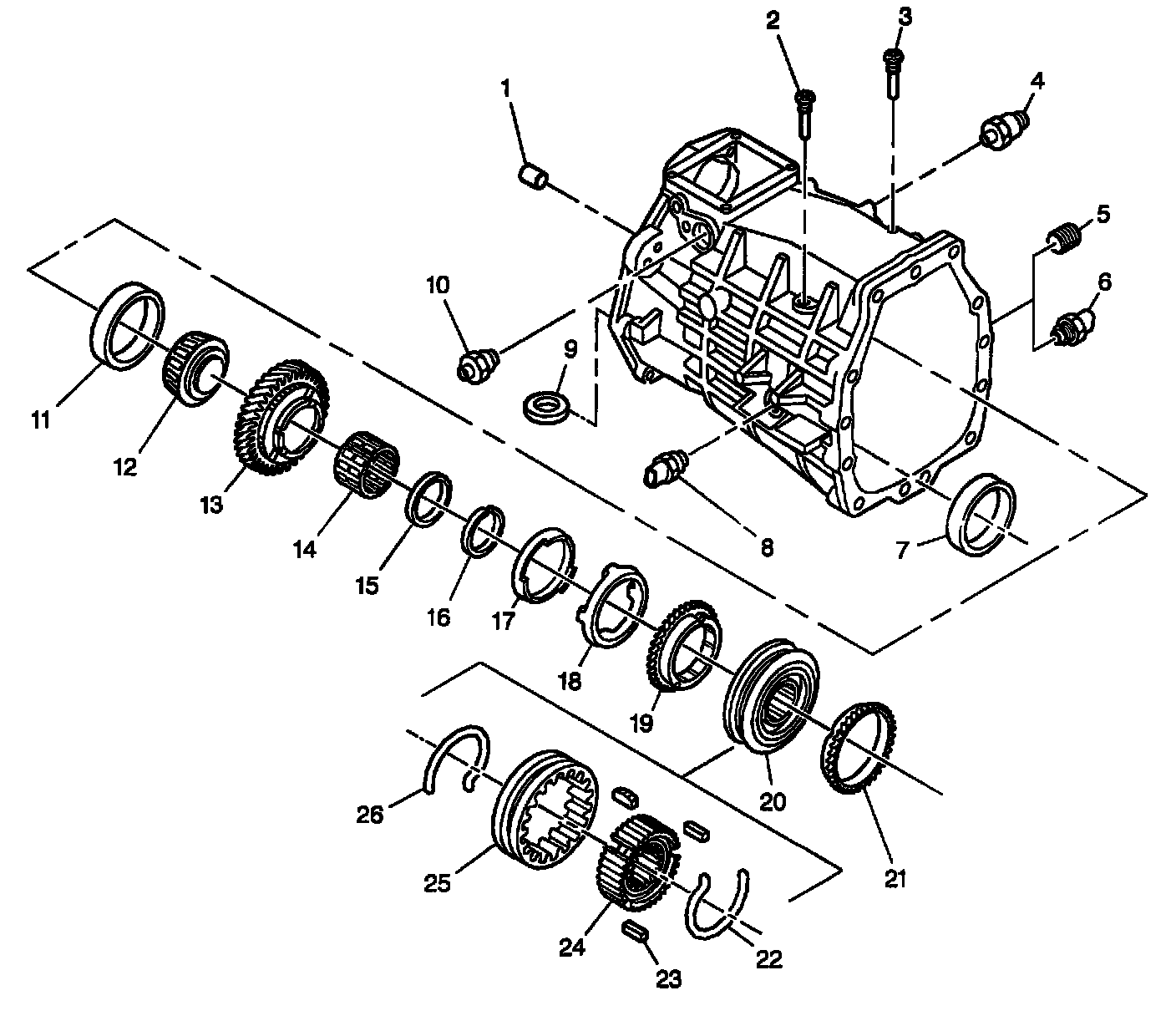

Transmission Case (Part 2)

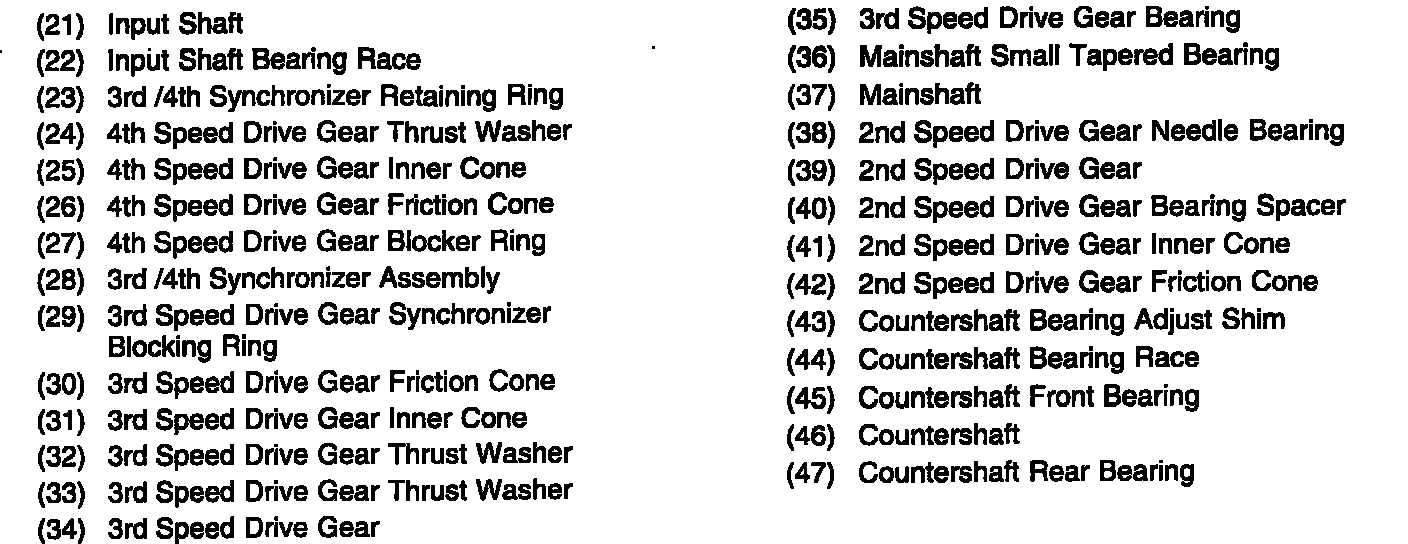

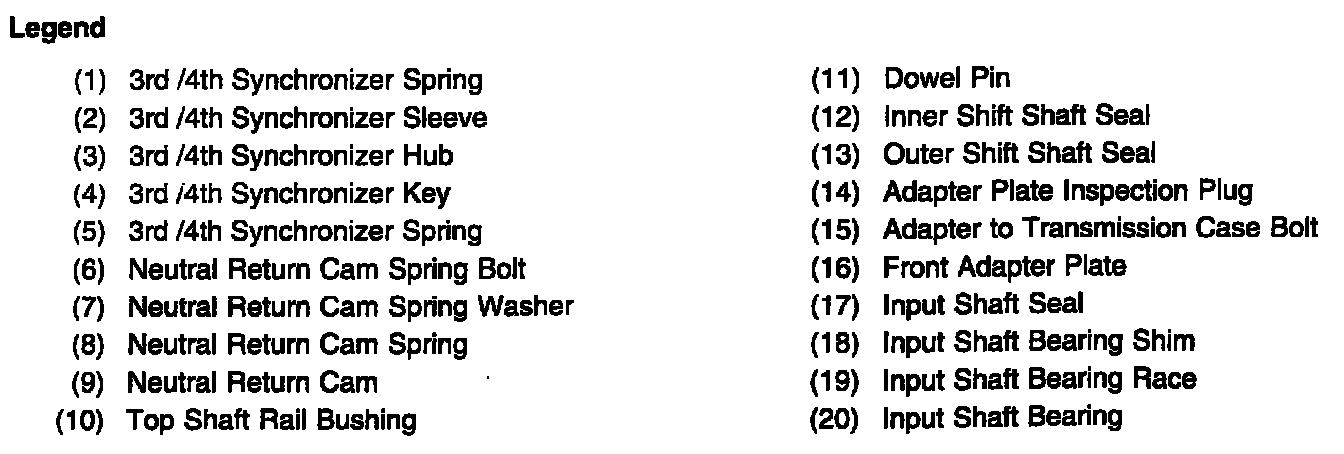

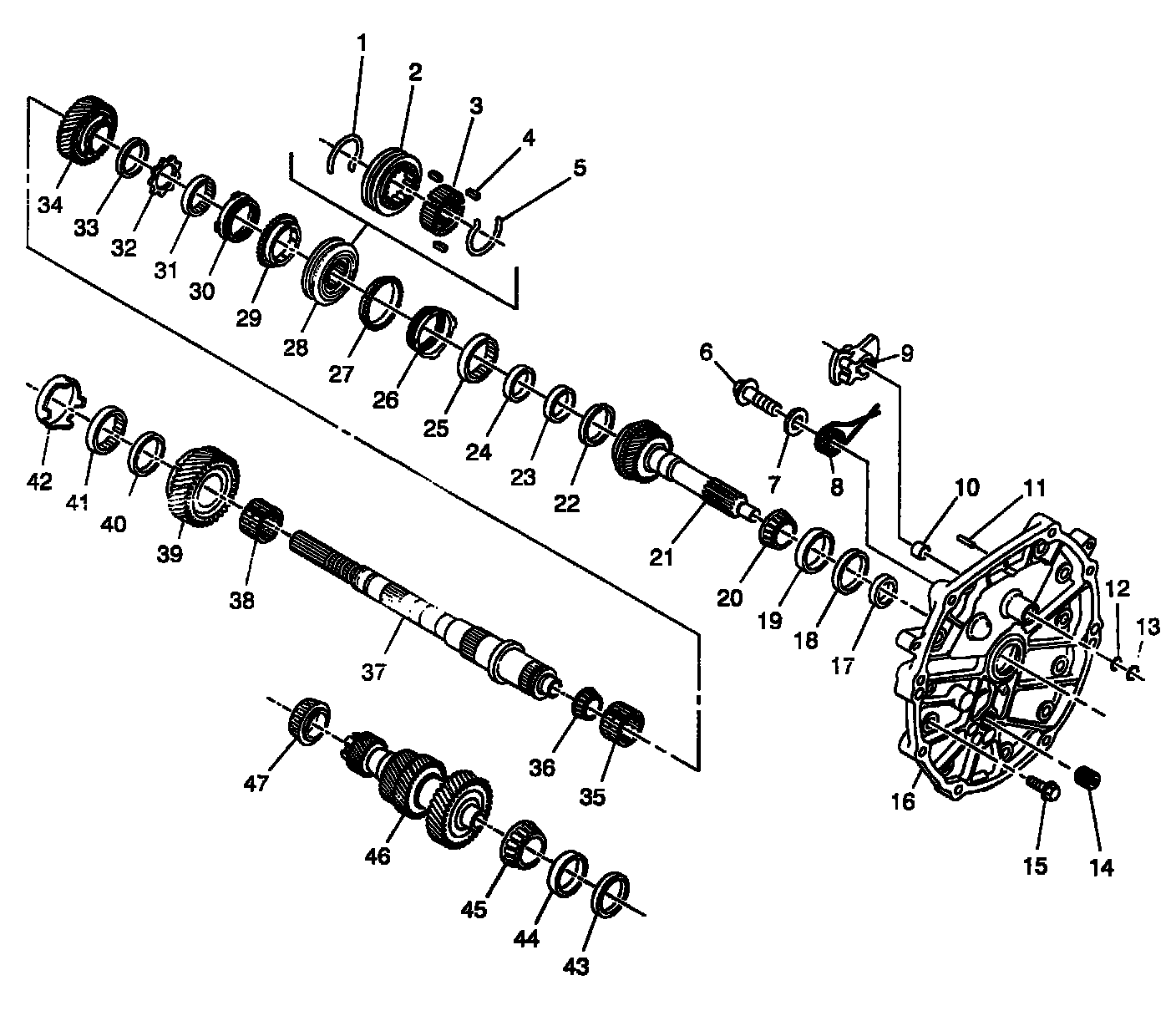

Adapter Plate and Gears

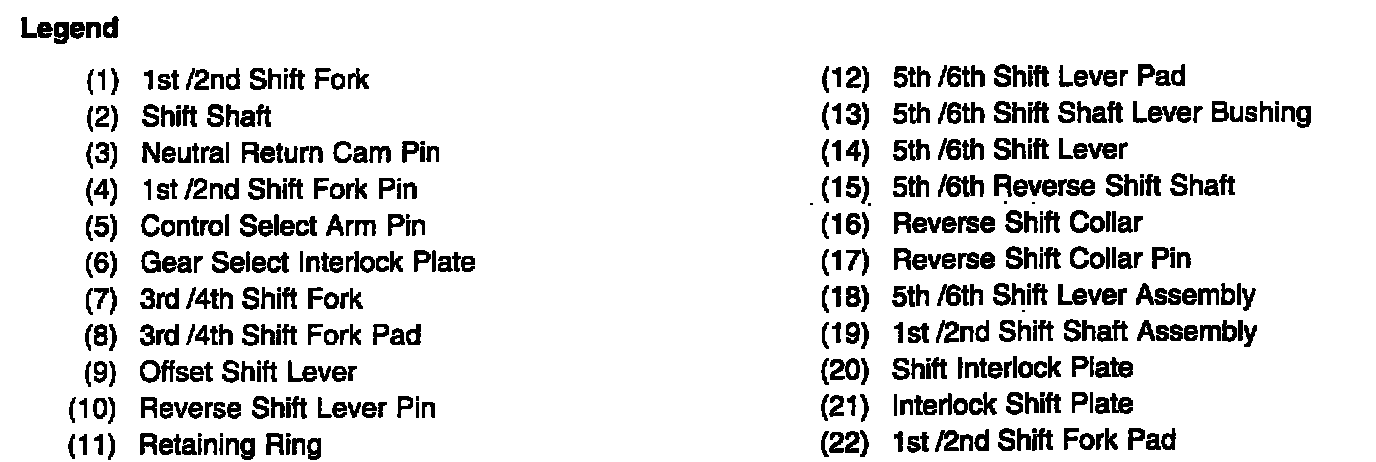

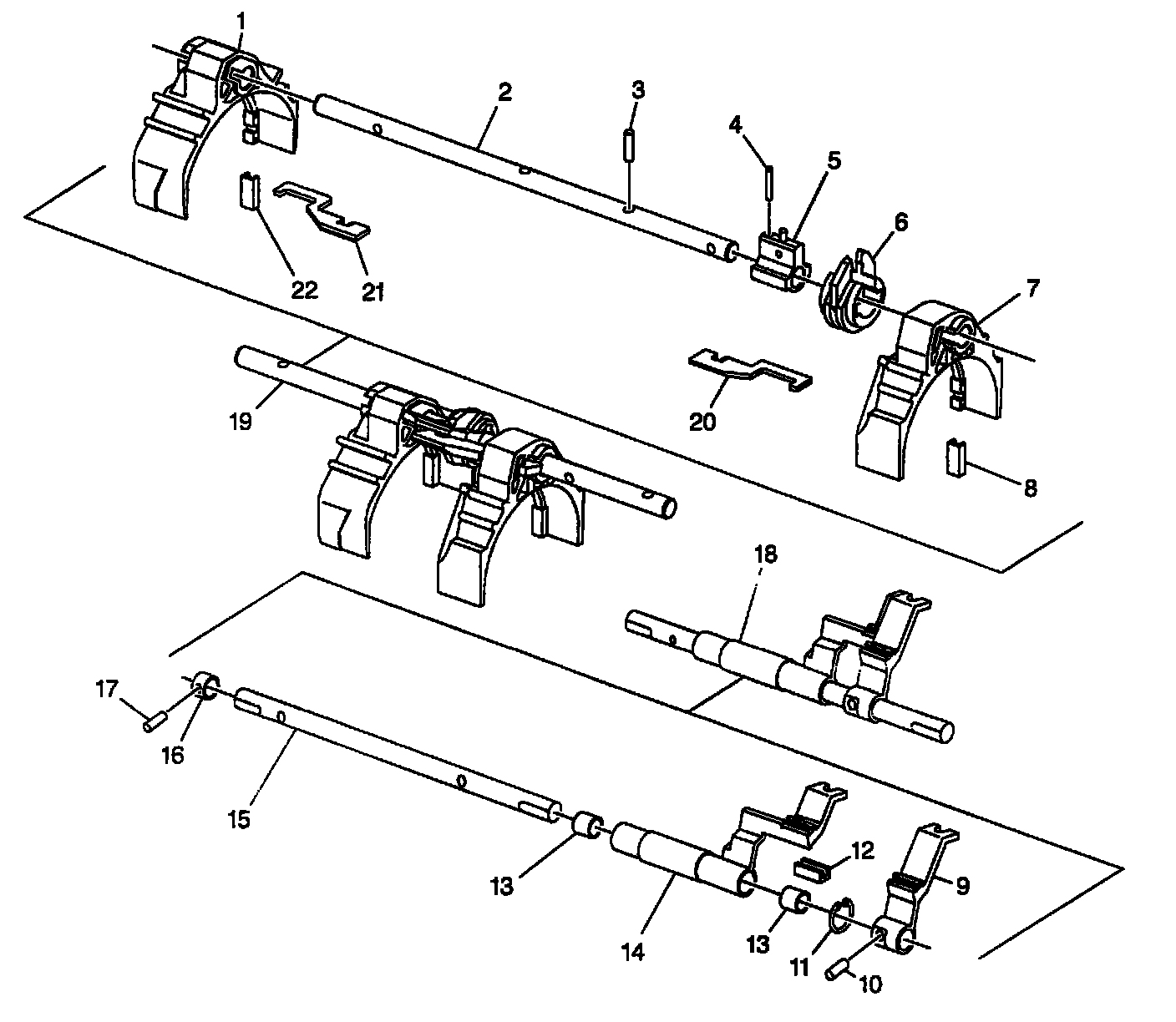

Shift Shafts
