Body Control Module: Locations

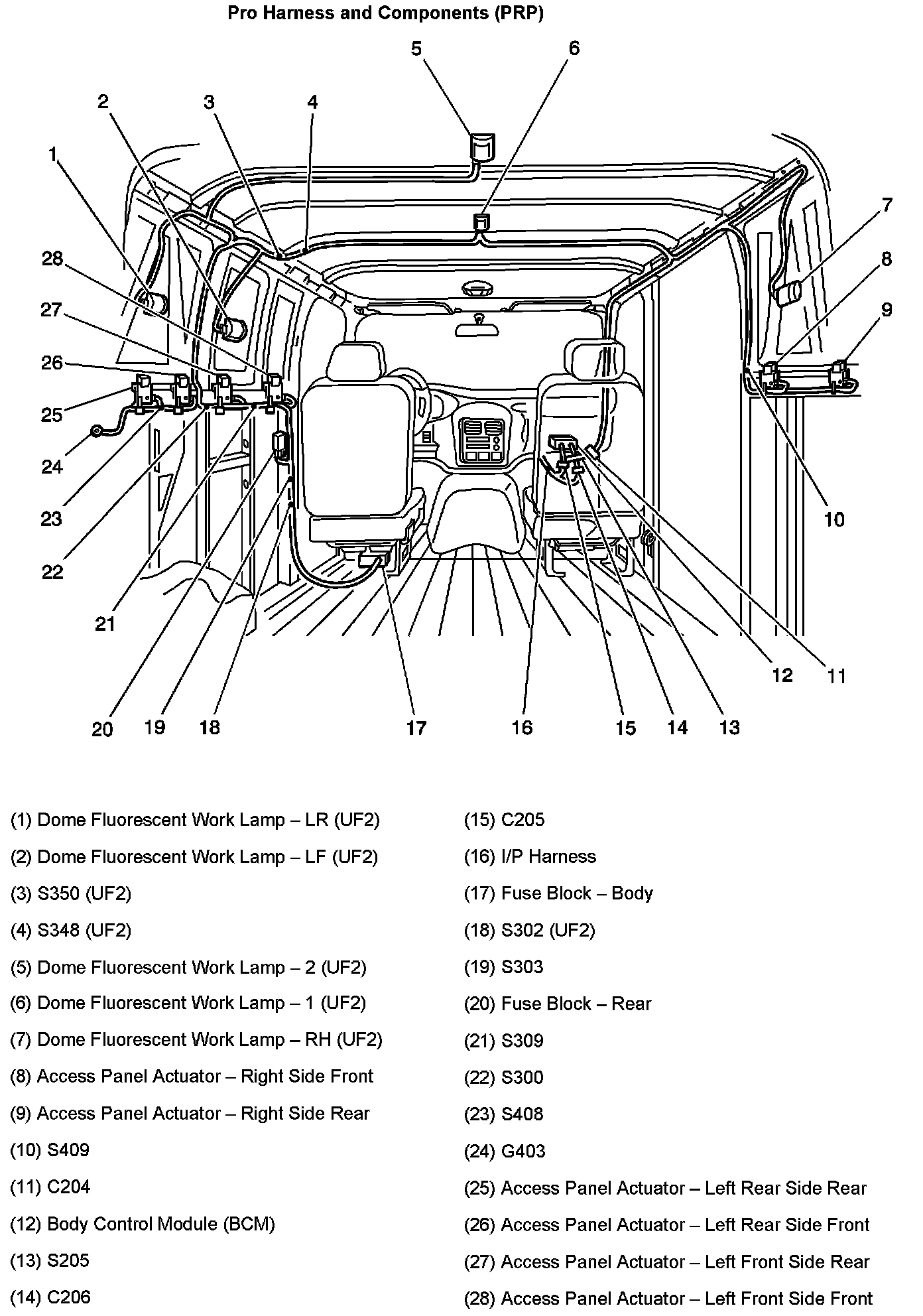

Pro Harness And Components (PRP):

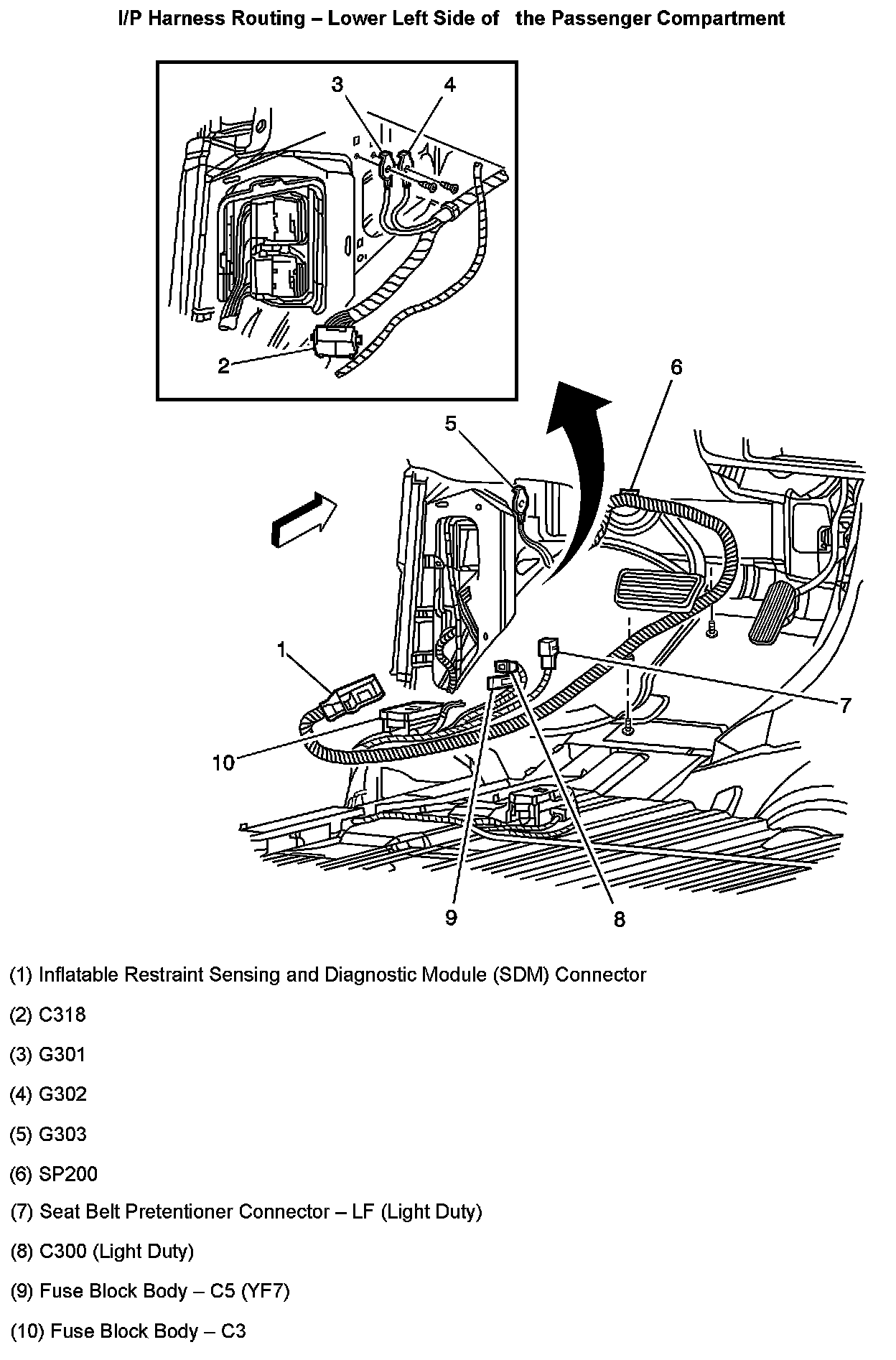

I/P Harness Routing - Lower Left Side Of The Passenger Compartment:

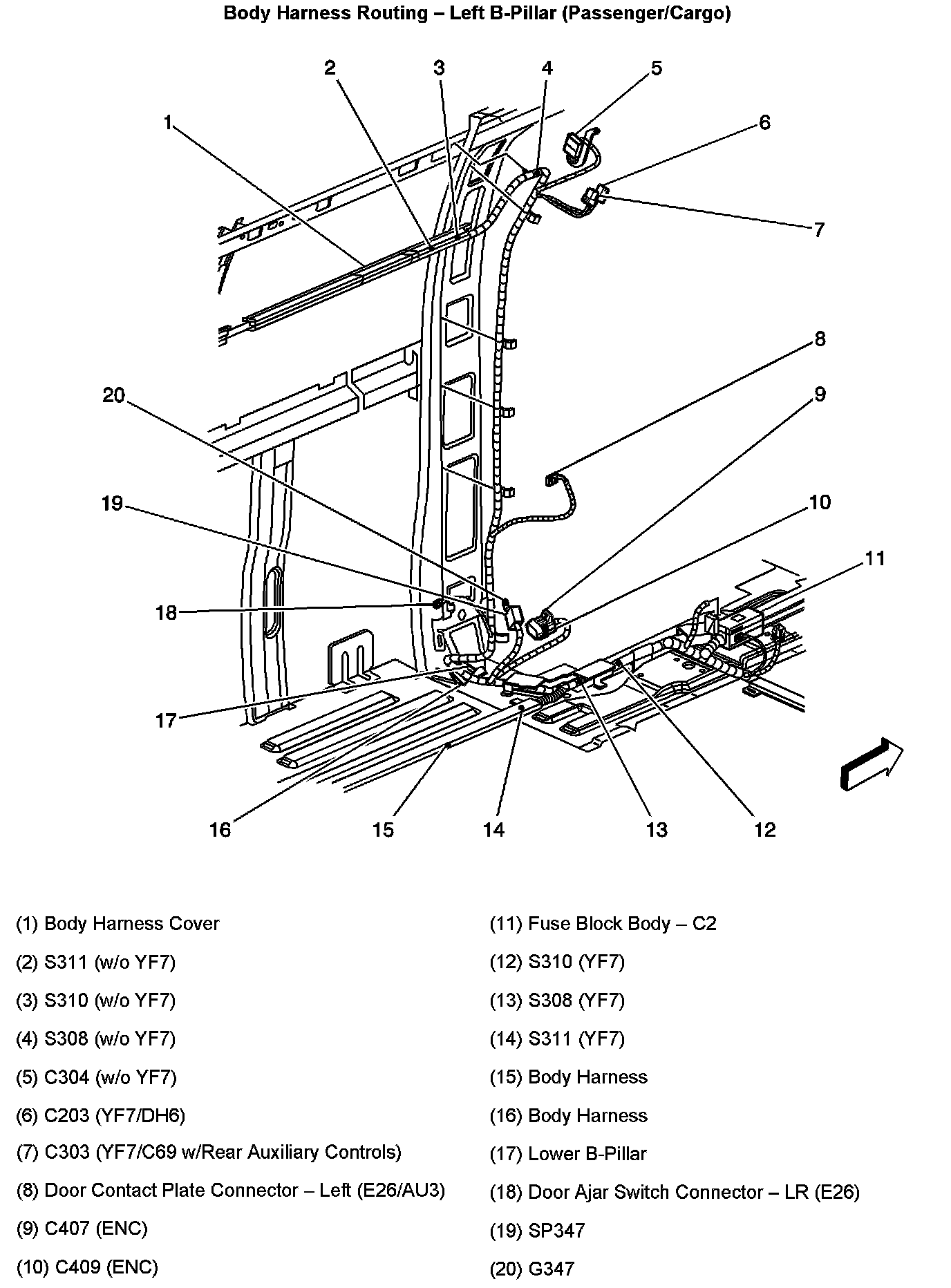

Body Harness Routing - Left B-Pillar (Passenger/Cargo):

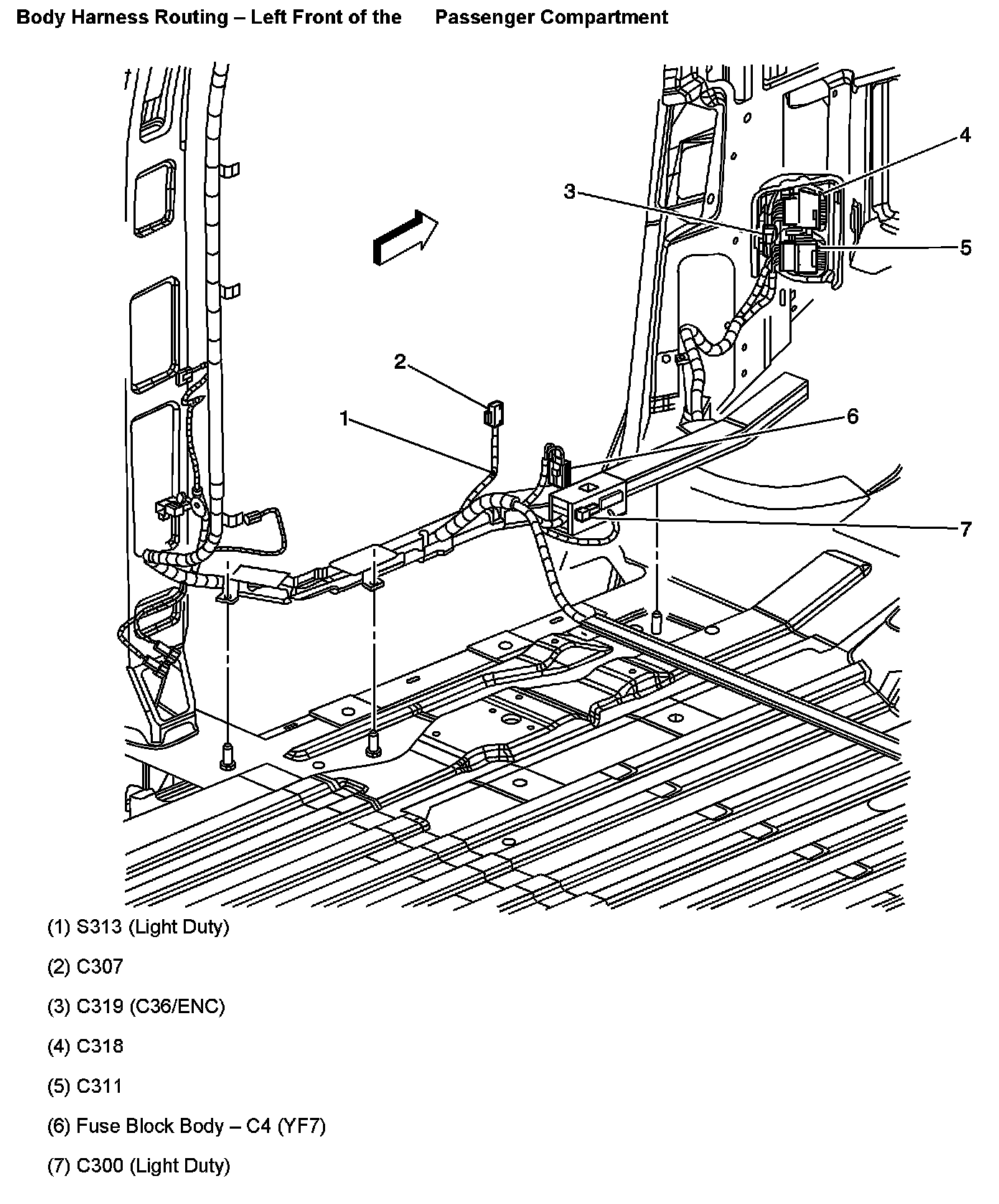

Body Harness Routing - Left Front Of The Passenger Compartment:

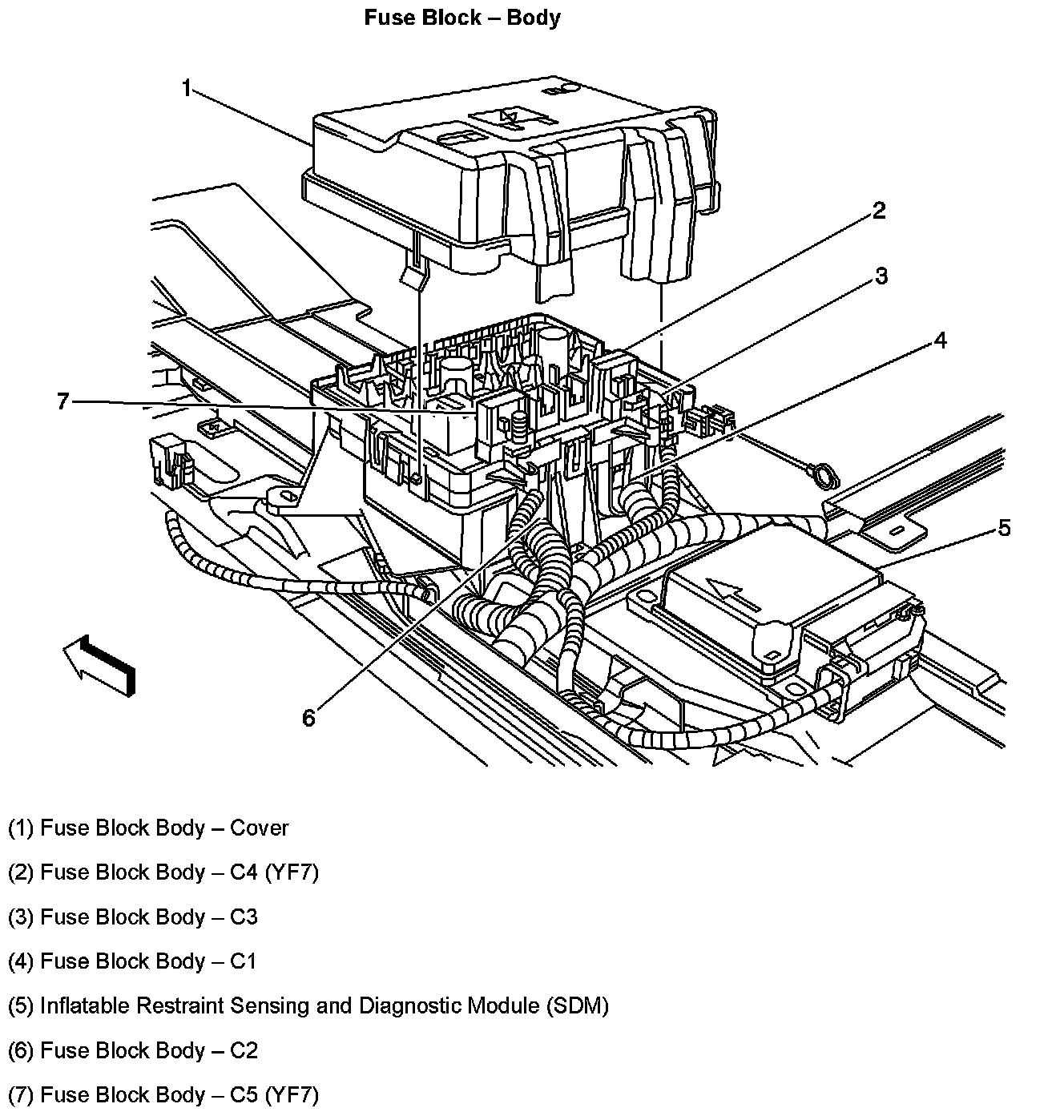

Fuse Block - Body:

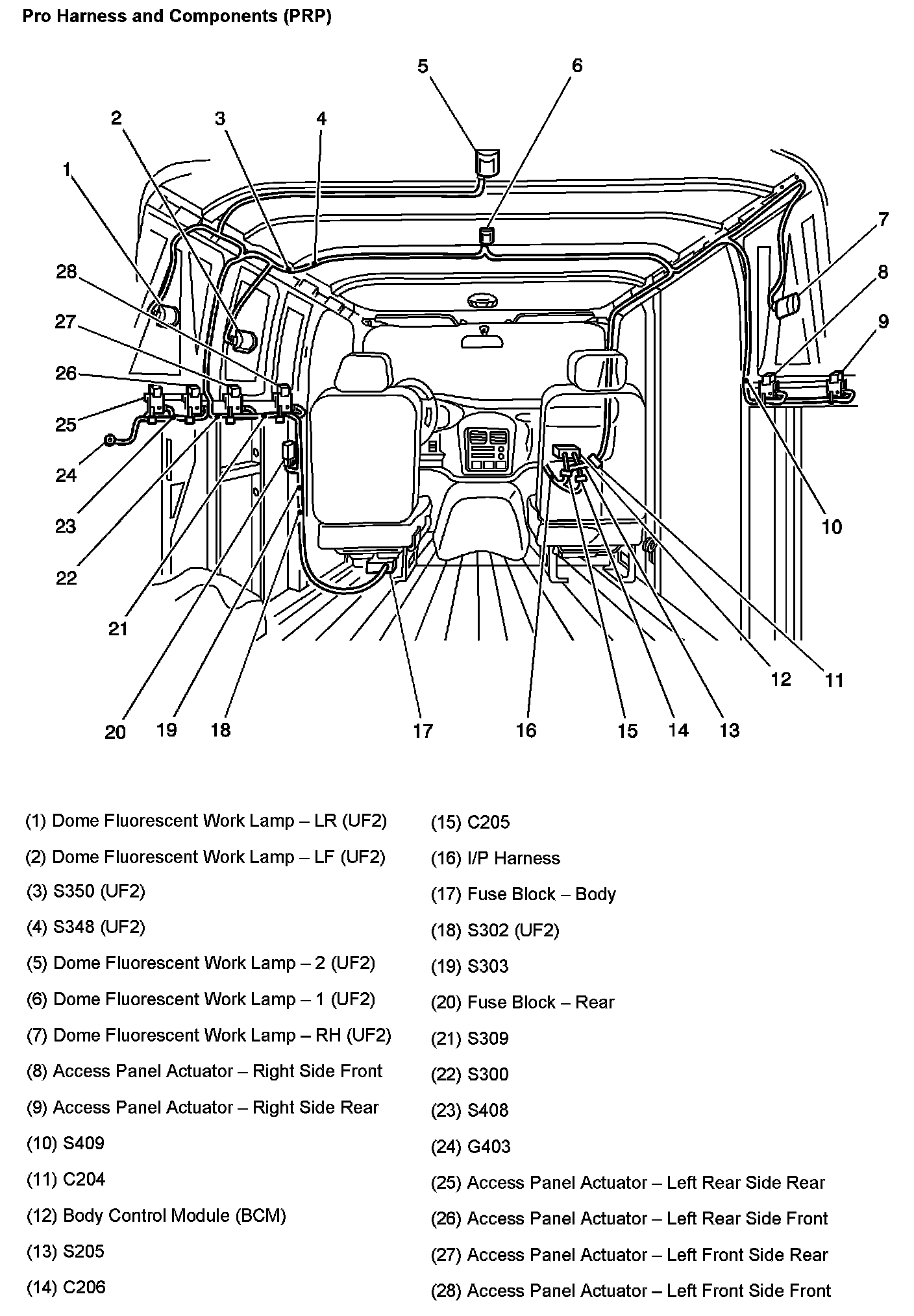

Pro Harness And Components (PRP):
