Removal Procedure

  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Remove the generator. Refer to Generator Replacement (3.4L)  or Generator Replacement (3.8L) .

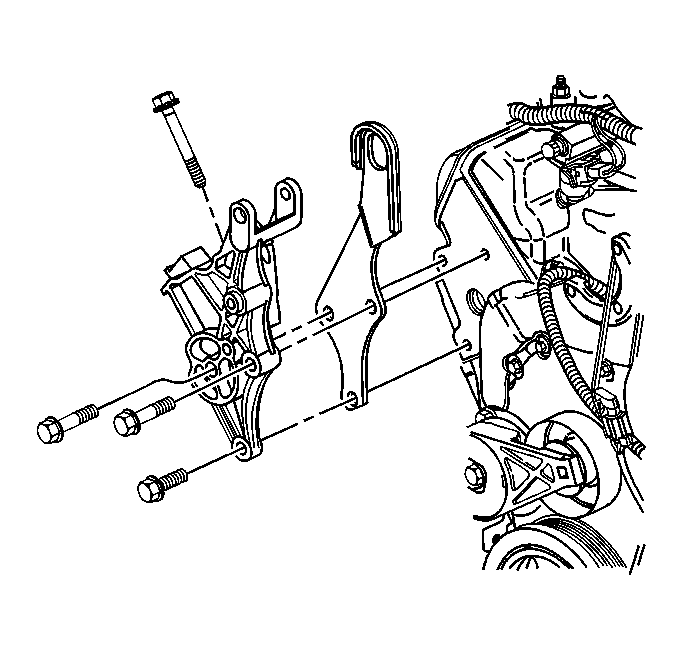

    3. Fig 1: Generator Bracket & Bolts
    GM302507Courtesy of GENERAL MOTORS CORP.
  3. Remove the generator bracket bolts.
  4. Remove the generator bracket.
  5. Remove the engine lift hook.
