Left Instrument Panel Fuse Block
NOTE:

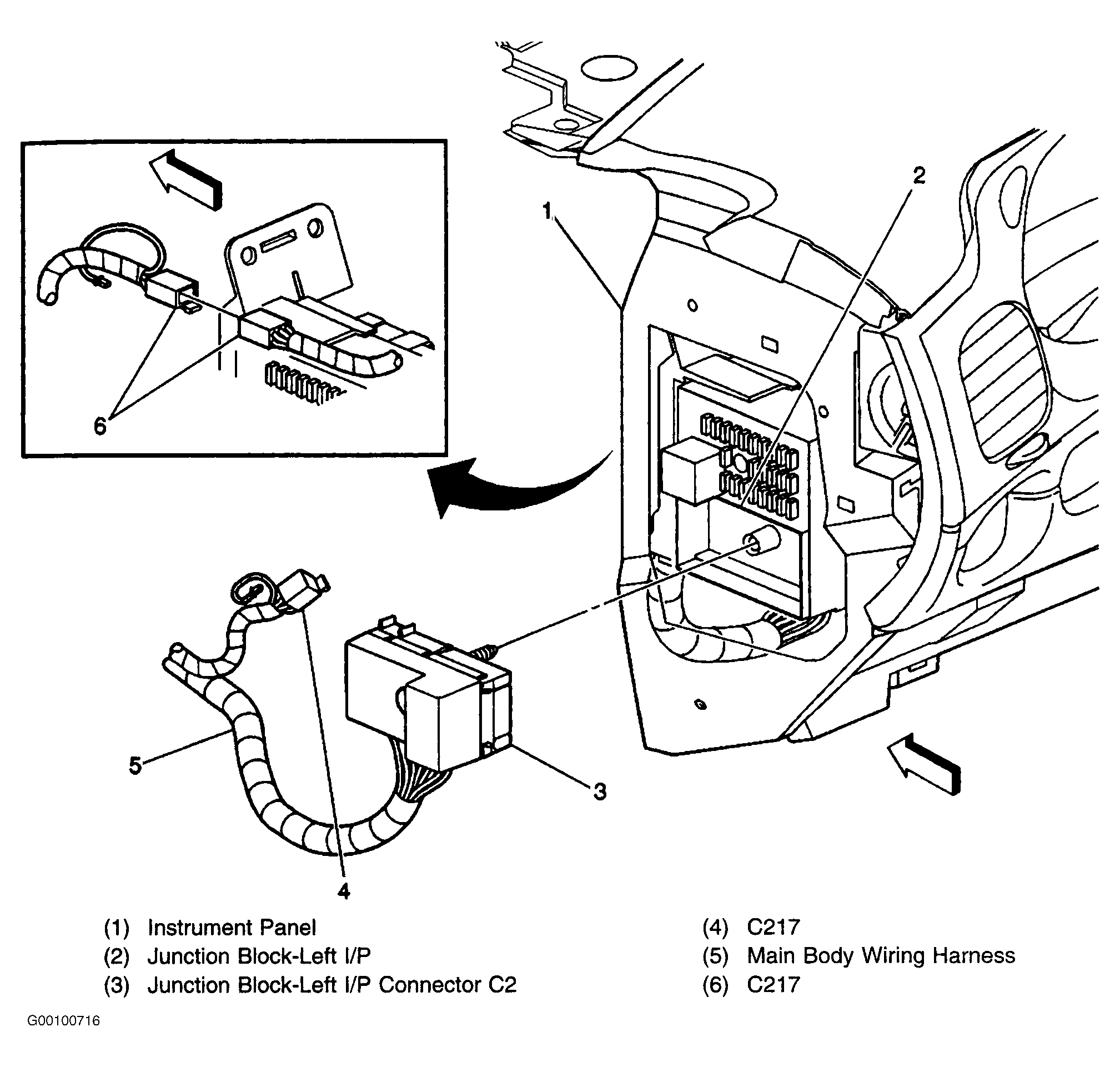

Left instrument panel fuse block is located of driver's side end of instrument panel. See Fig 1.

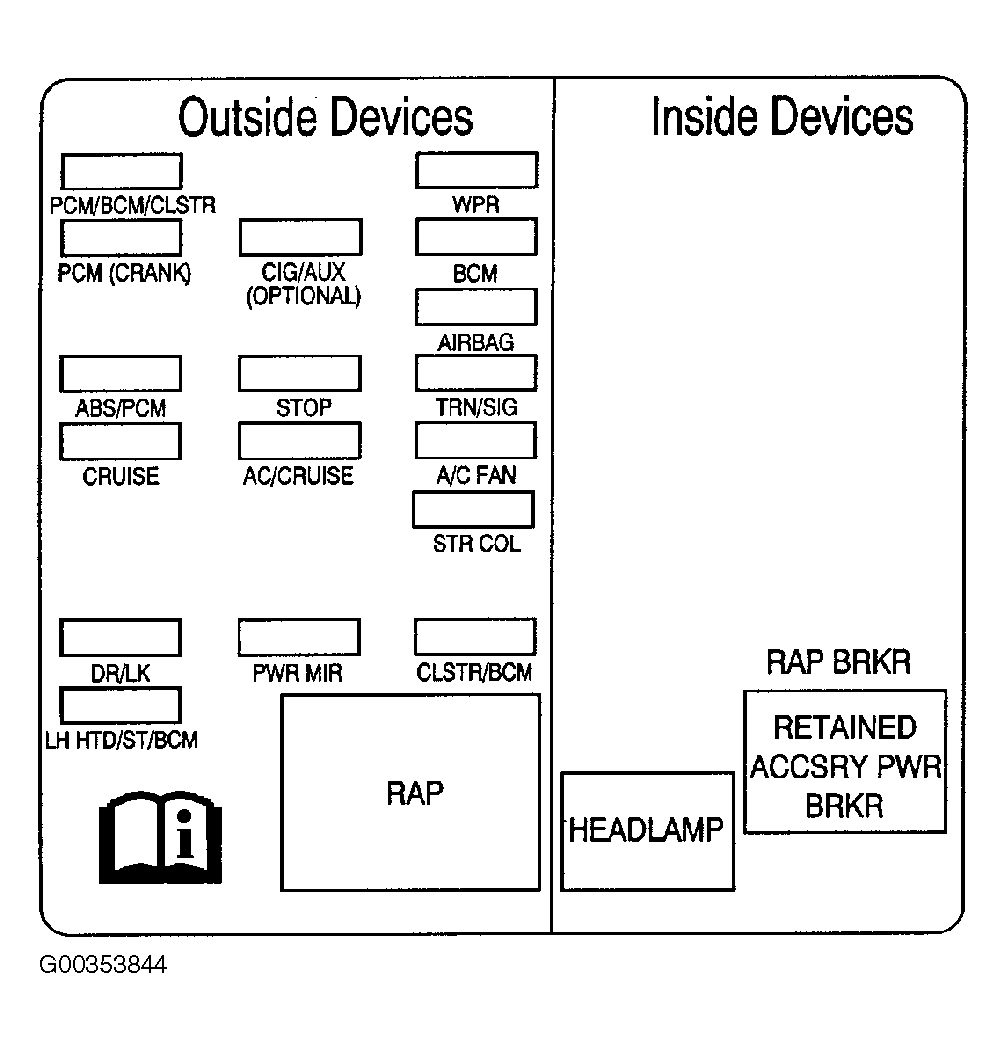

LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (1 OF 3)
| Fuses | Usage |
|---|---|
| PCM/BCM/CLSTR | Powertrain Control Module, Body Control Module, Cluster (Ignition 0) |
| WSW | Windshield Wipers, Windshield Washer |
| PCM (CRANK) | Powertrain Control Module (Crank) |
| CIG/AUX | Accommodated Device (Accessory) |
| BCM | Body Control Module (Accessory) |
| SRS | Supplemental Restraint System |
| ABS/PCM | Anti-Lock Brake System, Powertrain Control Module, Brake Switch, Crank Relay, Canister Vent Solenoid (Run, Crank) |
| STOP | Brake Lamps, Body Control Module (Run, Crank) |
| TURN SIGNAL | Turn Signal Flashers |
| CRUISE | Cruise Control Steering Column Controls |
| AC/CRUISE | HVAC Temp Door Motors & Module, Cruise Control Module |
| A/CFAN | HVAC Blower |
| STR COL | Steering Wheel Lighting |
| DRLK | Body Control Module, Door Lock Controls |
| PWR MIR | Power Mirrors |
| CLSTR/BCM | Cluster, Body Control Module, Data Link Connector (Battery) |
| LH HTD ST/BCM | Driver's Heated Seat, Body Control Module, Battery controlled Loads |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (2 OF 3)
| Circuit Breakers | Usage |
|---|---|
| RETAINED ACCESSORY PWR BRKR | Power Windows, Sunroof Breaker |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2002-03) (3 OF 3)
| Relays | Usage |
|---|---|
| RETAINED ACCESSORY PWR RELAY | Retained Accessory Power Relay |
| HEADLAMP RELAY | Headlamp Relay |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (1 OF 3)
| Fuses | Usage |
|---|---|
| PCM/BCM/CLSTR | Powertrain Control Module, Body Control Module, Cluster (Ignition 0) |
| WSW | Windshield Wipers, Windshield Washer |
| PCM (CRANK) | Powertrain Control Module (Crank) |
| CIG/AUX | Accommodated Device (Accessory) |
| BCM | Body Control Module (Accessory) |
| AIR BAG | Supplemental Restraint System |
| ABS/PCM | Anti-Lock Brake System, Powertrain Control Module, Brake Switch, Crank Relay, Canister Vent Solenoid (Run, Crank) |
| STOP | Brake Lamps, Body Control Module (Run, Crank) |
| TURN SIGNAL | Turn Signal Flashers |
| CRUISE | Cruise Control Steering Column Controls |
| AC/CRUISE | HVAC Temp Door Motors & Module, Cruise Control Module |
| A/C FAN | HVAC Blower |
| STR COL | Steering Wheel Lighting |
| DRLK | Body Control Module, Door Lock Controls |
| PWR MIR | Power Mirrors |
| CLSTR/BCM | Cluster, Body Control Module, Data Link Connector (Battery) |
| LH HTD ST/BCM | Driver's Heated Seat, Body Control Module, Battery controlled Loads |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (2 OF 3)
| Circuit Breakers | Usage |
|---|---|
| RETAINED ACCESSORY PWR BRKR | Power Windows, Sunroof Breaker |
LEFT SIDE INSTRUMENT PANEL FUSE BLOCK CIRCUIT IDENTIFICATION (2004) (3 OF 3)
| Relays | Usage |
|---|---|
| RETAINED ACCESSORY PWR RELAY | Retained Accessory Power Relay |
| HEADLAMP RELAY | Headlamp Relay |
