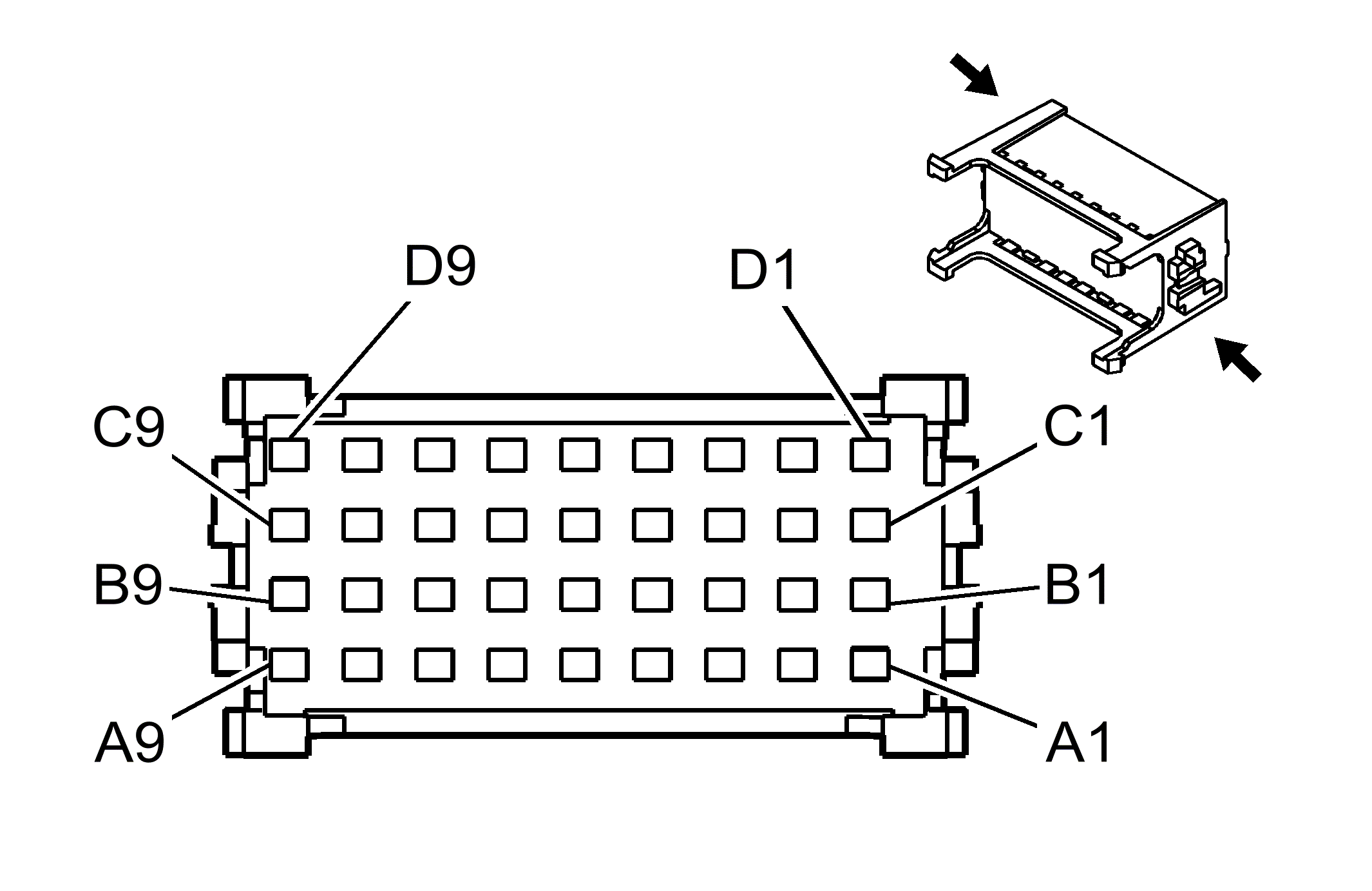

Fuse Block Connector End View - SEO

Fuse Block - SEO

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12160504 36-Way F Metri-Pack 280 Flexlock (BLK)
Pin	Wire Color	Circuit No.	Function
A1-A9	-	-	Not Used
B1	LT GRN	2236	SEO Relay Supplied Voltage
B2	-	-	Not Used
B3	LT BLU	2233	SEO Relay Control
B4	-	-	Not Used
B5	DK GRN	2237	SEO Relay Supplied Voltage
B6	-	-	Not Used
B7	DK BLU	2235	SEO Relay Control
B8-B9	-	-	Not Used
C1	BLK	1050	Ground
C2	-	-	Not Used
C3	ORN	3840	Battery Positive Voltage
C4	-	-	Not Used
C5	BLK	1050	Ground
C6	-	-	Not Used
C7	ORN	3940	Battery Positive Voltage
C8-C9	-	-	Not Used
D1-D9	-	-	Not Used
