Connector Identification

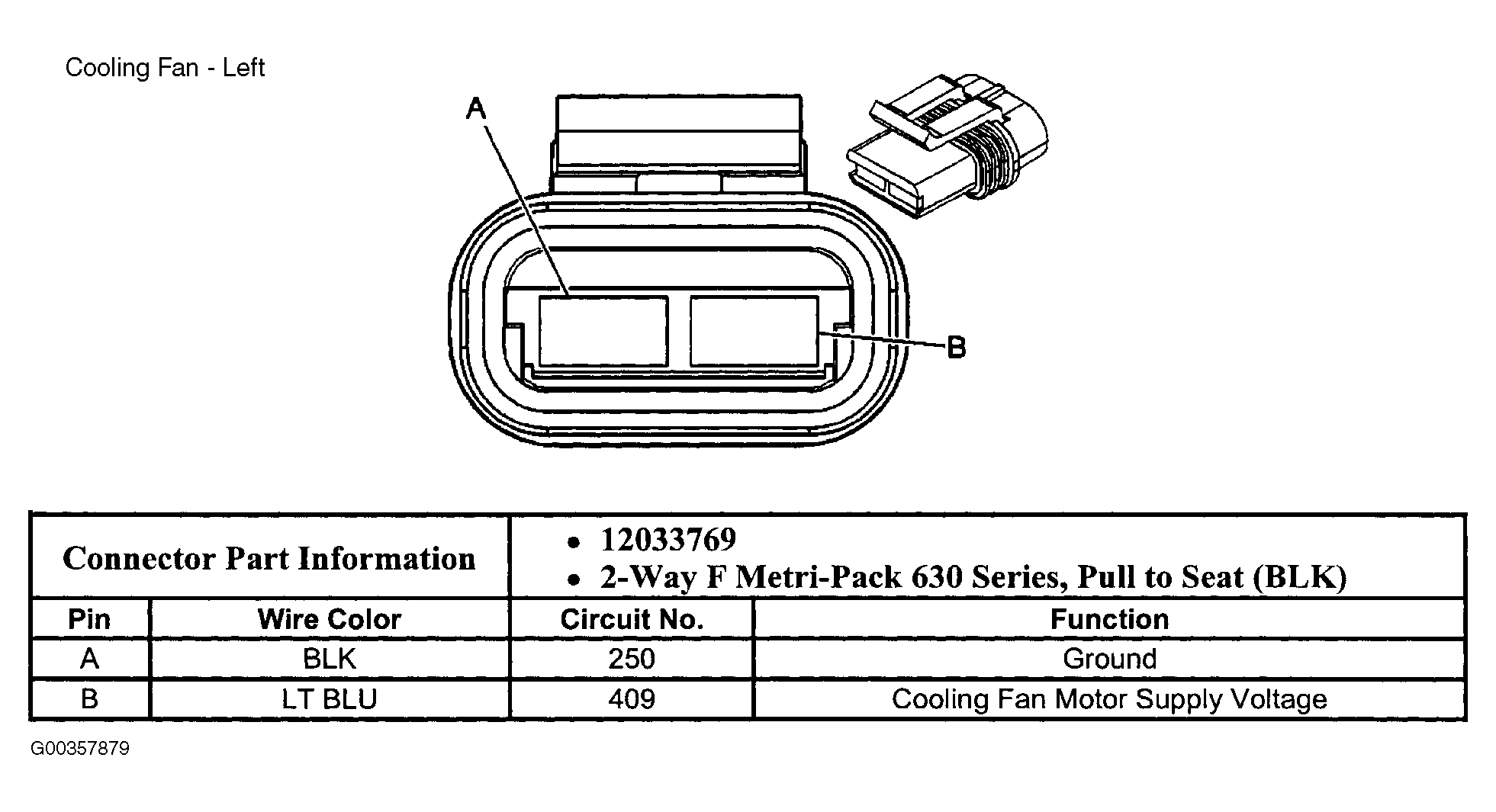

Fig 1: Identifying Left Cooling Fan Connector
G00357879Courtesy of GENERAL MOTORS CORP.

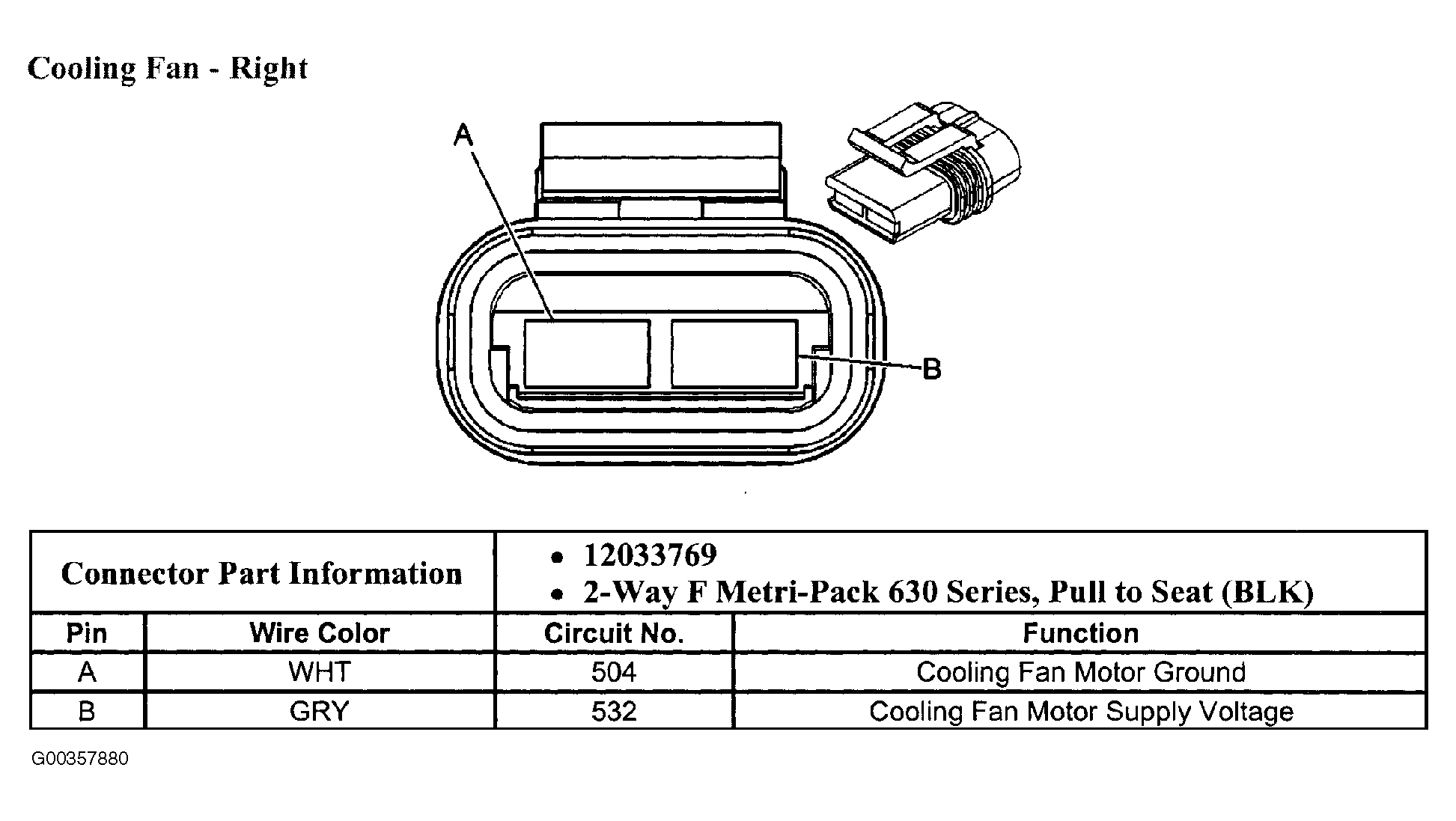

Fig 2: Identifying Right Cooling Fan Connector
G00357880Courtesy of GENERAL MOTORS CORP.
