Data Link Connector (DLC)
Locations View:

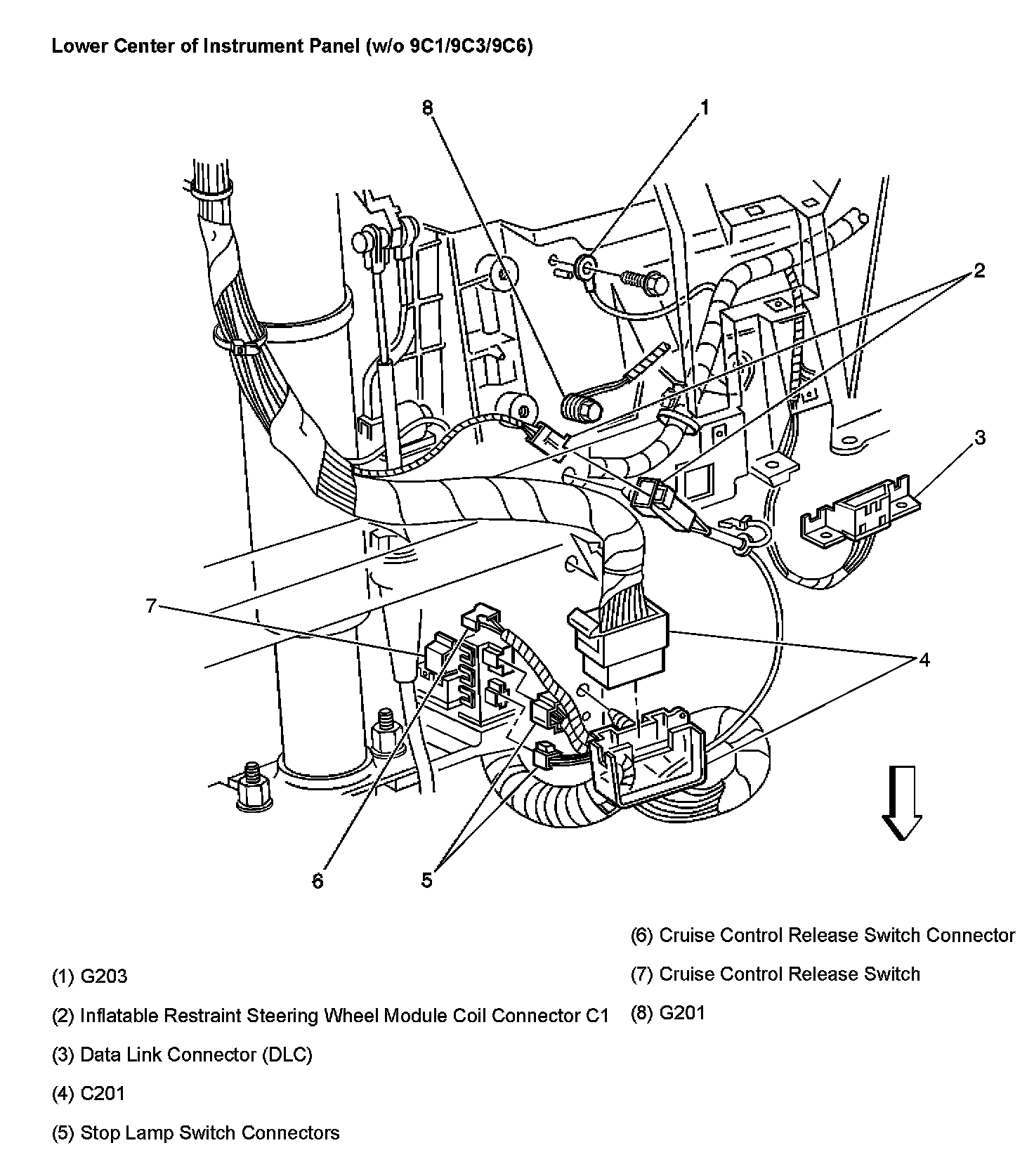

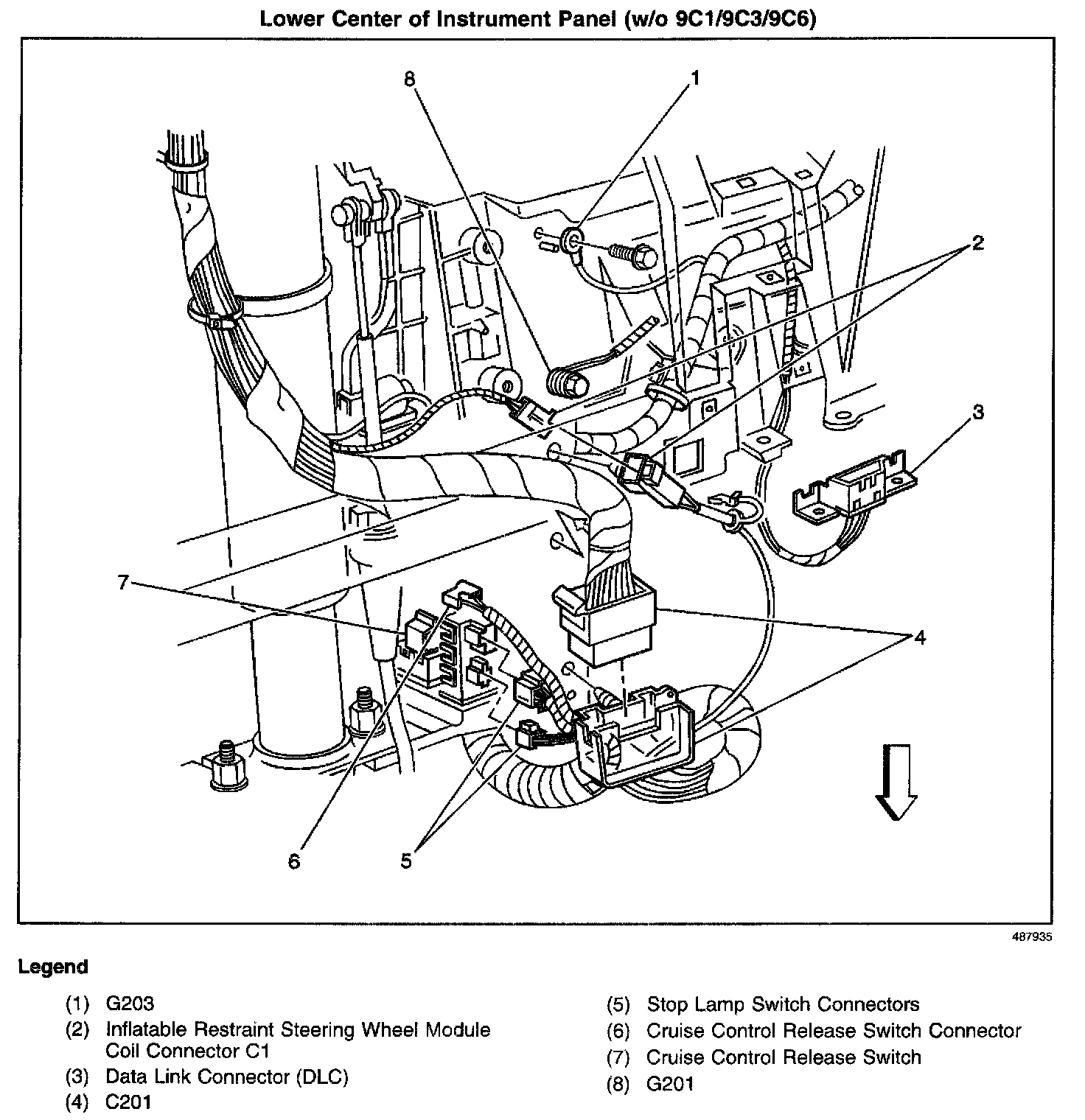

Lower Center Of Instrument Panel(Without RPO Code 9C1/9C3/9C6):
