Engine Block and Components

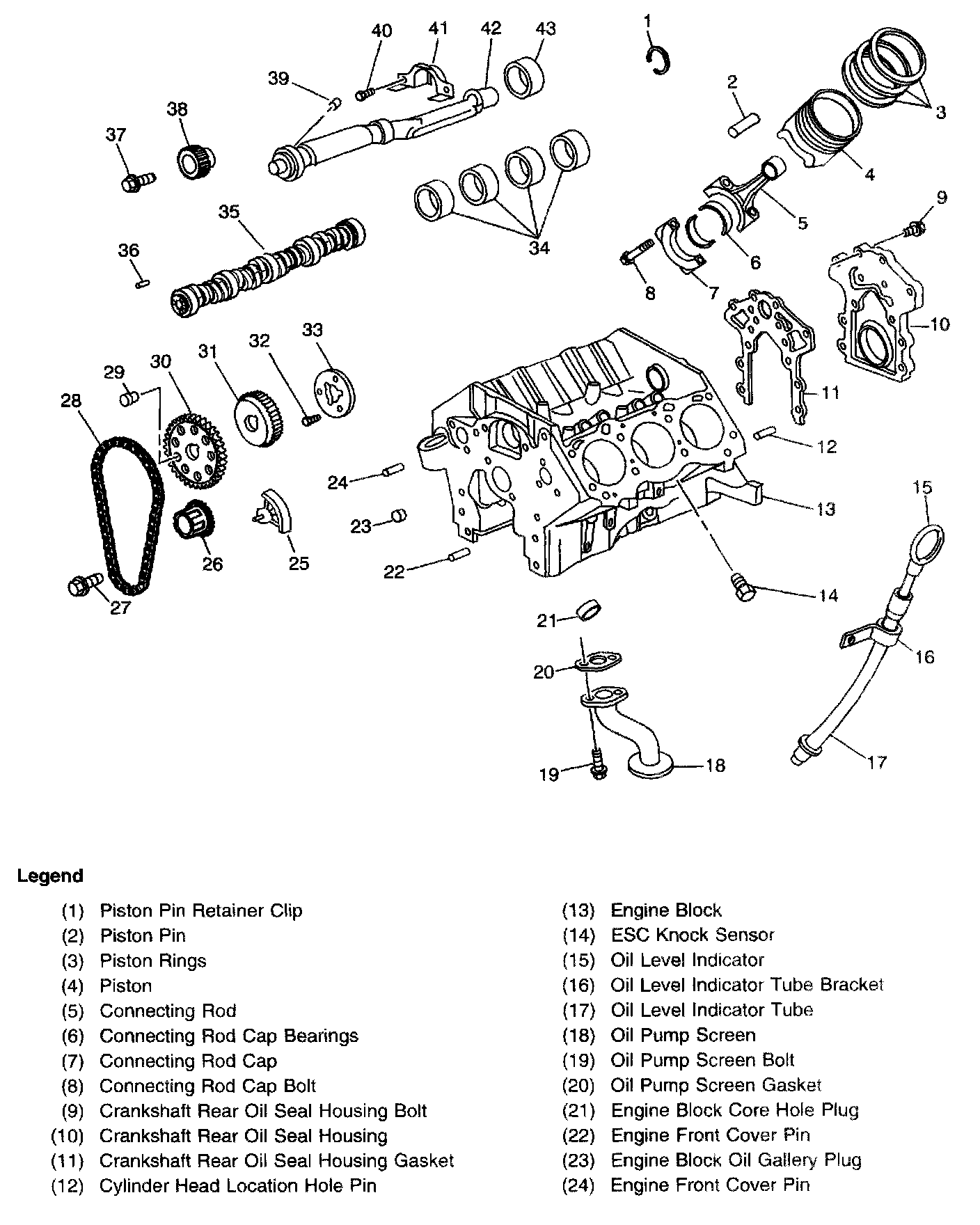

Engine Block Components (Part 1 Of 2):



Engine Block Components (Part 2 Of 2):
