Coolant Temperature Sensor/Switch (For Computer): Locations

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

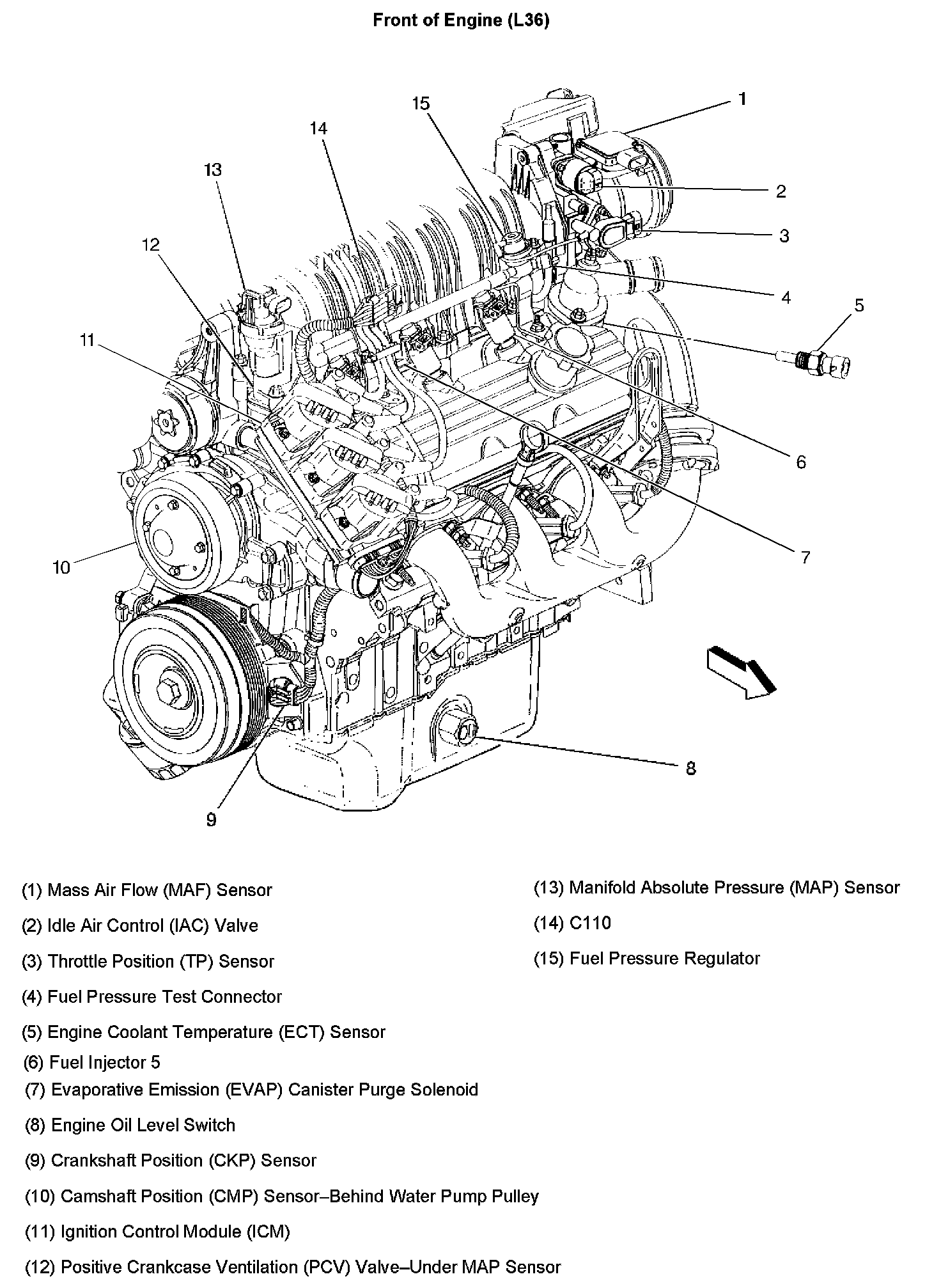

Front of Engine:

The Engine Coolant Temperature (ECT) Sensor is located on the left side of the engine, below the thermostat outlet.
