Body Control System Component Views

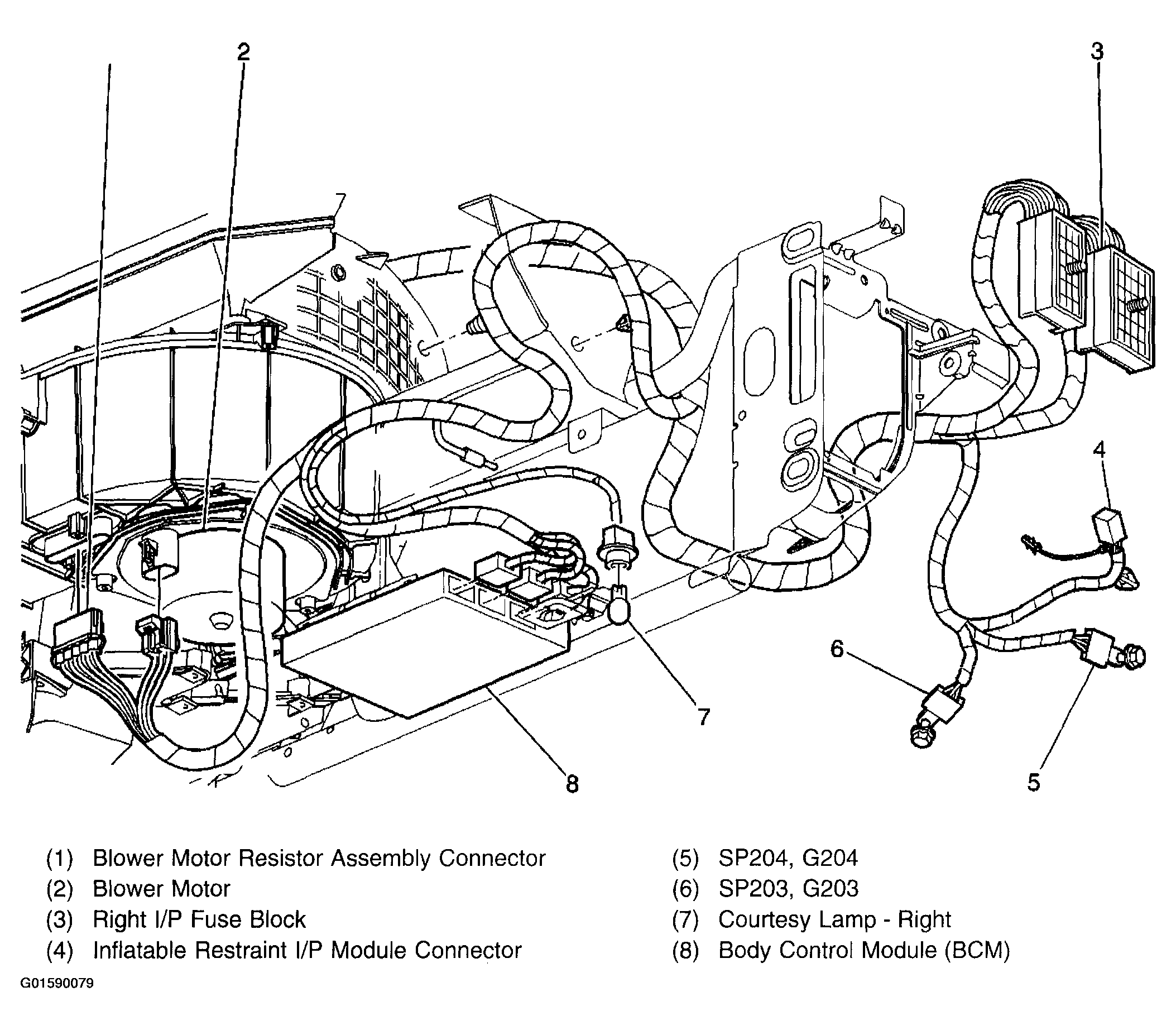

Fig 1: Identifying Body Control System Component Views (Under Right Side Of Instrument Panel)
G01590079Courtesy of GENERAL MOTORS CORP.
