Body Control System Connector End Views

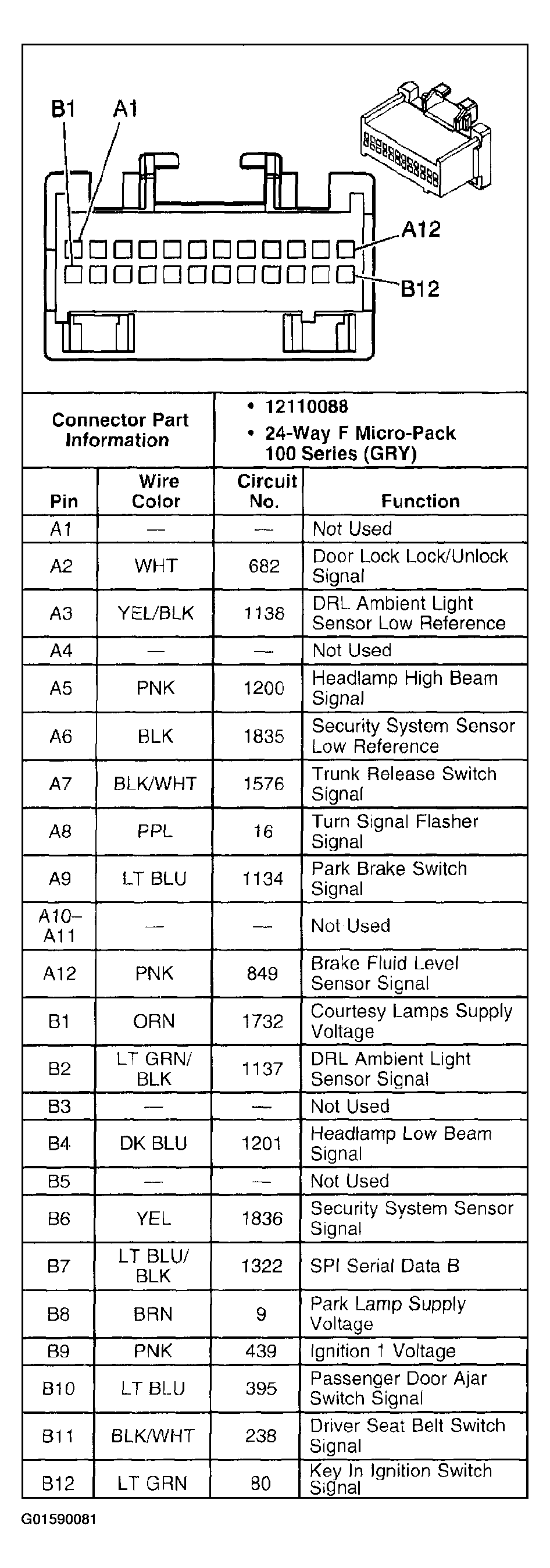

Fig 1: Identifying Connector Terminals Of Body Control Module (BCM) C1

Courtesy of GENERAL MOTORS CORP.

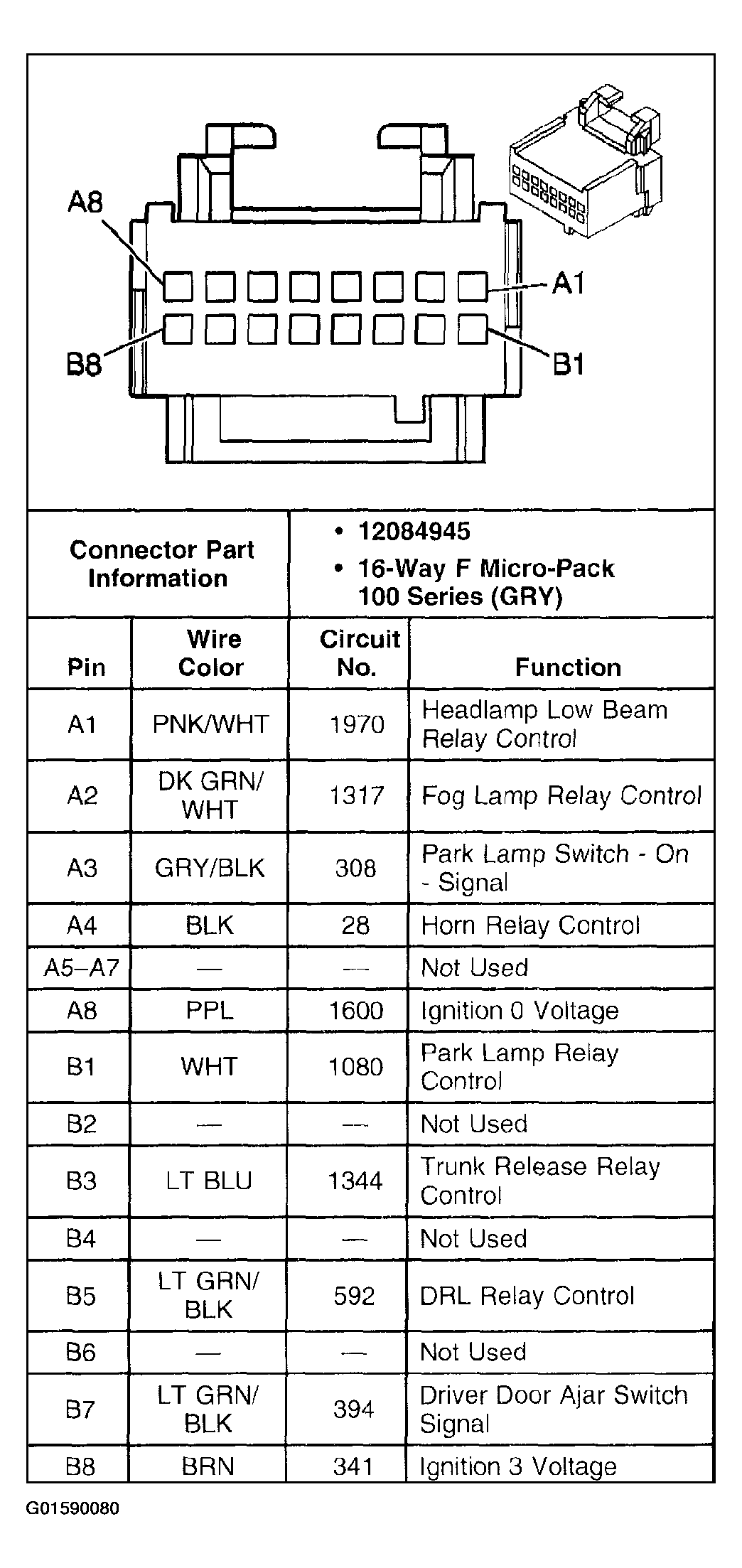

Fig 2: Identifying Connector Terminals Of Body Control Module (BCM) C2

Courtesy of GENERAL MOTORS CORP.

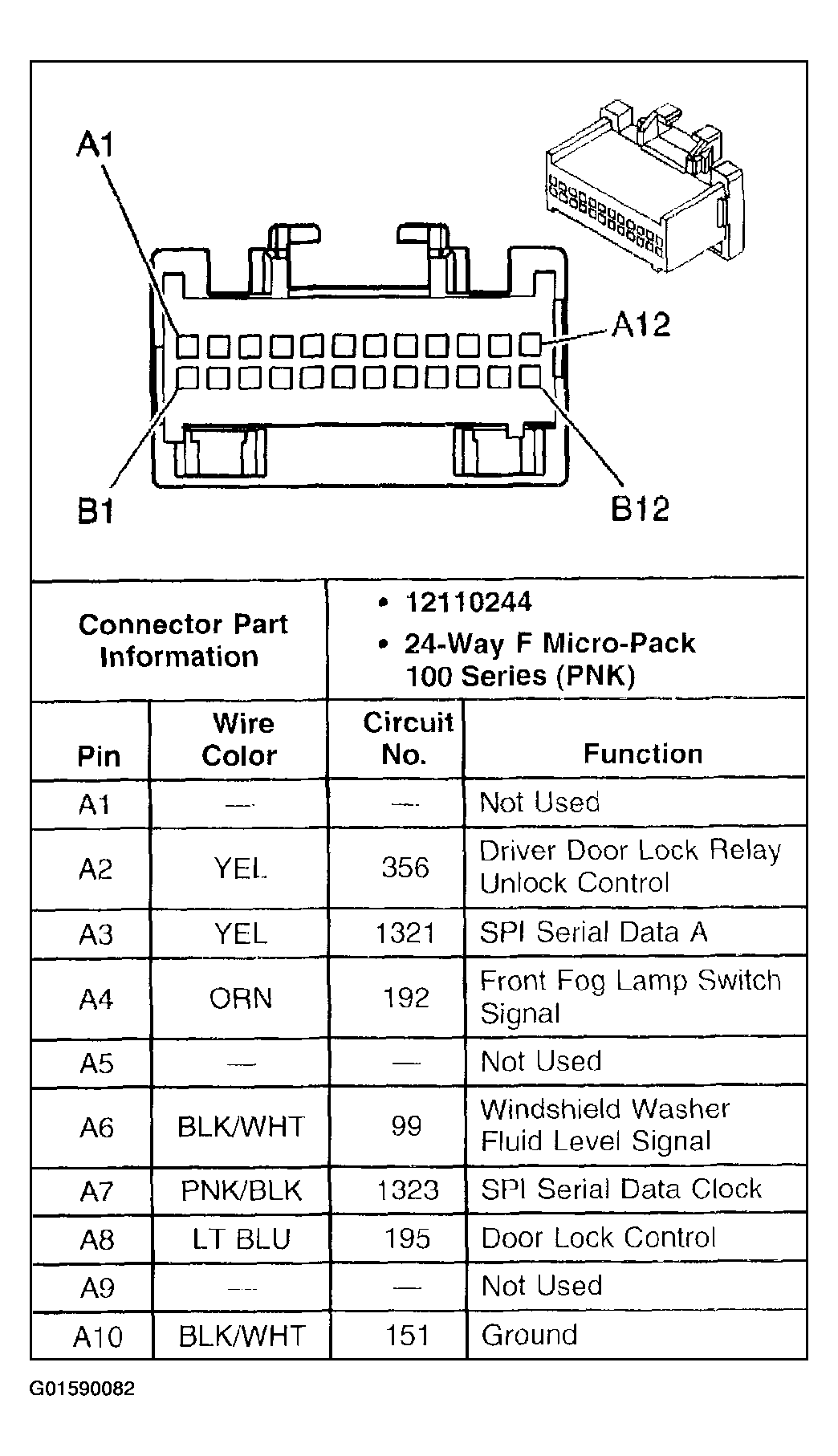

Fig 3: Identifying Connector Terminals Of Body Control Module (BCM) C3 (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

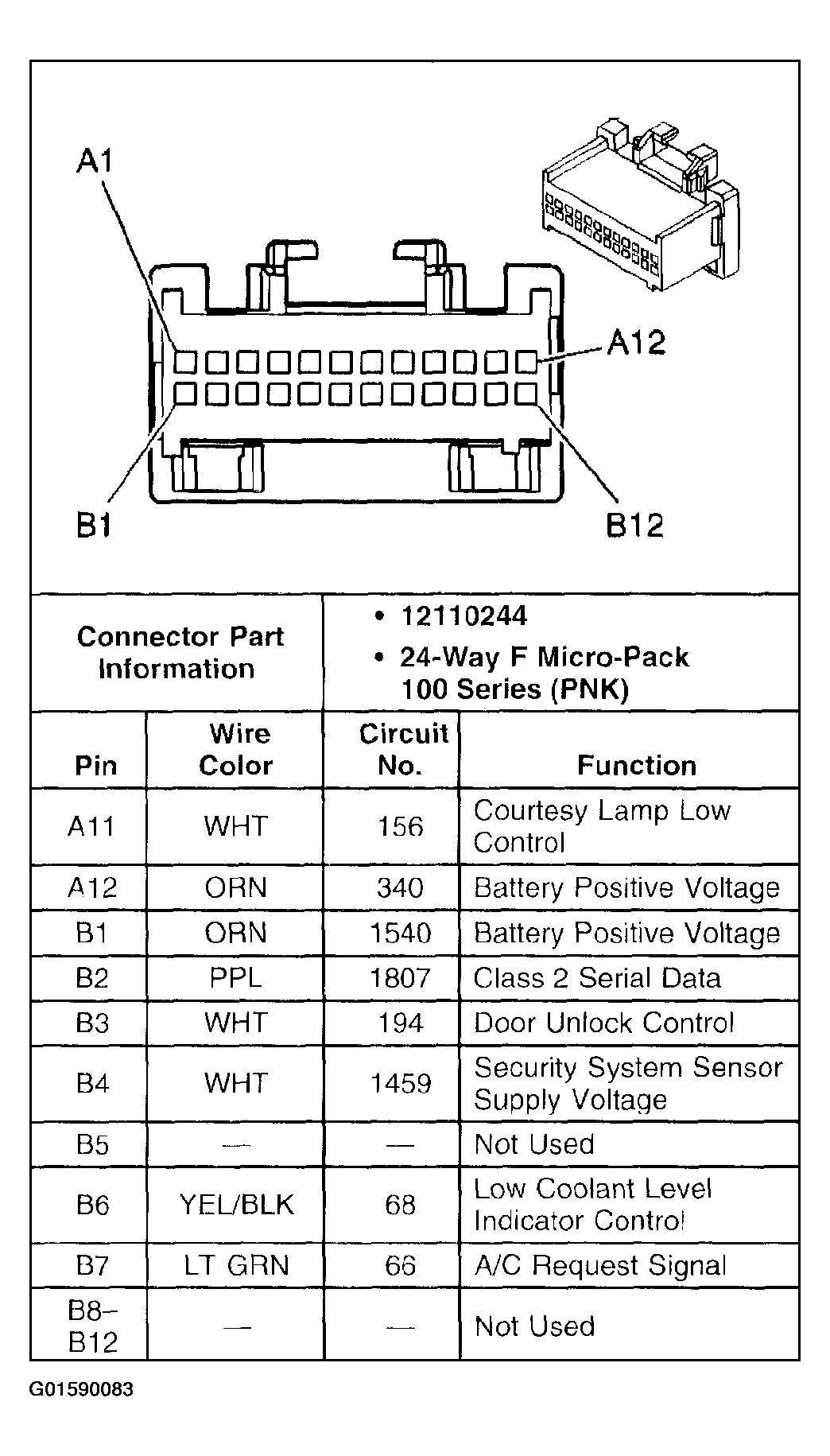

Fig 4: Identifying Connector Terminals Of Body Control Module (BCM) C3 (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
