Removal Procedure
- Remove the rear compartment lamp housing for access. Refer to REAR COMPARTMENT LAMP REPLACEMENT in Lighting Systems.

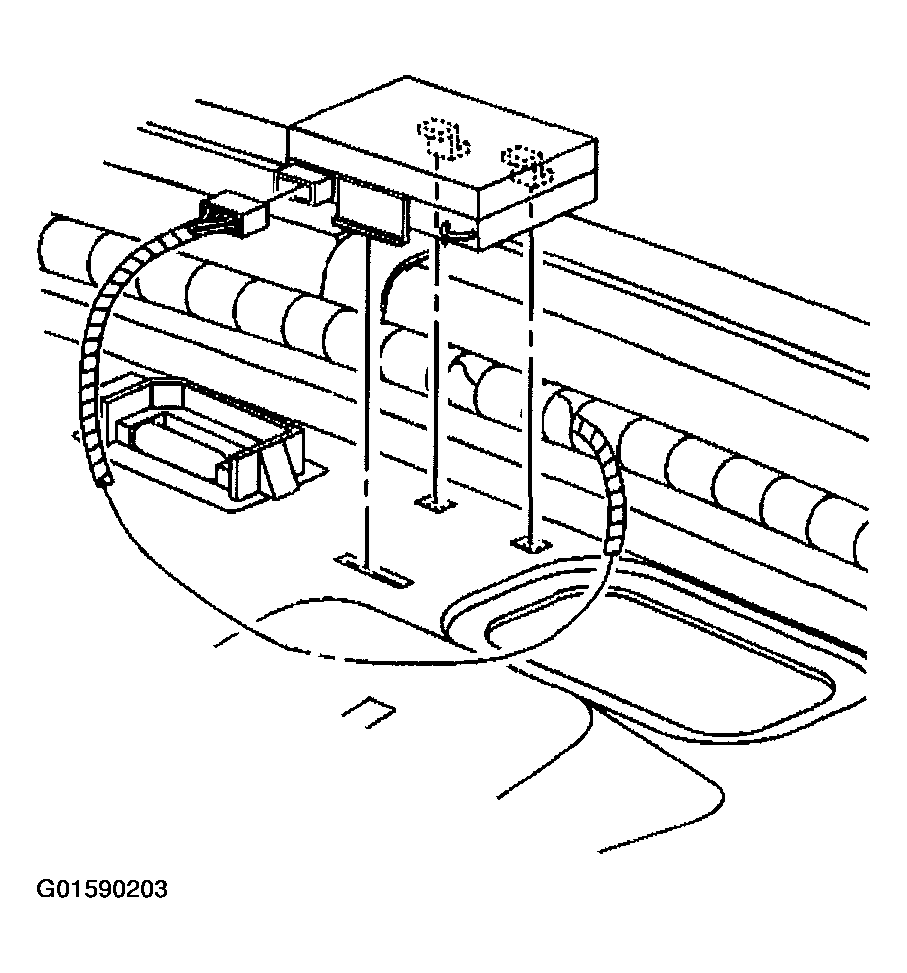

- Look for the mounting tabs just to the right of the center access hole on the rear package shelf.
Compress the tabs and slide the receiver down through the access hole.
- Disconnect the electrical connector from the remote door lock receiver.
- Remove the remote door lock receiver.
