ABS Connector End Views

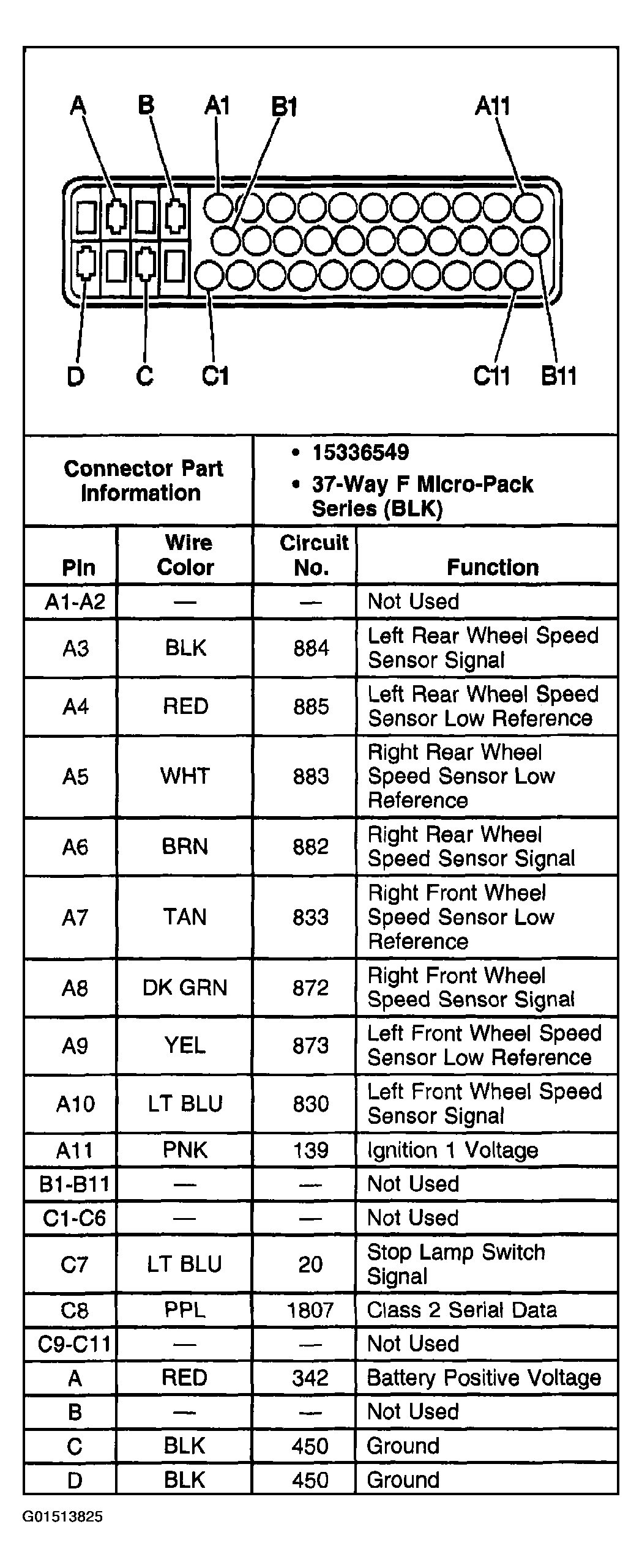

Fig 1: Identifying ABS Connector End Views - Electronic Brake Control Module (EBCM)

Courtesy of GENERAL MOTORS CORP.

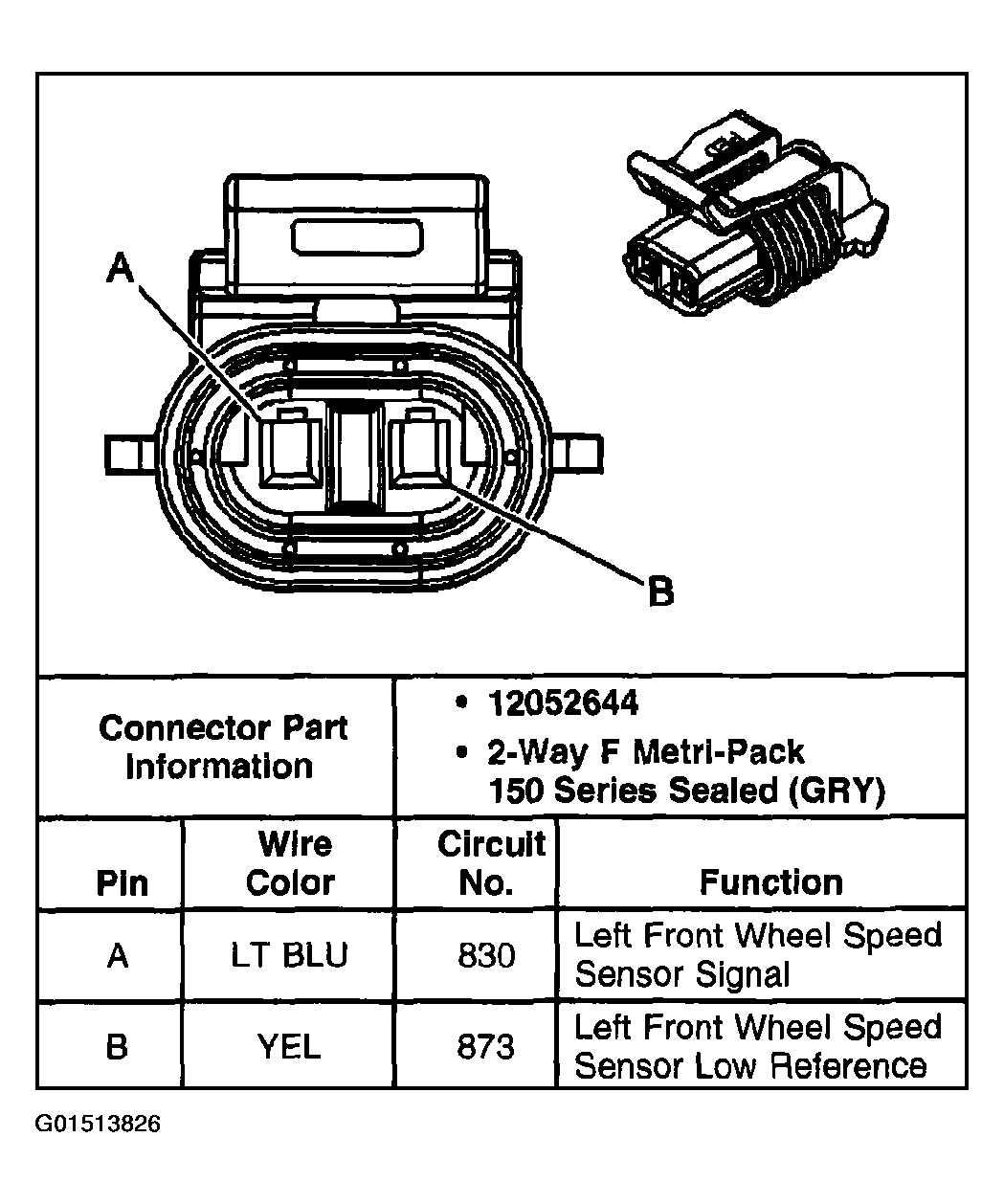

Fig 2: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - LF

Courtesy of GENERAL MOTORS CORP.

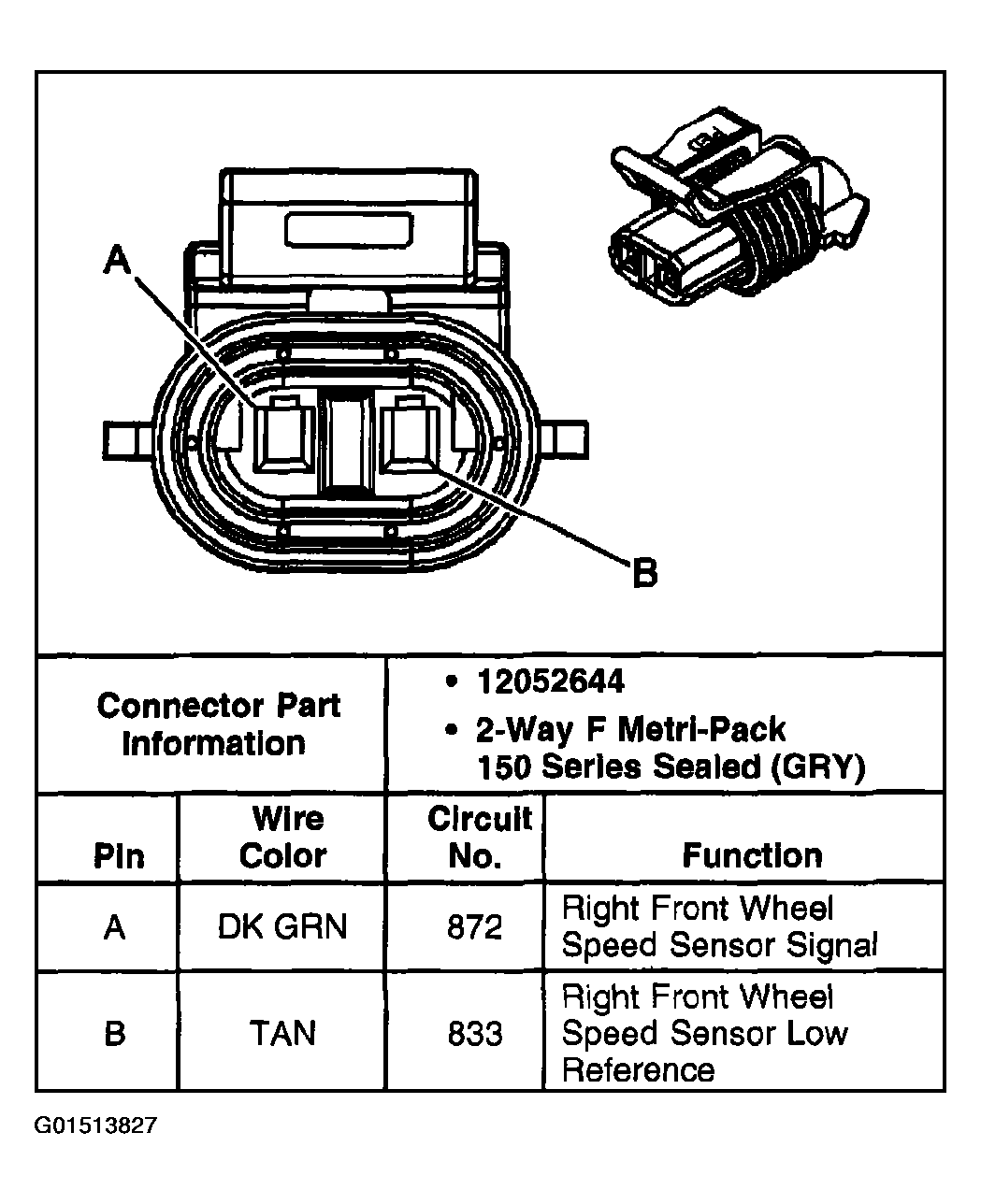

Fig 3: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - RF

Courtesy of GENERAL MOTORS CORP.

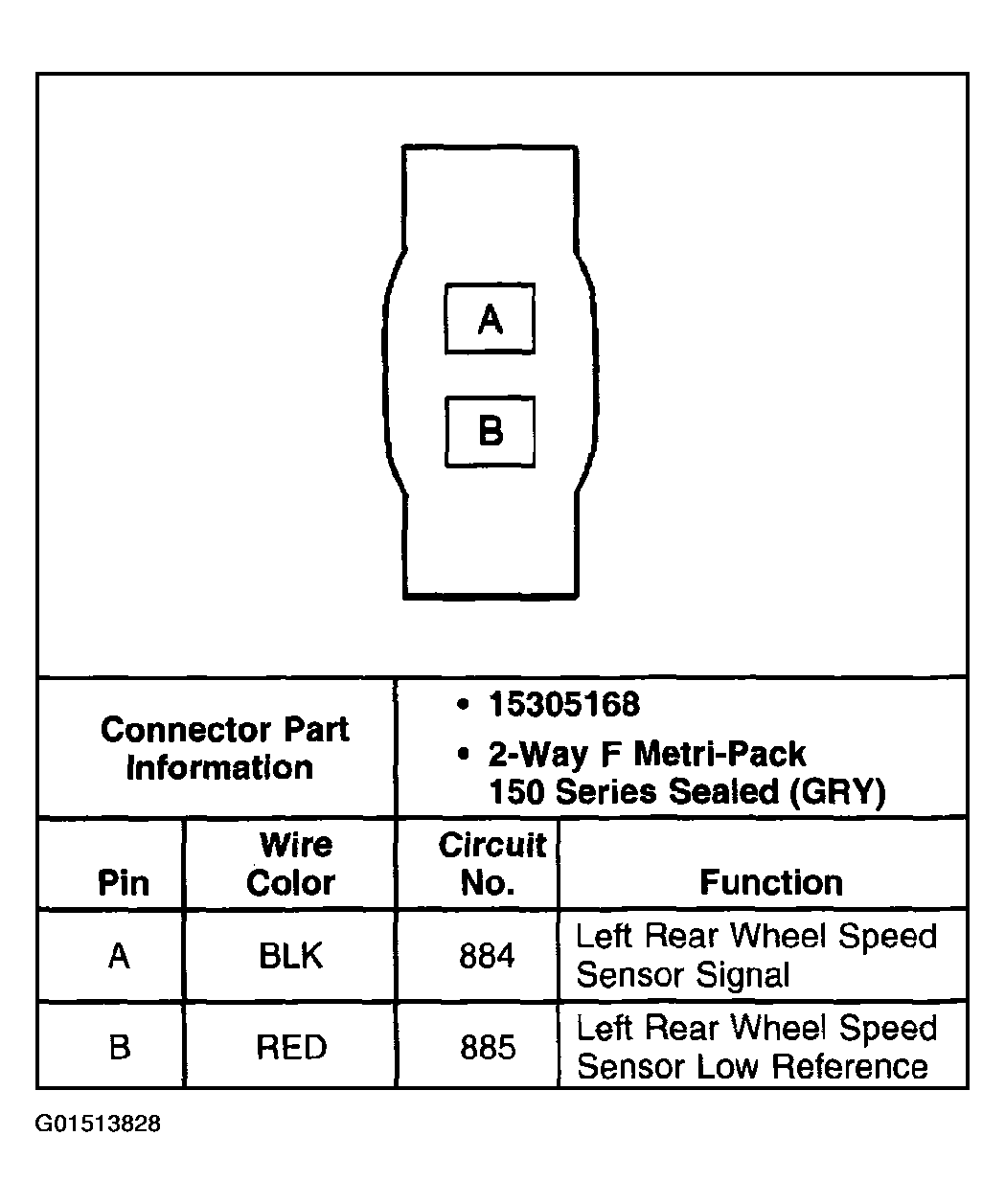

Fig 4: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - LR

Courtesy of GENERAL MOTORS CORP.

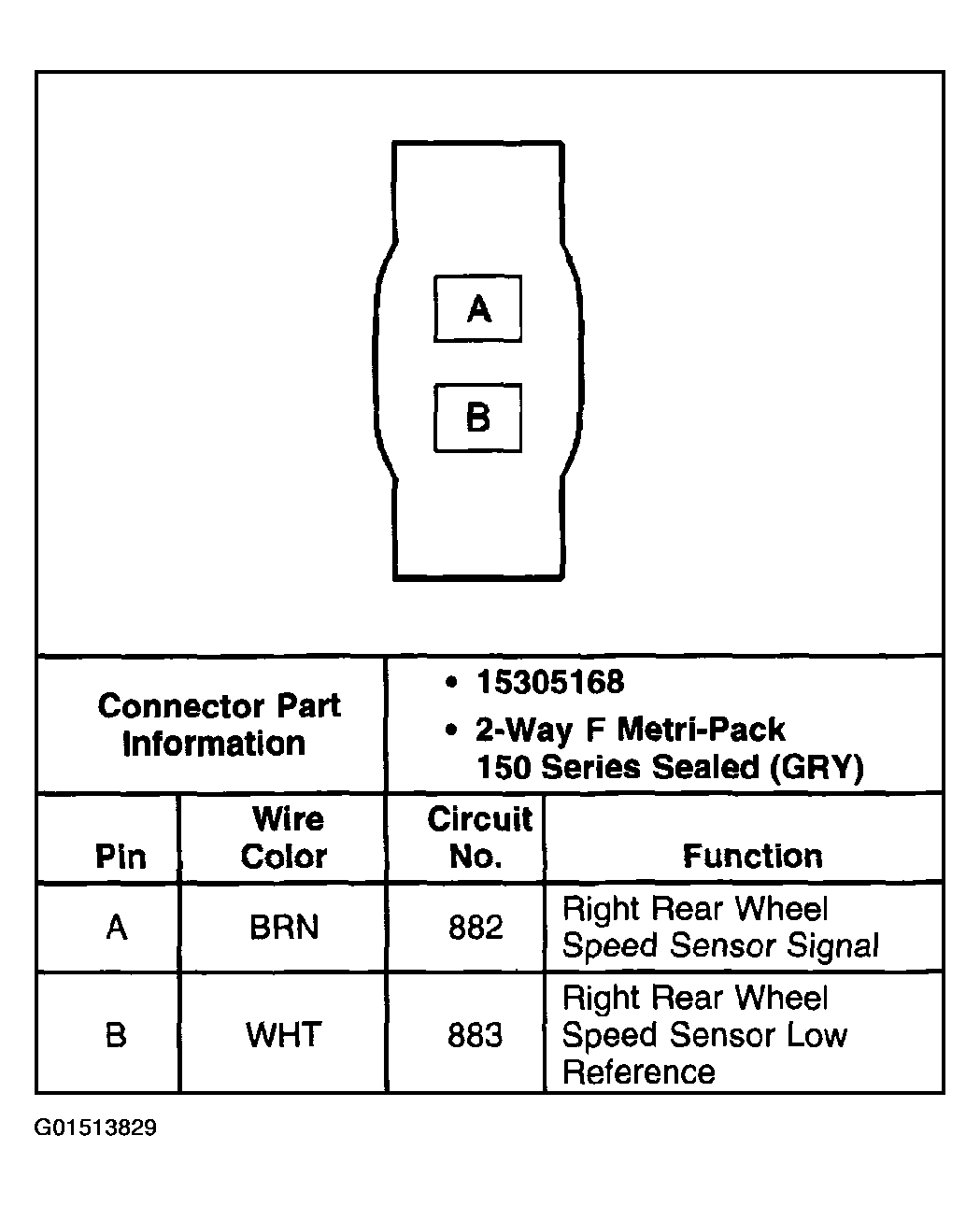

Fig 5: Identifying ABS Connector End Views - Wheel Speed Sensor (WSS) - RR

Courtesy of GENERAL MOTORS CORP.
