Removal Procedure

NOTE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.
  1. Raise and support the vehicle on a suitable hoist. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the left engine splash shield.
  3. Remove the Connector Position Assurance (CPA) (2) from the connector lock tab (1).
  4. Push the lock tab (1) down and then move the sliding connector cover to the open position.

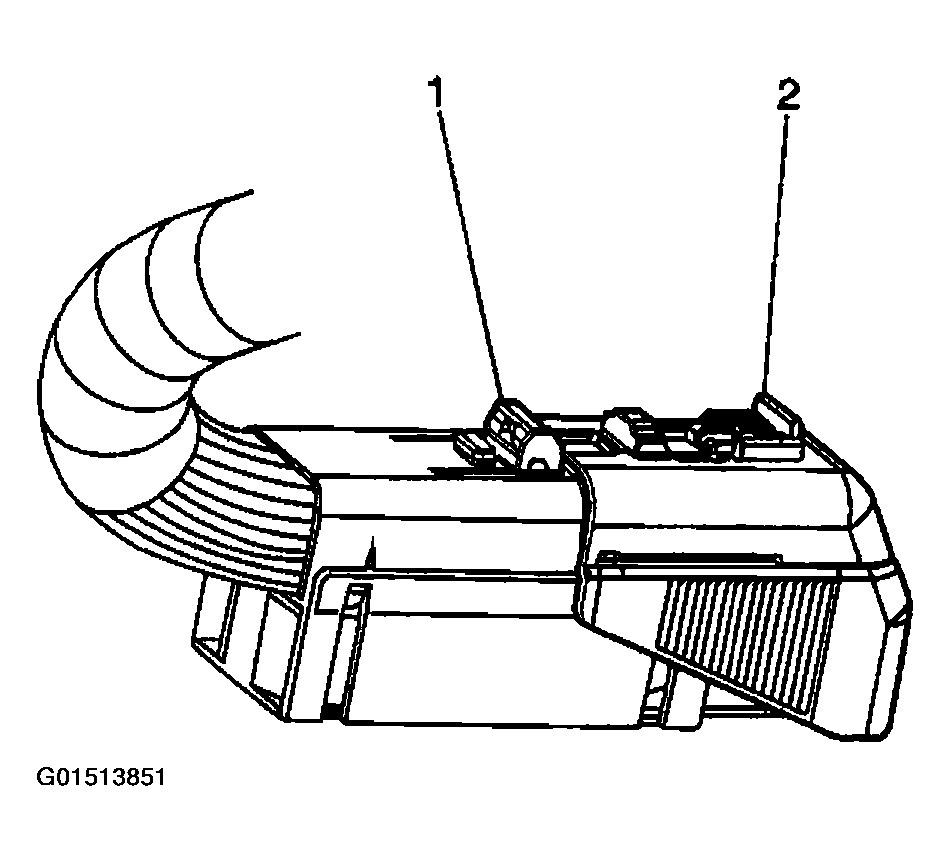

    Fig 1: Identifying Connector Position Assurance (CPA) & Connector Lock Tab
    G01513851Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the EBCM harness connector (2) from the EBCM (1).
  6. Brush off any dirt or debris that has accumulated on the EBCM/BPMV assembly.

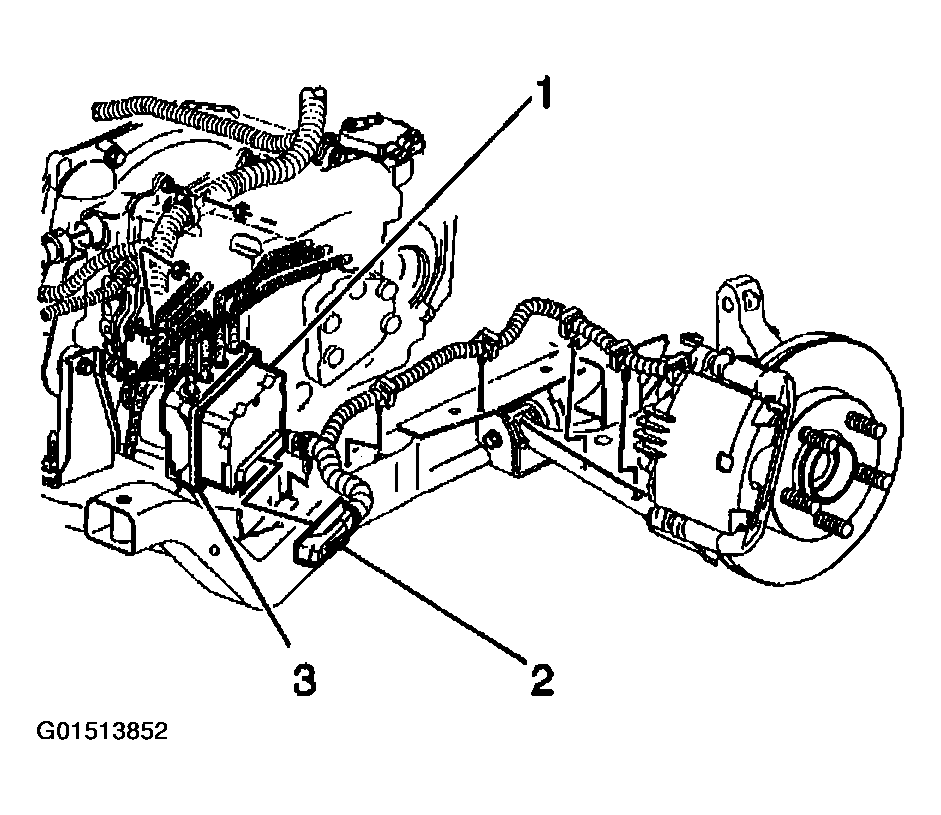

    Fig 2: Disconnecting EBCM Harness Connector From EBCM
    G01513852Courtesy of GENERAL MOTORS CORP.
  7. Remove the 4 EBCM to BPMV screws.

    Important:

    • Do not pry apart using a tool. Be careful not to damage the BPMV surface.
    • Care must be taken not to damage the solenoid valves when the EBCM is removed from the BPMV.
  8. Remove the EBCM (1) from the BPMV (2) by gently pulling apart until separated.

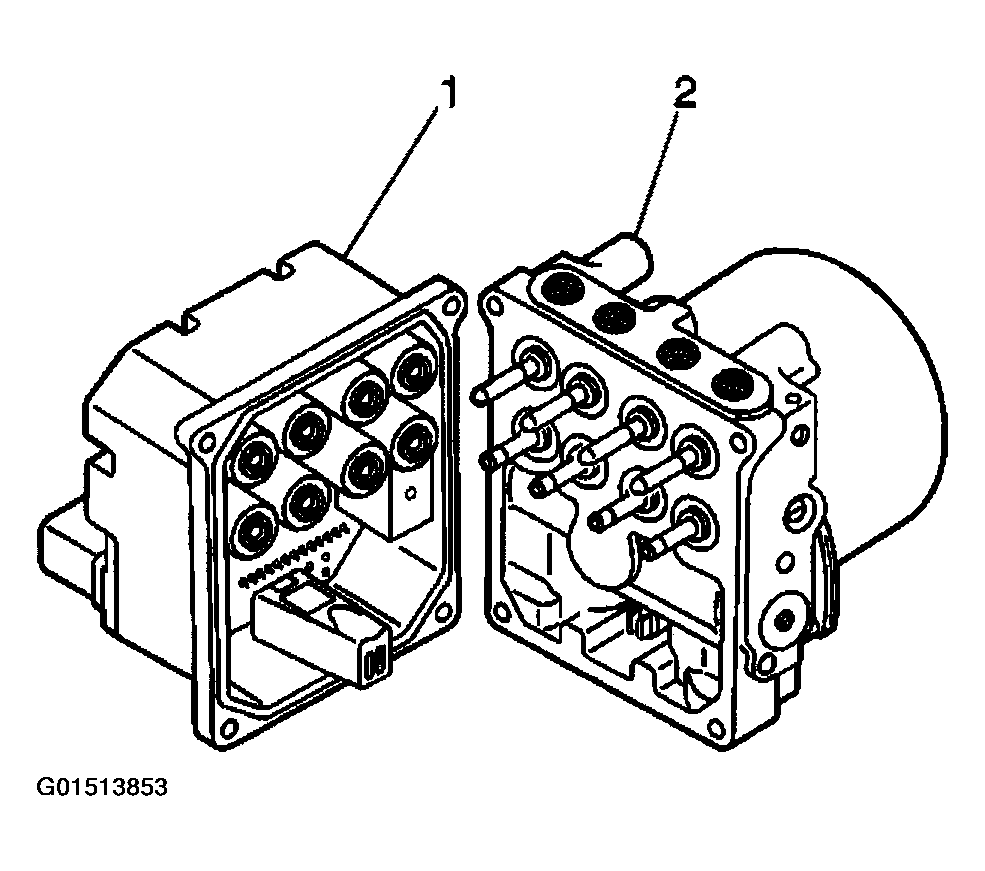

    Fig 3: Removing EBCM From BPMV
    G01513853Courtesy of GENERAL MOTORS CORP.
