Engine Electrical Connector End Views

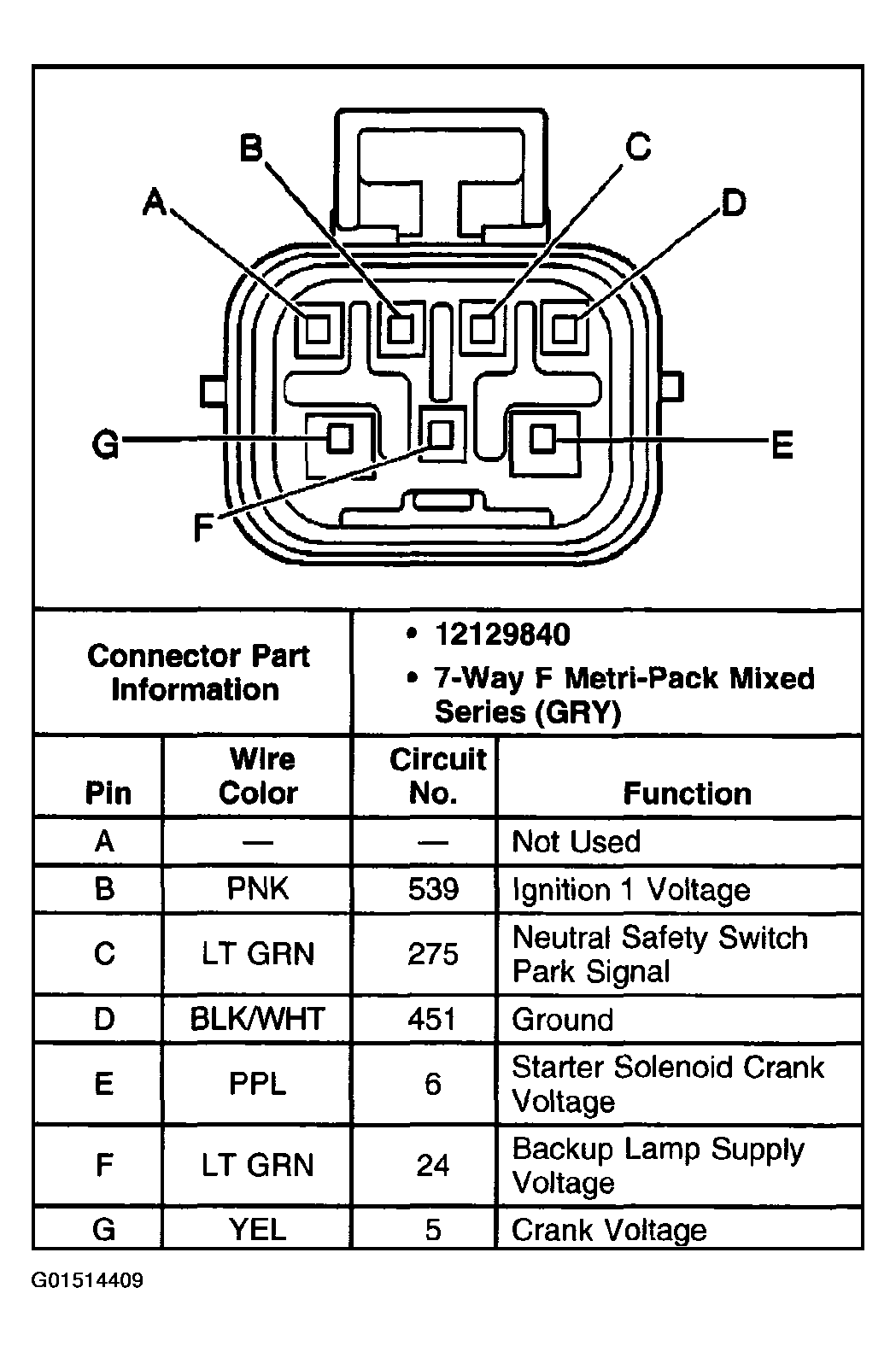

Fig 1: Engine Electrical Connector End Views - Park/Neutral Position (PNP) Switch C1
G01514409Courtesy of GENERAL MOTORS CORP.

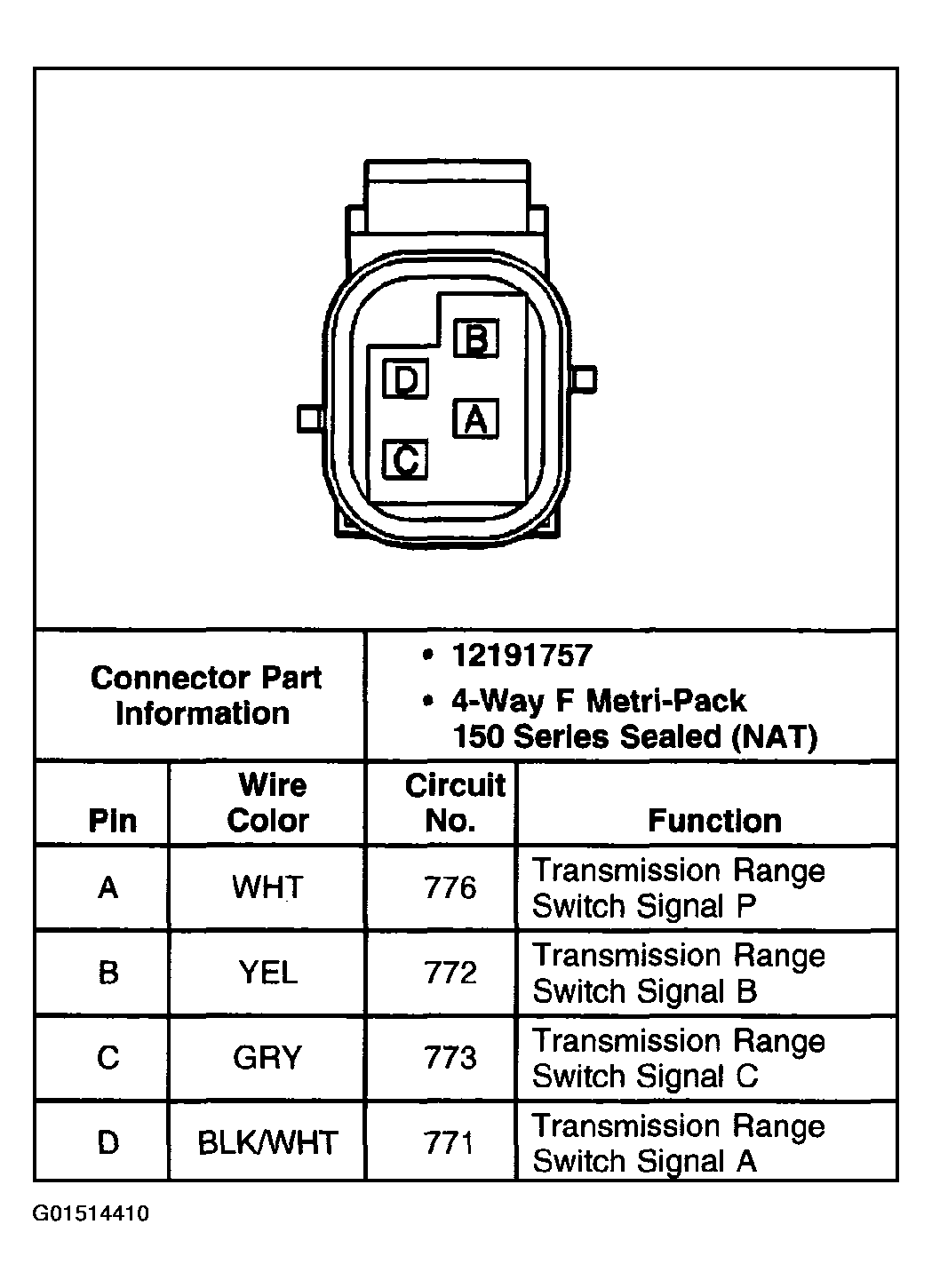

Fig 2: Engine Electrical Connector End Views - Park/Neutral Position (PNP) Switch C2
G01514410Courtesy of GENERAL MOTORS CORP.
