I/P Dimming Module Connector End View

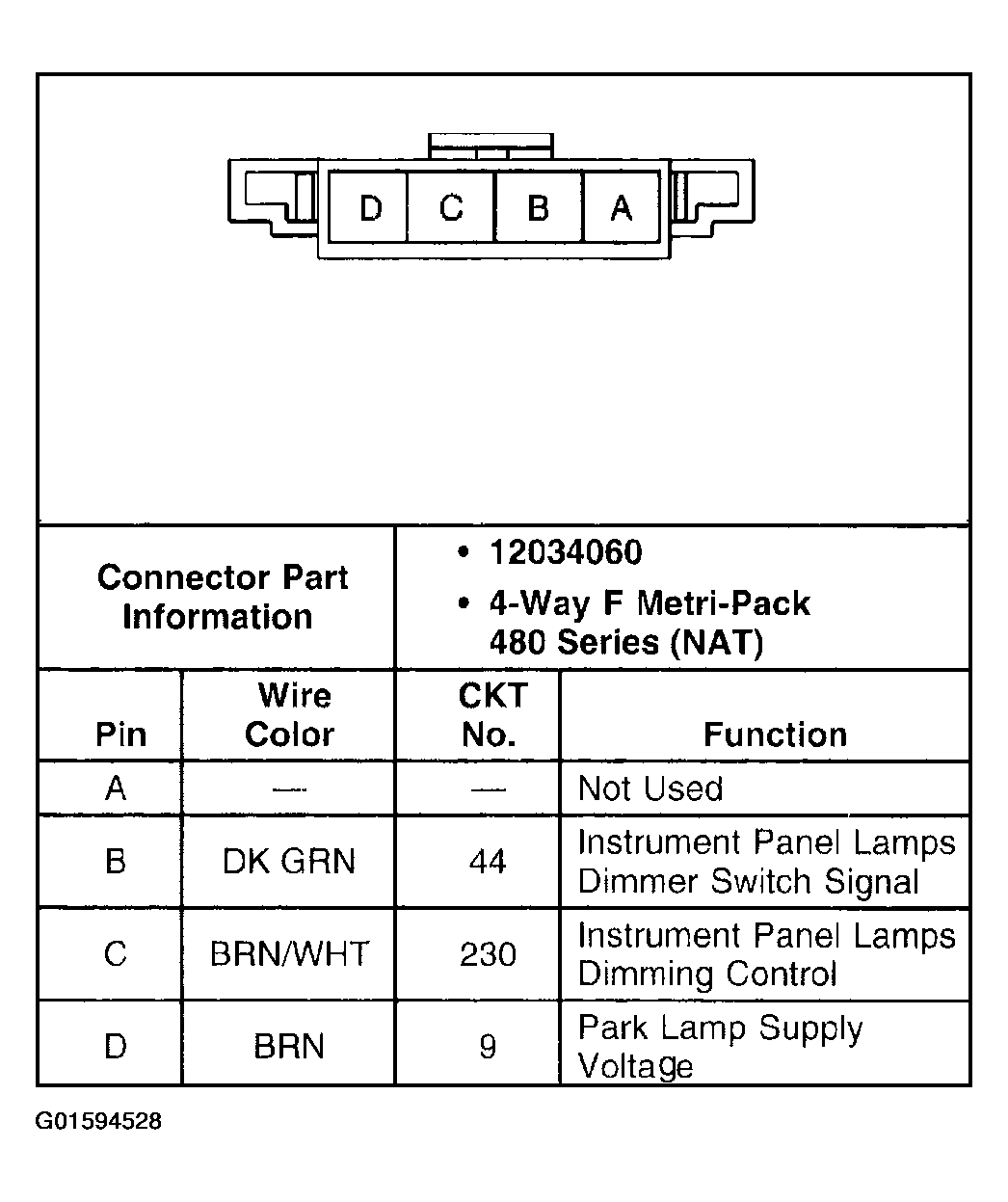

Fig 1: I/P Dimming Module Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
