Spark Plug: Inspection
NOTE:
Numbers in parenthesis correspond to numbered components in referenced illustrations.
Ensure that the correct spark plug is installed. An incorrect spark plug causes driveability conditions. See SPARK PLUGS under IGNITION SYSTEMS in SERVICE & ADJUSTMENT SPECIFICATIONS - ALERO, GRAND AM & MALIBU article for the correct spark plug. Ensure that the spark plug has the correct heat range. An incorrect heat range causes the following conditions:
- Spark plug fouling - Colder plug.
- Pre-ignition causing spark plug and/or engine damage - Hotter plug.

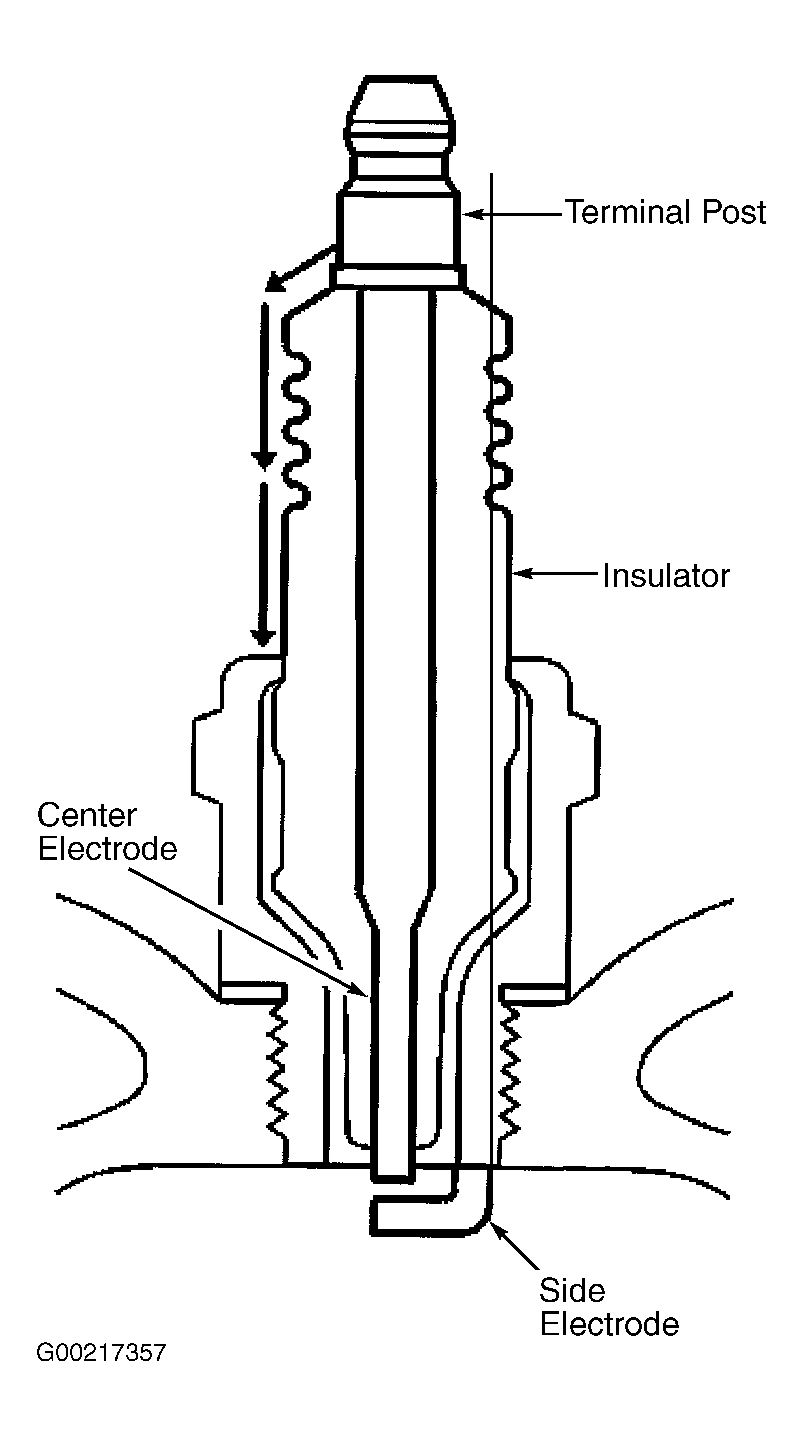

- Inspect the terminal post for damage. See Fig 1. Inspect for a bent or broken terminal post. Test for a loose terminal post by twisting and pulling the post. The terminal post should NOT move.
- Inspect the insulator for flashover or carbon tracking, soot. This is caused by the electrical charge traveling across the insulator between the terminal post and ground. See Fig 1. Inspect for the following conditions:
- Inspect the spark plug boot for damage.
- Inspect the spark plug recess area of the cylinder head for moisture, such as oil, coolant, or water. A spark plug boot that is saturated causes arcing to ground.
- Inspect the insulator for cracks. All or part of the electrical charge may arc through the crack instead of the electrodes.
- Inspect for evidence of improper arcing.
- Measure the gap between the center electrode and the side electrode terminals. See Fig 1. Adjust the spark plug gap to 0.045" (1.14 mm). An excessively wide electrode gap can prevent correct spark plug operation.
- Inspect for the correct spark plug torque. See TORQUE SPECIFICATIONS . Insufficient torque can prevent correct spark plug operation. An over torqued spark plug, causes the insulator to crack. See Fig 1.
- Inspect for signs of tracking that occurred near the insulator tip instead of the center electrode.
- Inspect for a broken or worn side electrode.
- Inspect for a broken, worn, or loose center electrode by shaking the spark plug. A rattling sound indicates internal damage. A loose center electrode (4) reduces the spark intensity.
- Inspect for bridged electrodes. Deposits on the electrodes reduce or eliminates the gap.
- Inspect for worn or missing platinum pads on the electrodes, if equipped.
- Inspect for excessive fouling.
- Inspect the spark plug recess area of the cylinder head for debris. Dirty or damaged threads can cause the spark plug not to seat correctly during installation.
