Cruise Control Systems
>>
Schematic and Routing Diagrams
>>
Cruise Control Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Cruise Control Schematics

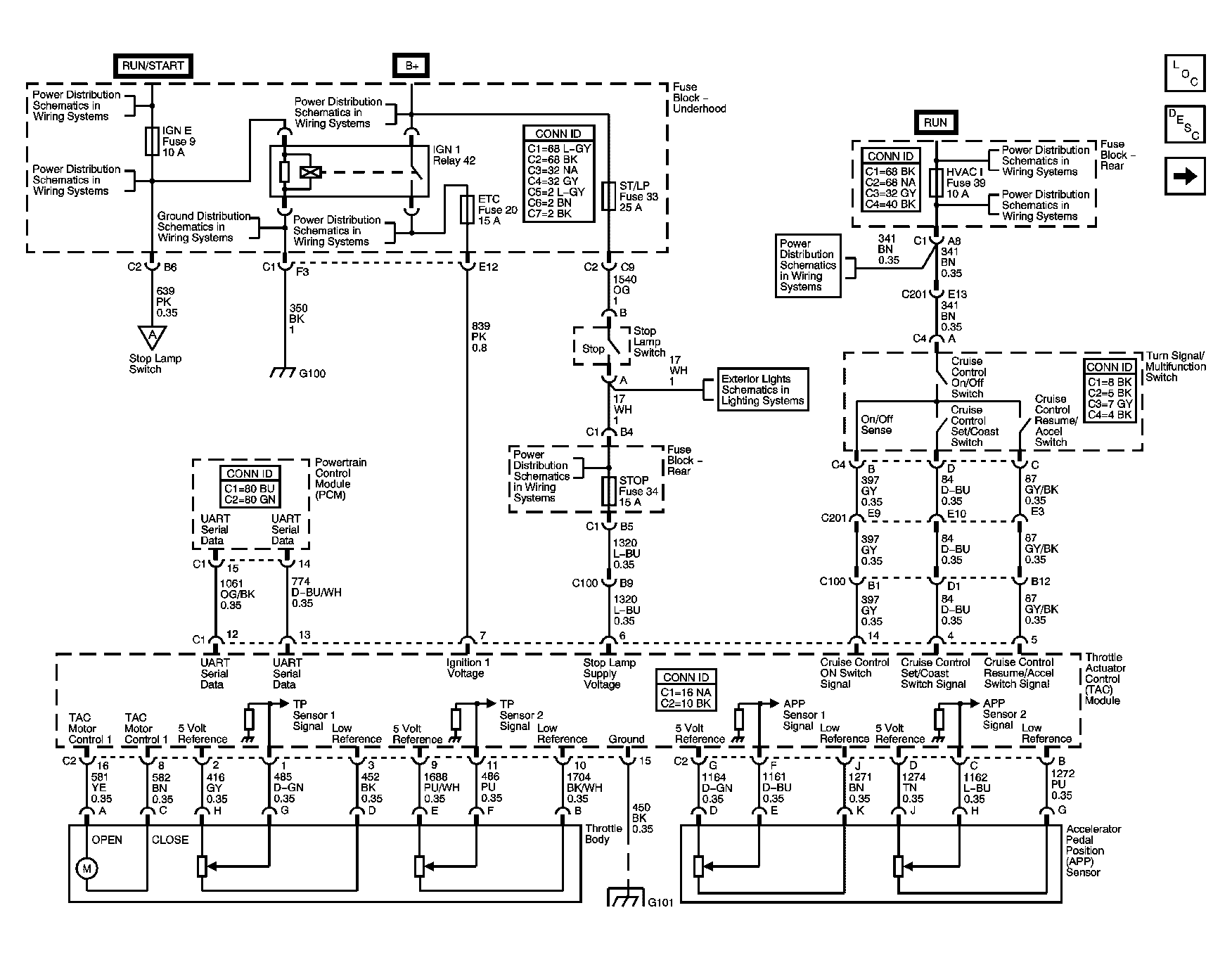

Fig 1: Power, Ground, TAC Module, APP Sensor and Throttle Body
Courtesy of GENERAL MOTORS CORP.
Fig 2: Stop Lamp Switch, EBCM and PCM
Courtesy of GENERAL MOTORS CORP.
