Three-Dimensional Measurements
Three-dimensional measurements are provided in the absence of dimension information from the equipment supplier. Universal three-dimensional measuring equipment is required to use these numbers. You may need to adjust the height dimensions to match the datum height of your equipment. Only the width dimensions can be used to measure point-to-point. All holes, slots, and fasteners are measured from the center.

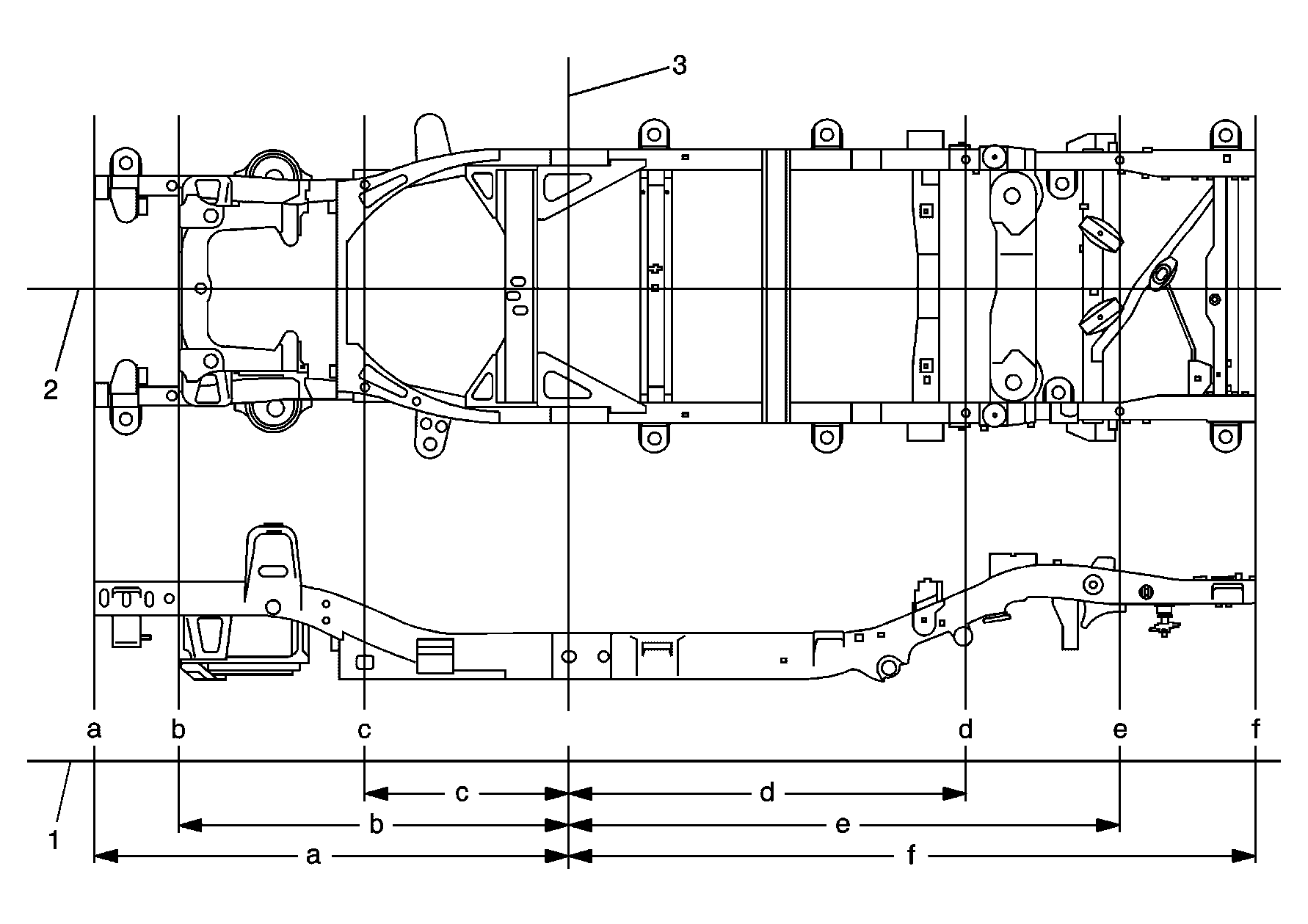

Dimensions - Frame
| Location | Description | Length | Width | Height |
|---|---|---|---|---|
| 1 | Datum Line | - | - | - |
| 2 | Center Line | - | - | - |
| 3 | Zero Line | - | - | - |
| a | Lower Bracket Hole | 1849 | 416 | 568 |
| b | Lower Die Mark | 1574 | 416 | 552 |
| c | Lower Gusset Hole | 841 | 392 | 294 |
| d | 31 mm Hole | 1571 | 495 | 449 |
| e | 14 mm Hole | 2178 | 497 | 569 |
| f | Lower Inboard Tangent | 2705 | 432 | 569 |
| All dimensions are measured in millimeters, from a zero line, a center line, and a common datum. All dimensions are symmetrical, unless otherwise specified. | ||||
