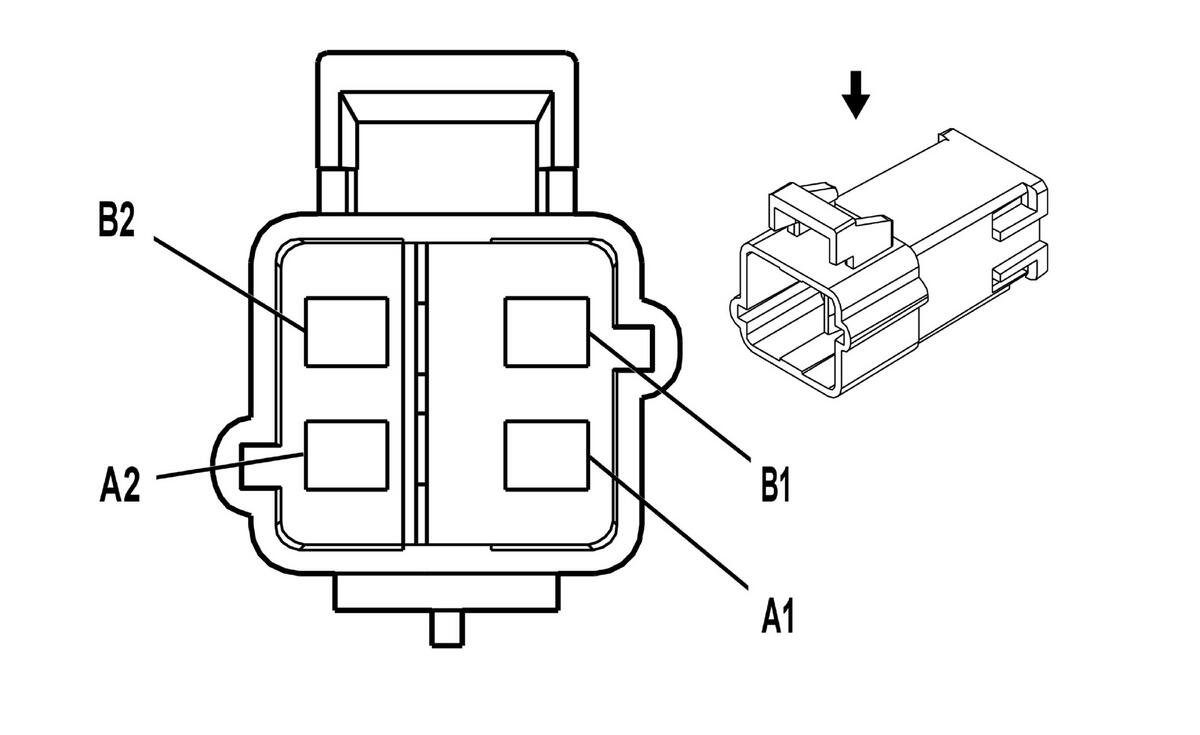

Inflatable Restraint I/P Module Connector End View

Inflatable Restraint I/P Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15336476 4-Way M Metri-Pack 280 Series (YE)
Pin	Wire Color	Circuit No.	Function
A1	YE	3025	Passenger I/P Module Stage 1 High Control
A2	OG	3024	Passenger I/P Module Stage 1 Low Control
B1	GY	3027	Passenger I/P Module Stage 2 High Control
B2	PU	3026	Passenger I/P Module Stage 2 Low Control
