Roof/Door Module C1 Connector End View

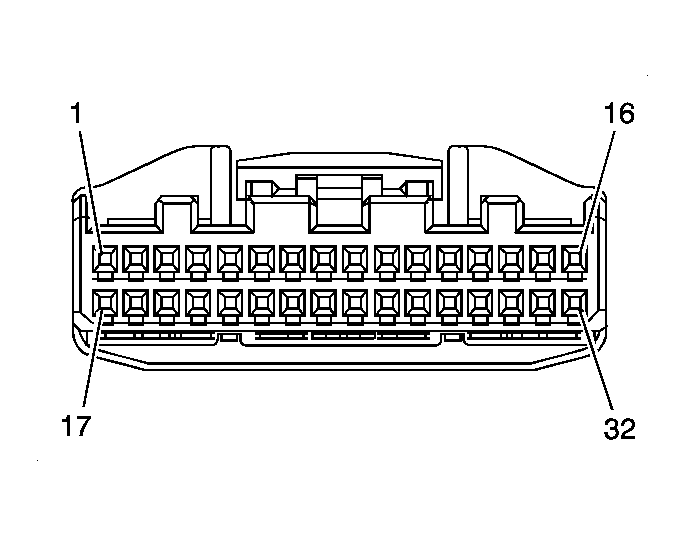

Roof/Door Module C1

GM1372288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1318747-1
  • 32-Way F 025 Series (WH)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 D-GN/WH 1135 A/T Shift Lock Control Solenoid Control Voltage
4 GY 6137 A/C Request Signal
5 L-BU 2288 Class 2 Serial Data
6 RD 931 Power Window Return Signal
7 L-BU 915 Power Window Left Position Sensor 2
8 L-GN 916 Power Window Left Position Sensor 1
9 L-GN 927 Power Window Left Position Sensor 2
10 L-BU 926 Power Window Left Position Sensor 1
11-13 - - Not Used
14 L-GN 2763 Power Window Motor Left Up Control
15 OG 2764 Power Window Motor Left Down Control
16 L-BU 166 Power Window Motor Right Up Control
17 TN 167 Power Window Motor Right Down Control
18 OG 110 Retractable Roof Switch Up Signal
19 BN 100 Retractable Roof Switch Down Signal
20 - - Not Used
21 GY/BK 745 Left Front Door Ajar Signal
22 L-GN/BK 394 Door Handle Switch Signal - LF
23 L-GN 262 Driver Door Key Switch Signal
24 BK/WH 746 Right Front Door Ajar Signal
25 L-BU 395 Door Handle Switch Signal - RF
26 L-GN 265 Passenger Door Key Switch Signal
27 WH 906 Retractable Roof Panel Outer Latch Latched Signal
28 YE 903 Retractable Roof Panel Outer Latch Unlatched Signal
29 L-GN 901 Rear Compartment Present Switch Signal
30 - - Not Used
31 D-BU 907 Retractable Roof Panel Outer Latch Striker Aligned Signal
32 L-BU 908 Retractable Roof Panel Outer Latch Striker Disengaged Signal


Roof/Door Module C1

GM1372288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1318747-1
  • 32-Way F 025 Series (WH)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 D-GN/WH 1135 A/T Shift Lock Control Solenoid Control Voltage
4 GY 6137 A/C Request Signal
5 L-BU 2288 Class 2 Serial Data
6 RD 931 Power Window Return Signal
7 L-BU 915 Power Window Left Position Sensor 2
8 L-GN 916 Power Window Left Position Sensor 1
9 L-GN 927 Power Window Left Position Sensor 2
10 L-BU 926 Power Window Left Position Sensor 1
11-13 - - Not Used
14 L-GN 2763 Power Window Motor Left Up Control
15 OG 2764 Power Window Motor Left Down Control
16 L-BU 166 Power Window Motor Right Up Control
17 TN 167 Power Window Motor Right Down Control
18 OG 110 Retractable Roof Switch Up Signal
19 BN 100 Retractable Roof Switch Down Signal
20 - - Not Used
21 GY/BK 745 Left Front Door Ajar Signal
22 L-GN/BK 394 Door Handle Switch Signal - LF
23 L-GN 262 Driver Door Key Switch Signal
24 BK/WH 746 Right Front Door Ajar Signal
25 L-BU 395 Door Handle Switch Signal - RF
26 L-GN 265 Passenger Door Key Switch Signal
27 WH 906 Retractable Roof Panel Outer Latch Latched Signal
28 YE 903 Retractable Roof Panel Outer Latch Unlatched Signal
29 L-GN 901 Rear Compartment Present Switch Signal
30 - - Not Used
31 D-BU 907 Retractable Roof Panel Outer Latch Striker Aligned Signal
32 L-BU 908 Retractable Roof Panel Outer Latch Striker Disengaged Signal
