Roof/Door Module C2 Connector End View

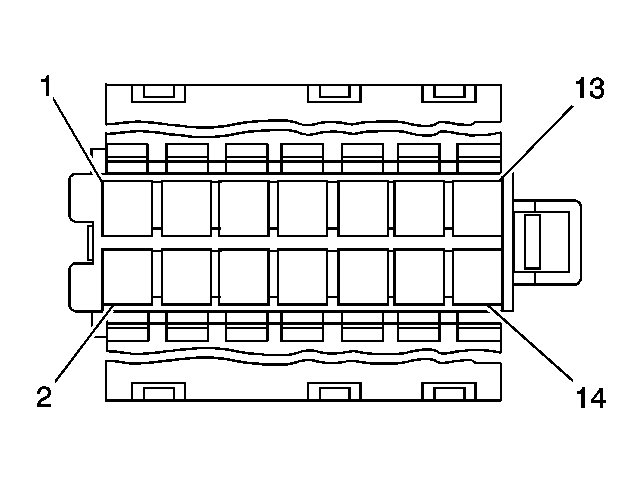

Roof/Door Module C2

GM1372289Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 929504-5
  • 14-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK 905 Retractable Roof Panel Outer Latch Actuator Control
3 - - Not Used
4 D-BU 164 Power Window Motor Left Front Up Control
5 OG 1840 Battery Positive Voltage
6 D-BU 666 Power Window Motor Right Front Down Control
7 OG 1340 Battery Positive Voltage
8 BN 165 Power Window Motor Right Front Up Control
9 - - Not Used
10 BN 165 Power Window Motor Left Front Down Control
11 - - Not Used
12 D-BU 904 Retractable Roof Panel Outer Latch Actuator Control
13 BK 1450 Ground
14 - - Not Used


Roof/Door Module C2

GM1372289Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 929504-5
  • 14-Way F (BK)
Pin Wire Color Circuit No. Function
1 - - Not Used
2 BK 905 Retractable Roof Panel Outer Latch Actuator Control
3 - - Not Used
4 D-BU 164 Power Window Motor Left Front Up Control
5 OG 1840 Battery Positive Voltage
6 D-BU 666 Power Window Motor Right Front Down Control
7 OG 1340 Battery Positive Voltage
8 BN 165 Power Window Motor Right Front Up Control
9 - - Not Used
10 BN 165 Power Window Motor Left Front Down Control
11 - - Not Used
12 D-BU 904 Retractable Roof Panel Outer Latch Actuator Control
13 BK 1450 Ground
14 - - Not Used
