Rear Relay Block

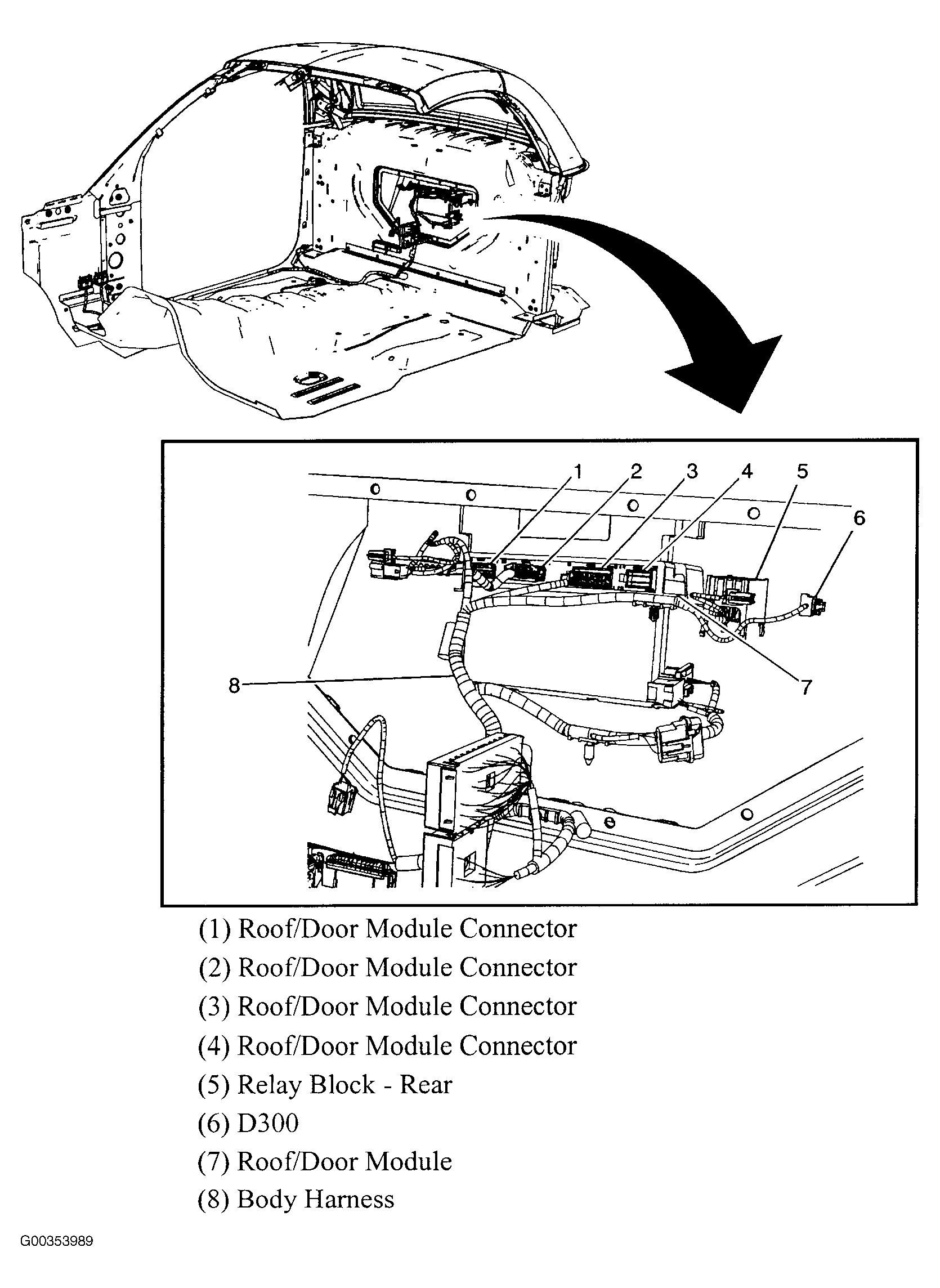

Rear relay block is located in rear center of body compartment behind seats near roof/door module. See Figure, Figure and Fig 1
.
Courtesy of GENERAL MOTORS CORP.

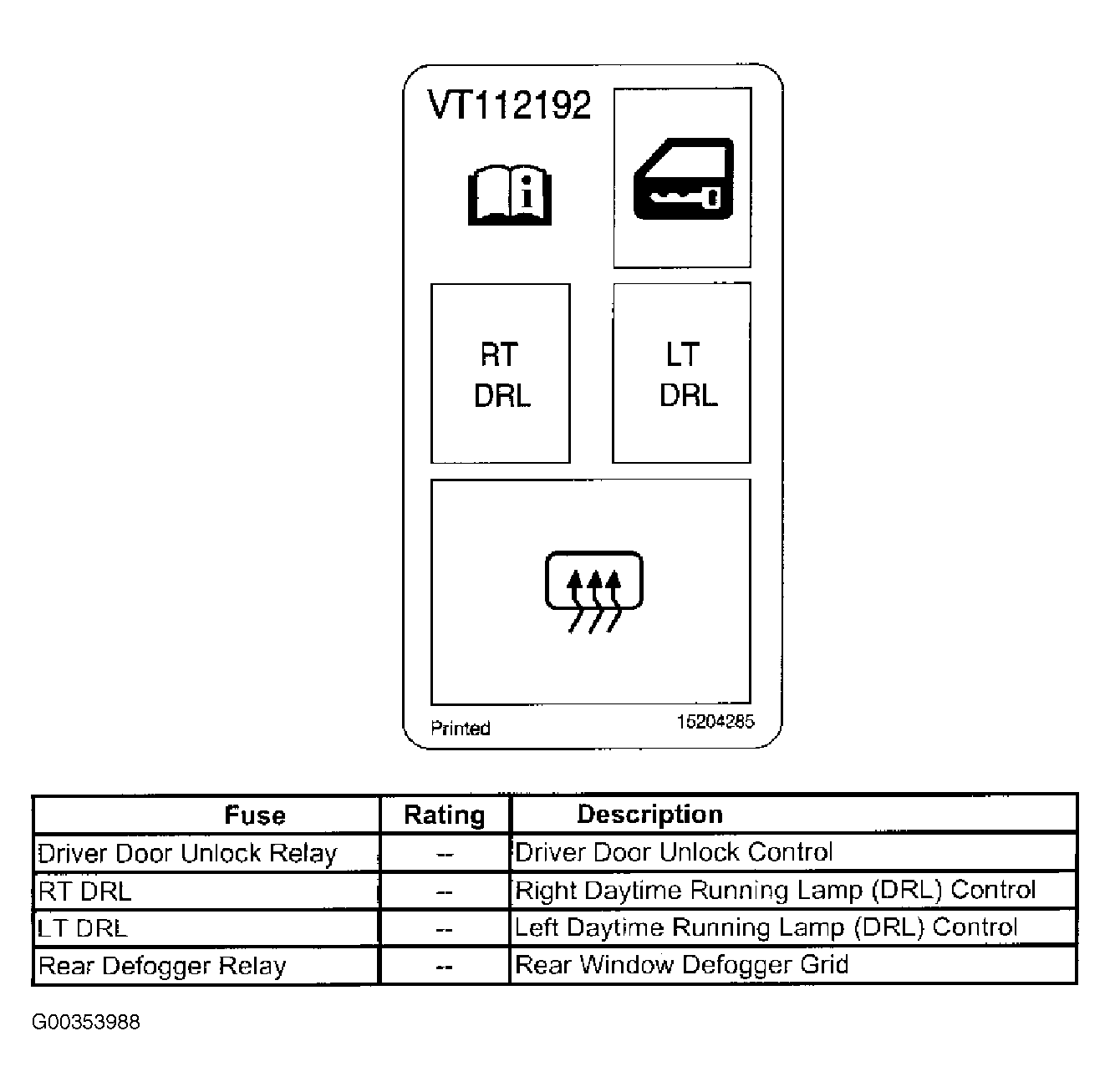

Courtesy of GENERAL MOTORS CORP. REAR RELAY BLOCK RELAY IDENTIFICATION
| RELAY DESCRIPTION |
| Driver Door Unlock Relay |
| Right DRL Relay |
| Left DRL Relay |
| Rear Defogger Relay |
