Cooling System Component Views

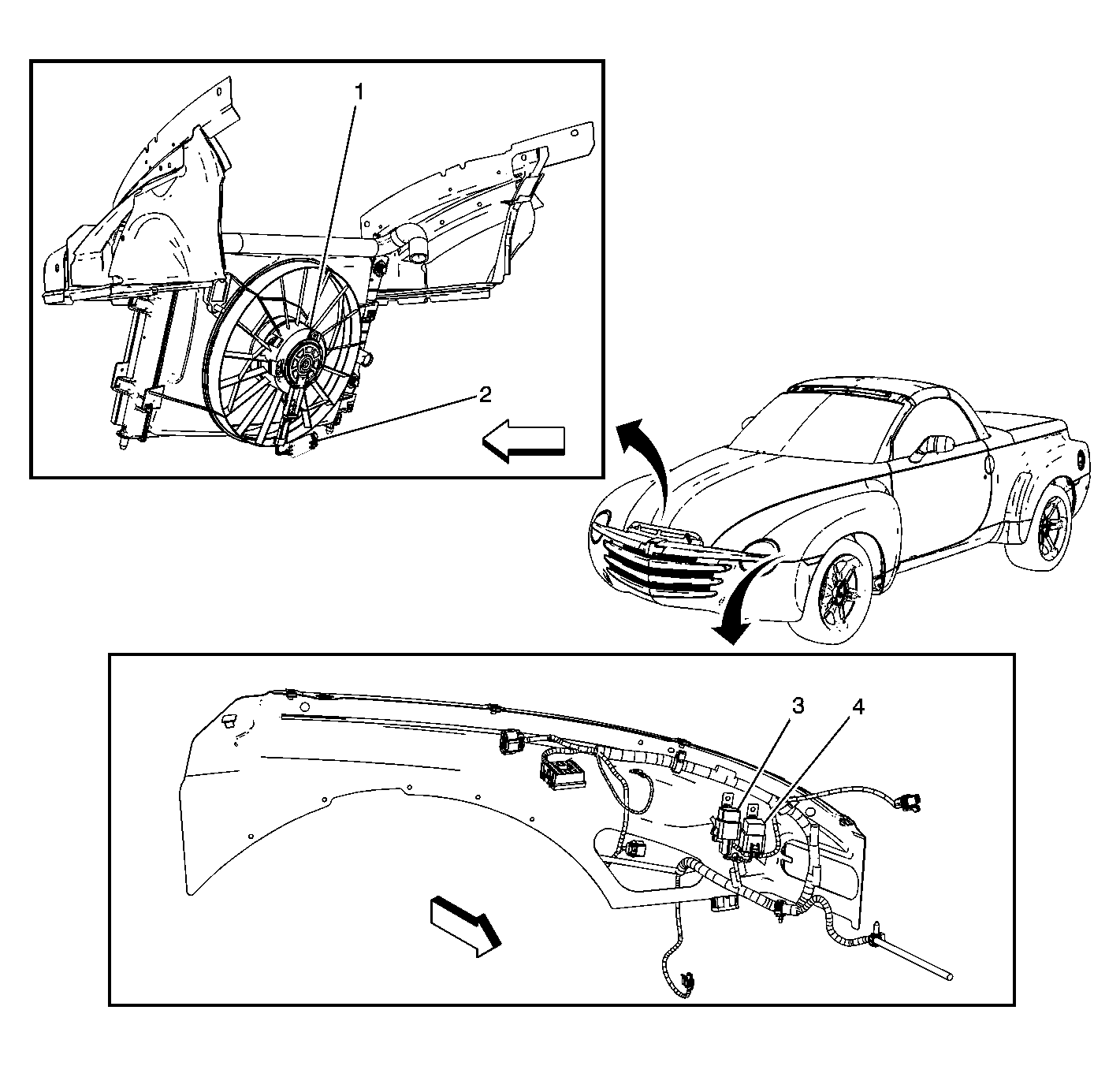

Fig 1: Engine Cooling Components
GM1283870Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cooling Fan
2 Cooling Fan Connector
3 Cooling Fan 1 Relay
4 Cooling Fan 2 Relay
