SP200 Connector End View

SP200 Connector

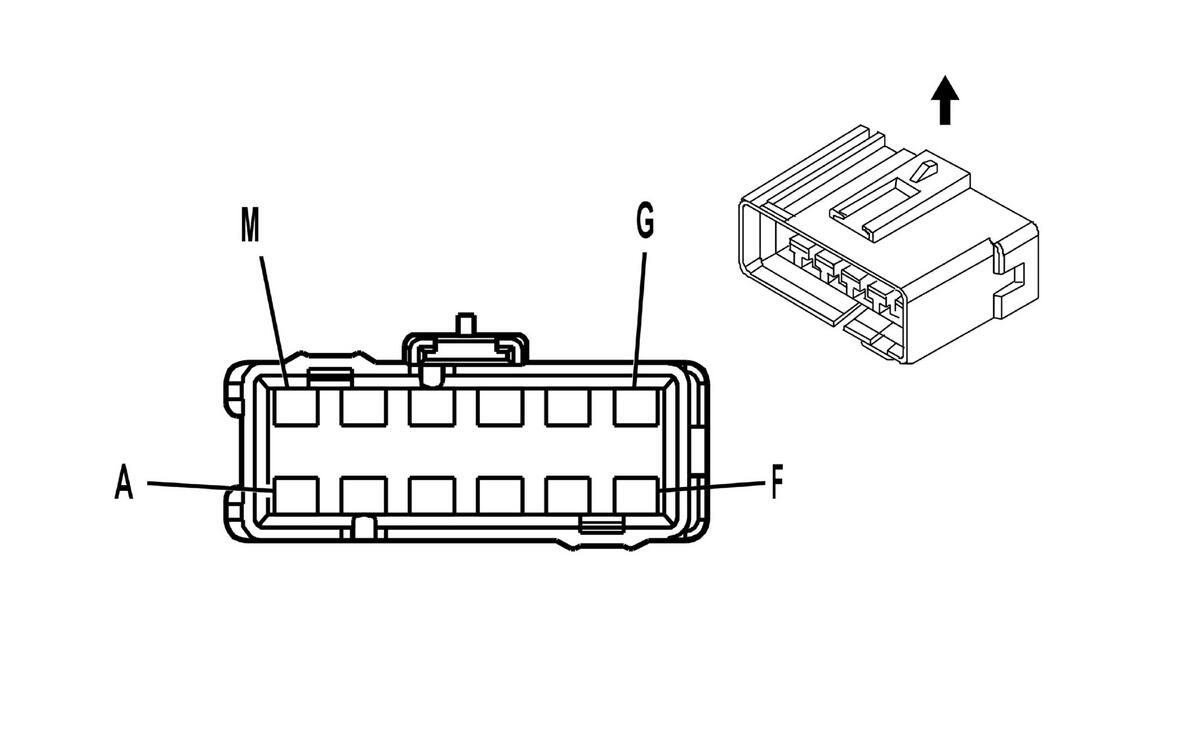

GM365987Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12191928
  • 12-Way F Metri-Pack 280 Series Splice Saver (BK) Indexing May Vary
Pin Wire Color Circuit No. Function
A BK 2250 Ground
B BK 2250 Ground
C BK 2250 Ground
D BK 2250 Ground
E BK 2250 Ground
F BK 2250 Ground
G BK 2250 Ground
H BK 2250 Ground
J BK 2250 Ground
K BK 2250 Ground
L BK 2250 Ground
M BK 2250 Ground
