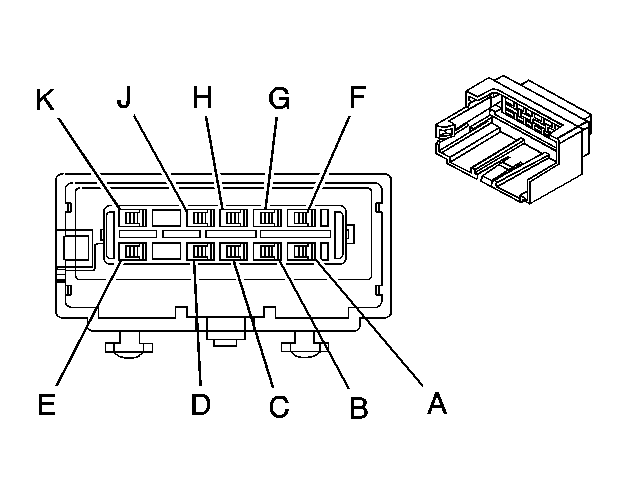

Turn Signal/Hazard Flasher Module Connector End View

Turn Signal/Hazard Flasher Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15359360 10-Way F Metri-Pack Mixed Series (GY)
Pin	Wire Color	Circuit No.	Function
A	L-GN	1427	Right Turn Signal Switch Signal
B	WH	17	Stop Lamp Switch Signal
C	YE	18	Left Rear Stop/Turn Lamp Supply Voltage
D	D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
E	BK	2250	Ground
F	D-GN	1428	Left Turn Signal Switch Signal
G	WH	111	Hazard Switch Signal
H	YE	685	Left Turn Lamp Supply Voltage
J	TN	686	Right Turn Lamp Supply Voltage
K	OG	140	Battery Positive Voltage
