PID Value Charts

Ensure following conditions are met before comparing scan tool data to typical data value found in appropriate PID value chart:

• Engine is idling unless checking a value at a specified RPM.
• Throttle is closed unless checking a value at a specified RPM.
• Vehicle is in Park or Neutral.
• Vehicle is operating in closed loop.
• Vehicle accessories are turned off.

Compare actual PID values on scan tool to PID values found in appropriate PID value chart.

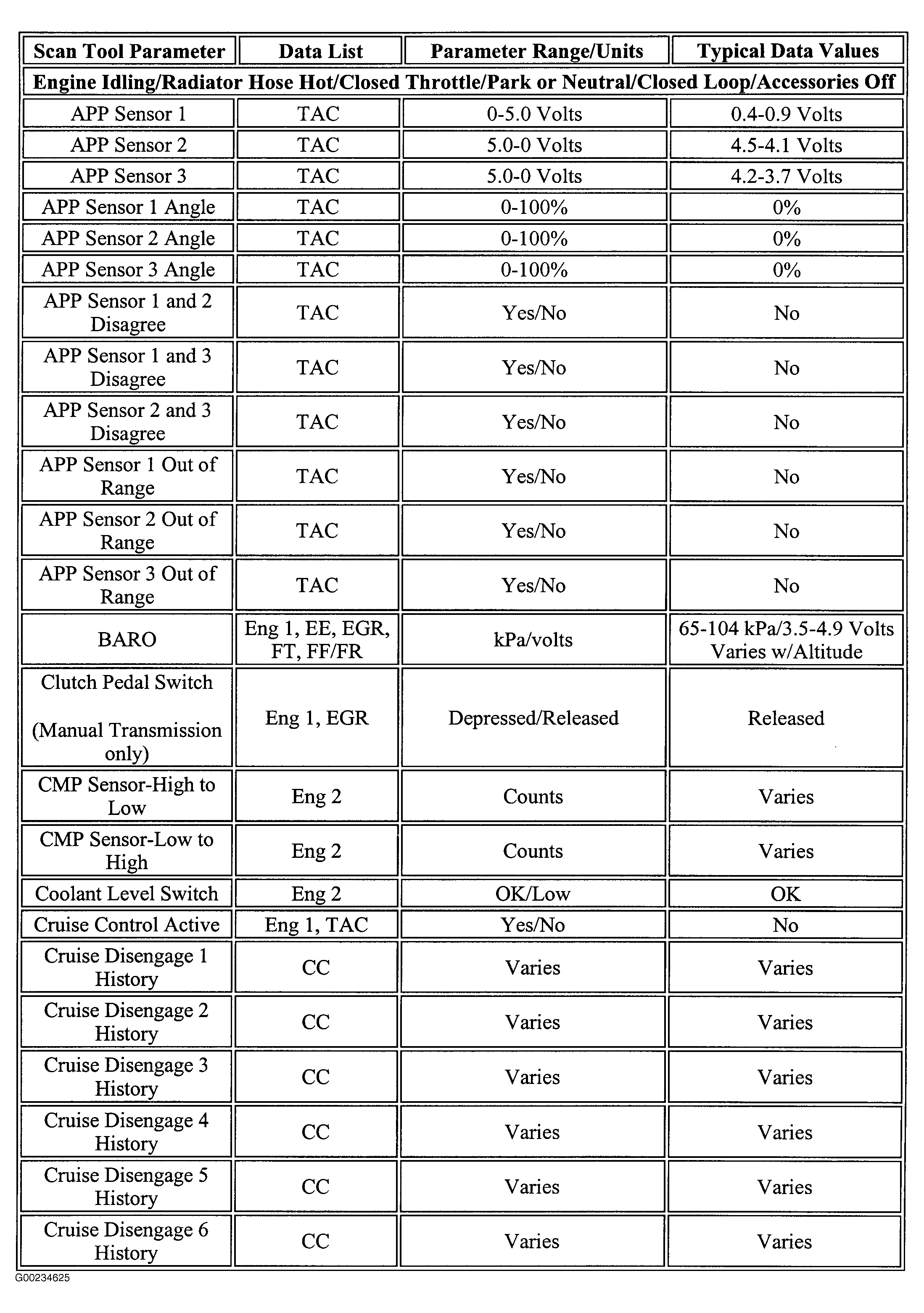

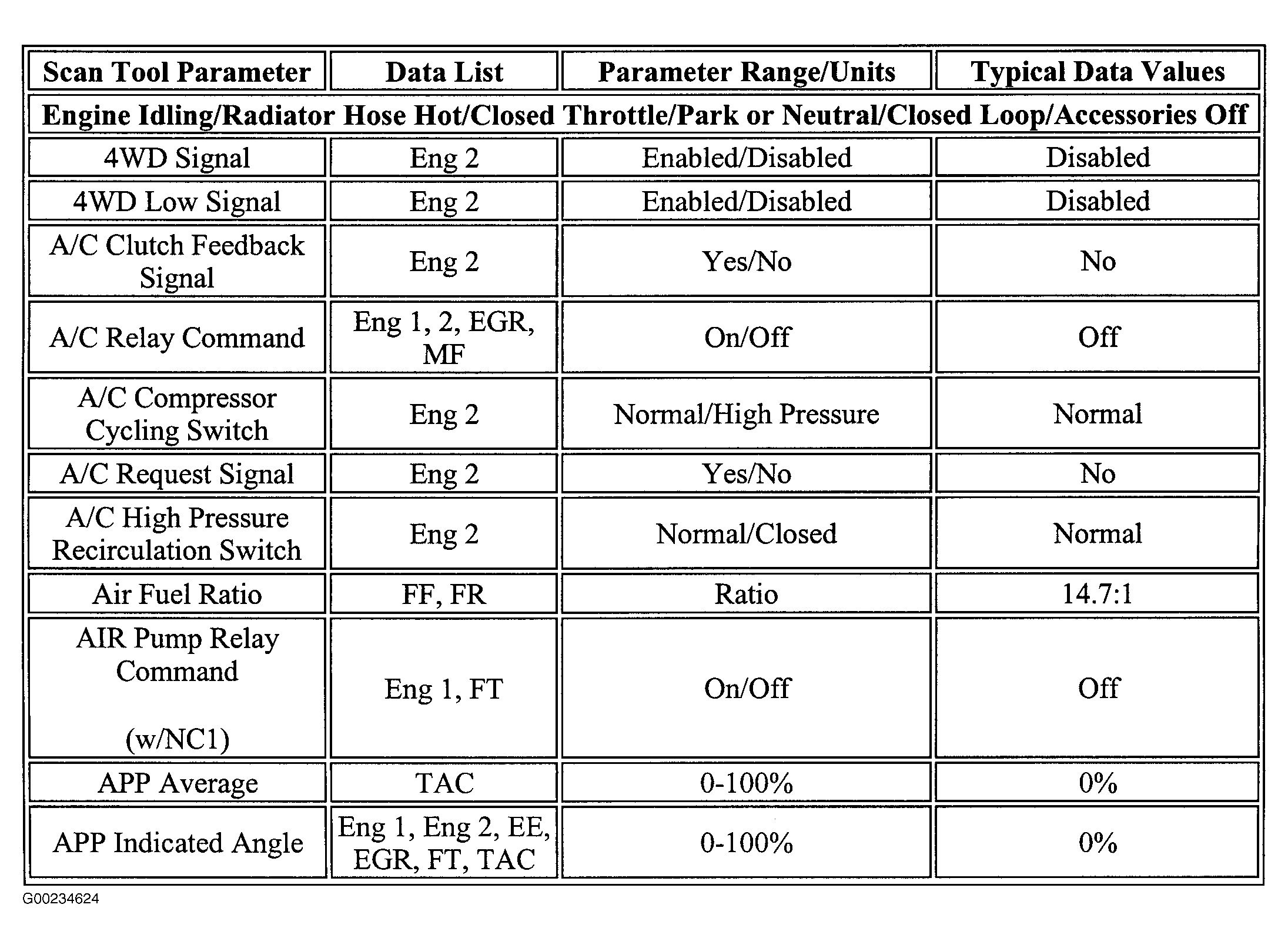

Fig 1: PID Values (1 Of 7)

Courtesy of GENERAL MOTORS CORP.

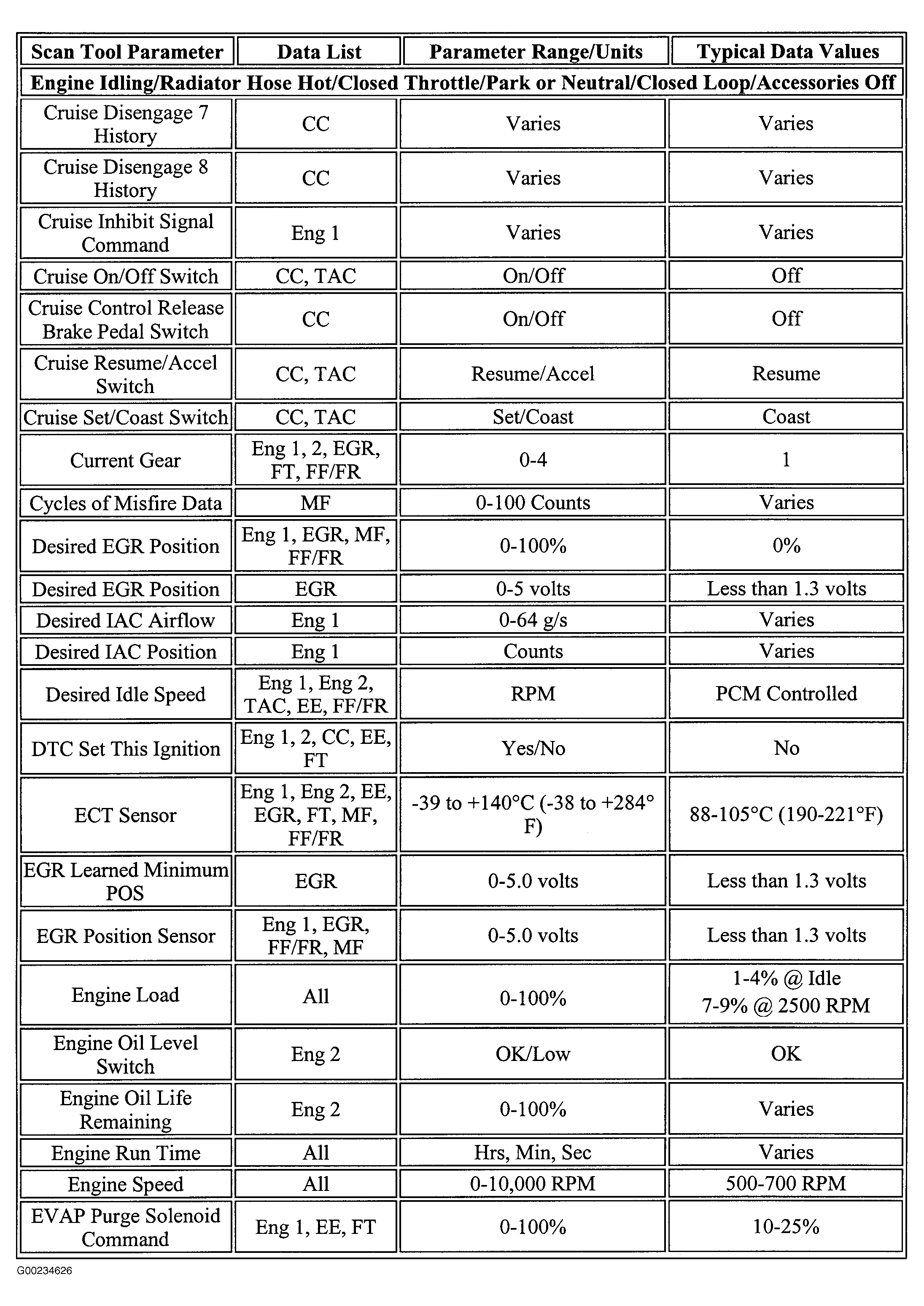

Fig 2: PID Values (2 Of 7)

Courtesy of GENERAL MOTORS CORP.

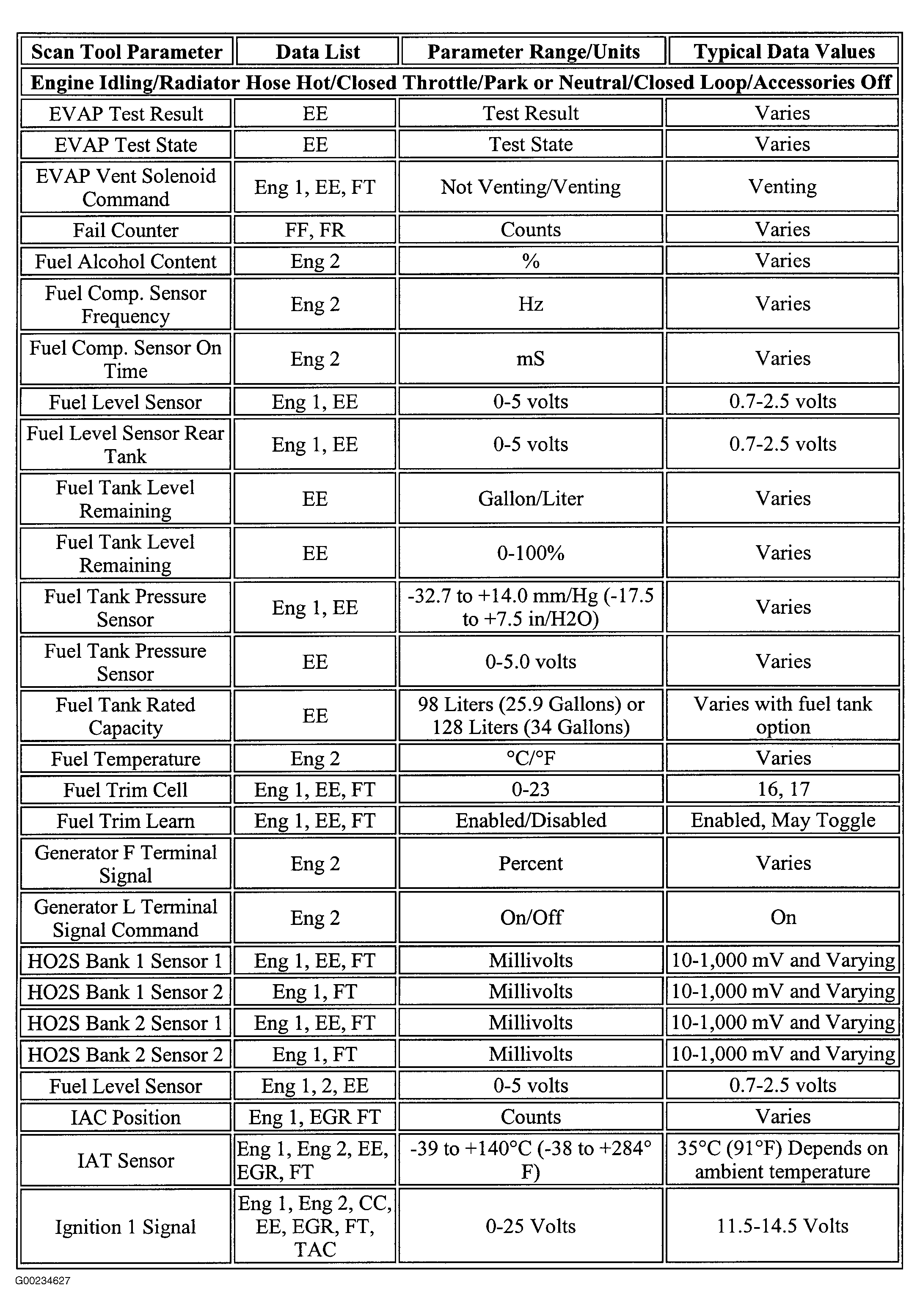

Fig 3: PID Values (3 Of 7)

Courtesy of GENERAL MOTORS CORP.

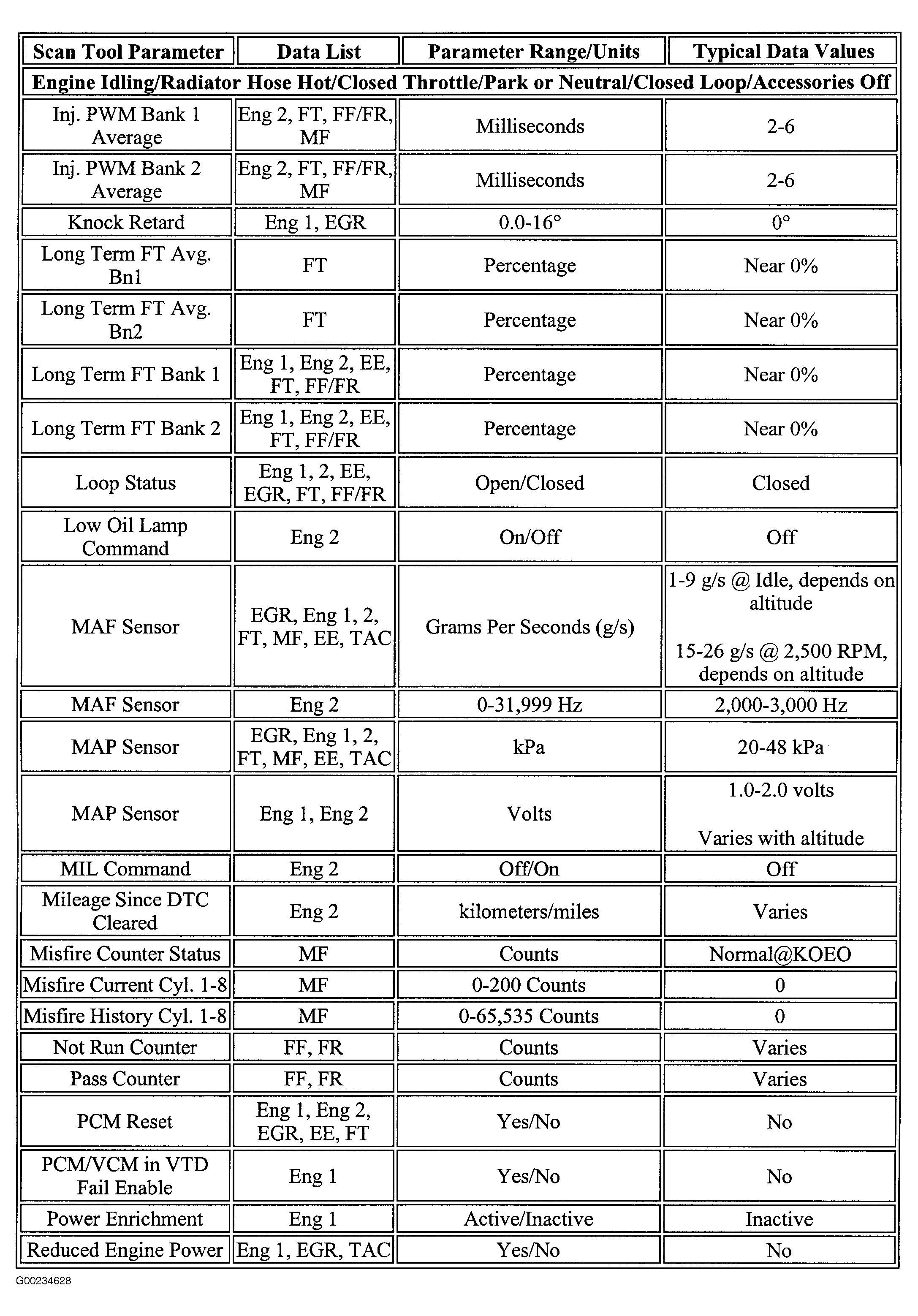

Fig 4: PID Values (4 Of 7)

Courtesy of GENERAL MOTORS CORP.

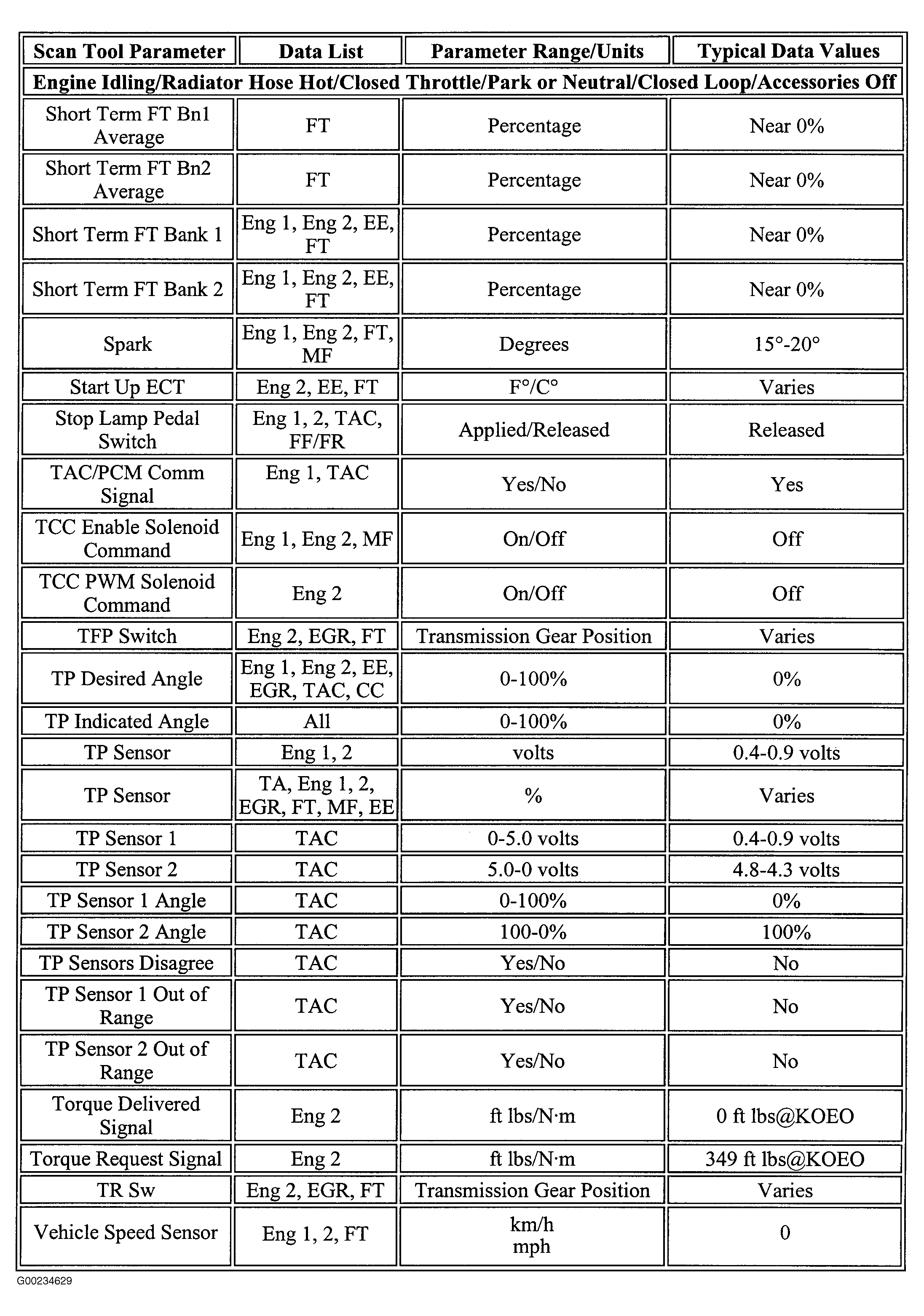

Fig 5: PID Values (5 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 6: PID Values (6 Of 7)

Courtesy of GENERAL MOTORS CORP.

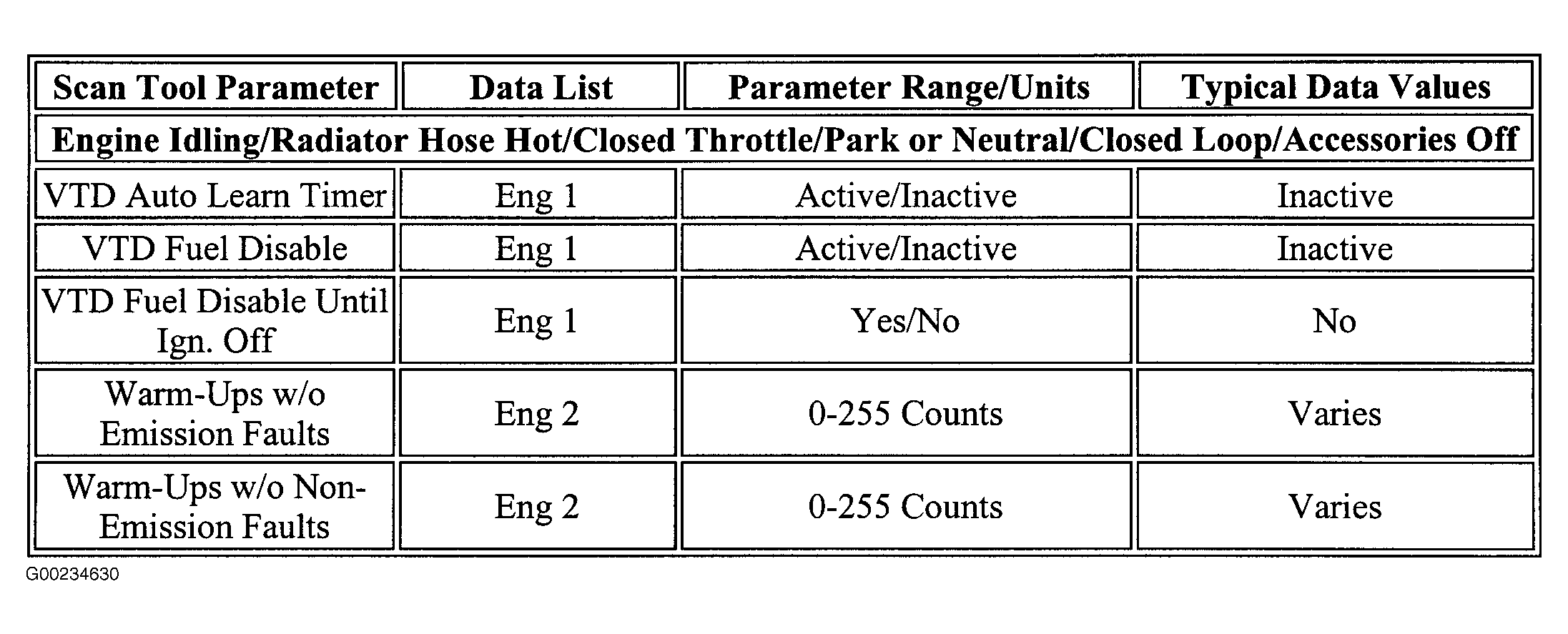

Fig 7: PID Values (7 Of 7)

Courtesy of GENERAL MOTORS CORP.
