Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Grand Am, 2002 Oldsmobile Alero, 2001 Pontiac Grand Am, and 2001 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

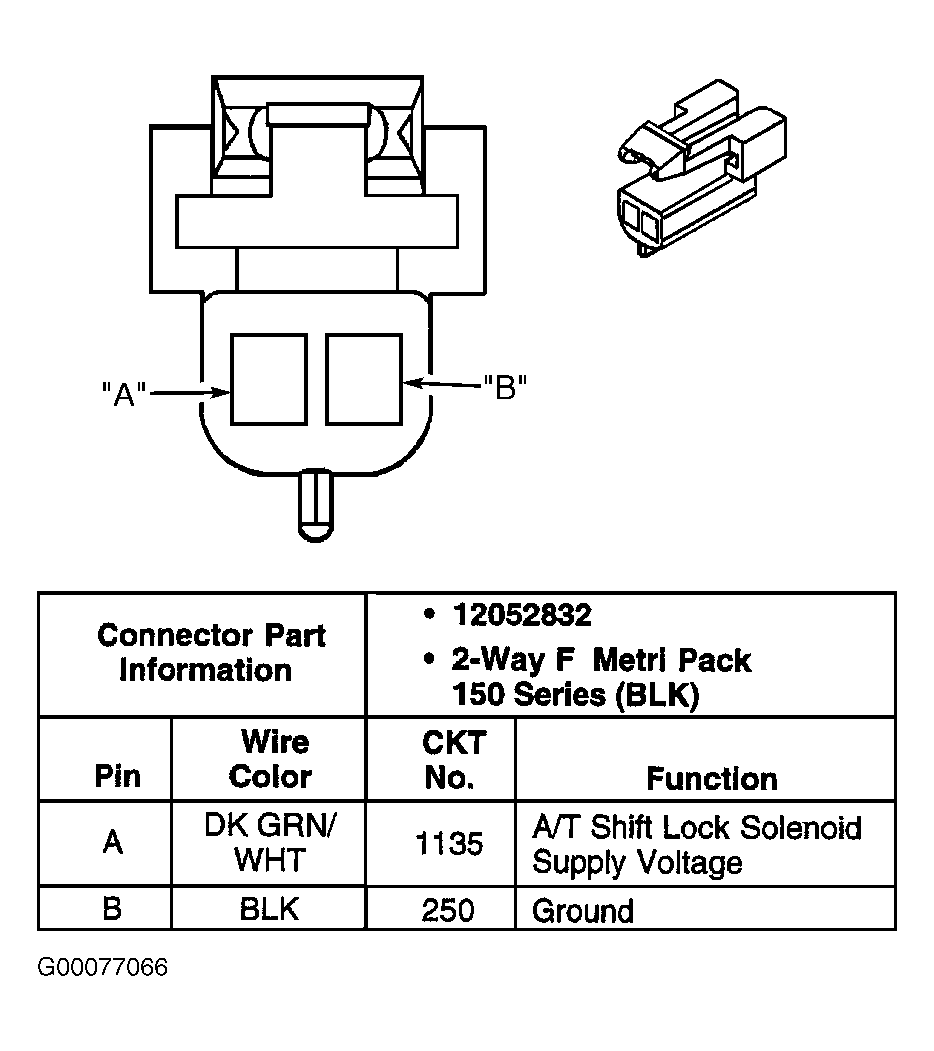

Fig 1: Identifying A/T Shift Lock Control Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

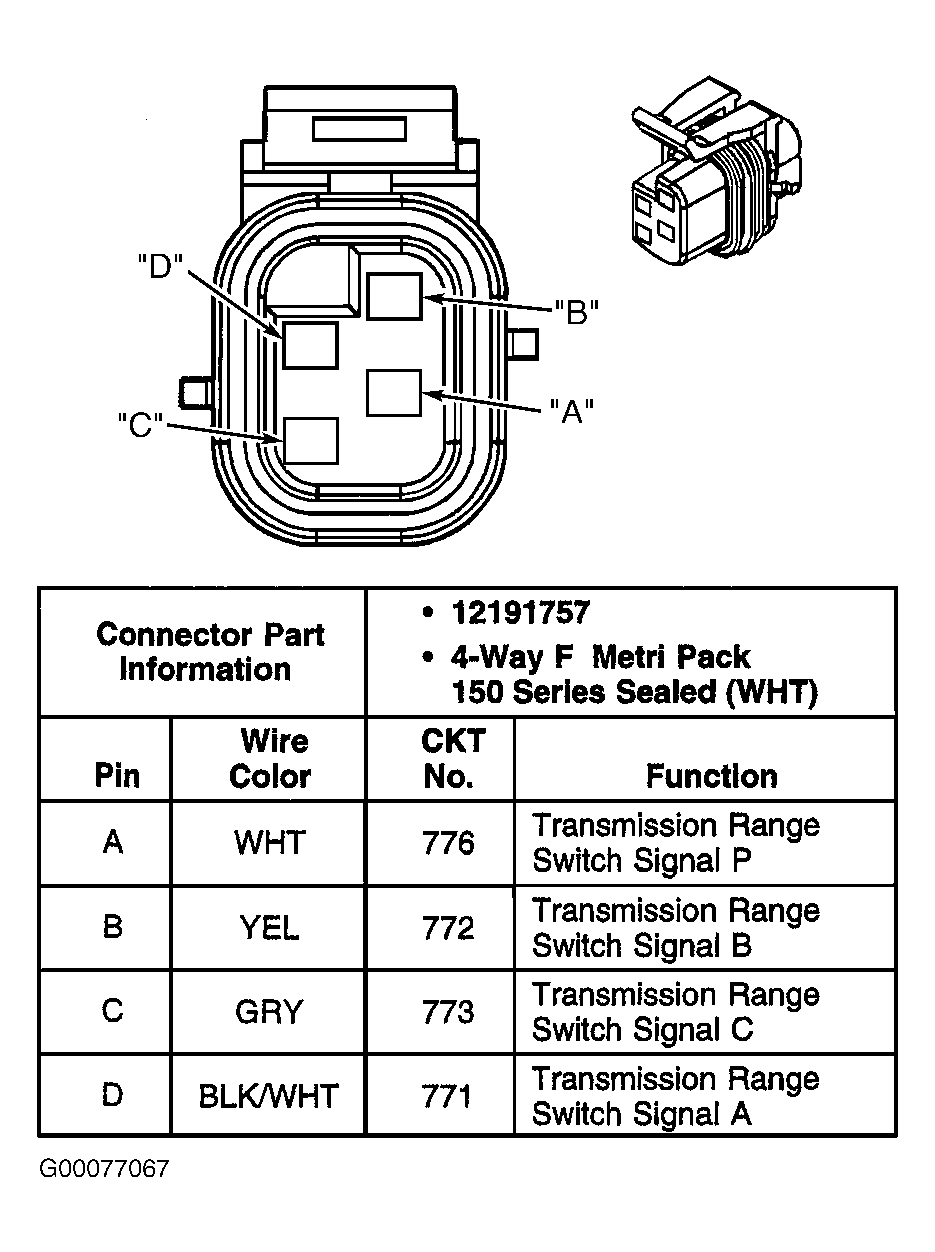

Fig 2: Identifying PNP Switch (C1) Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

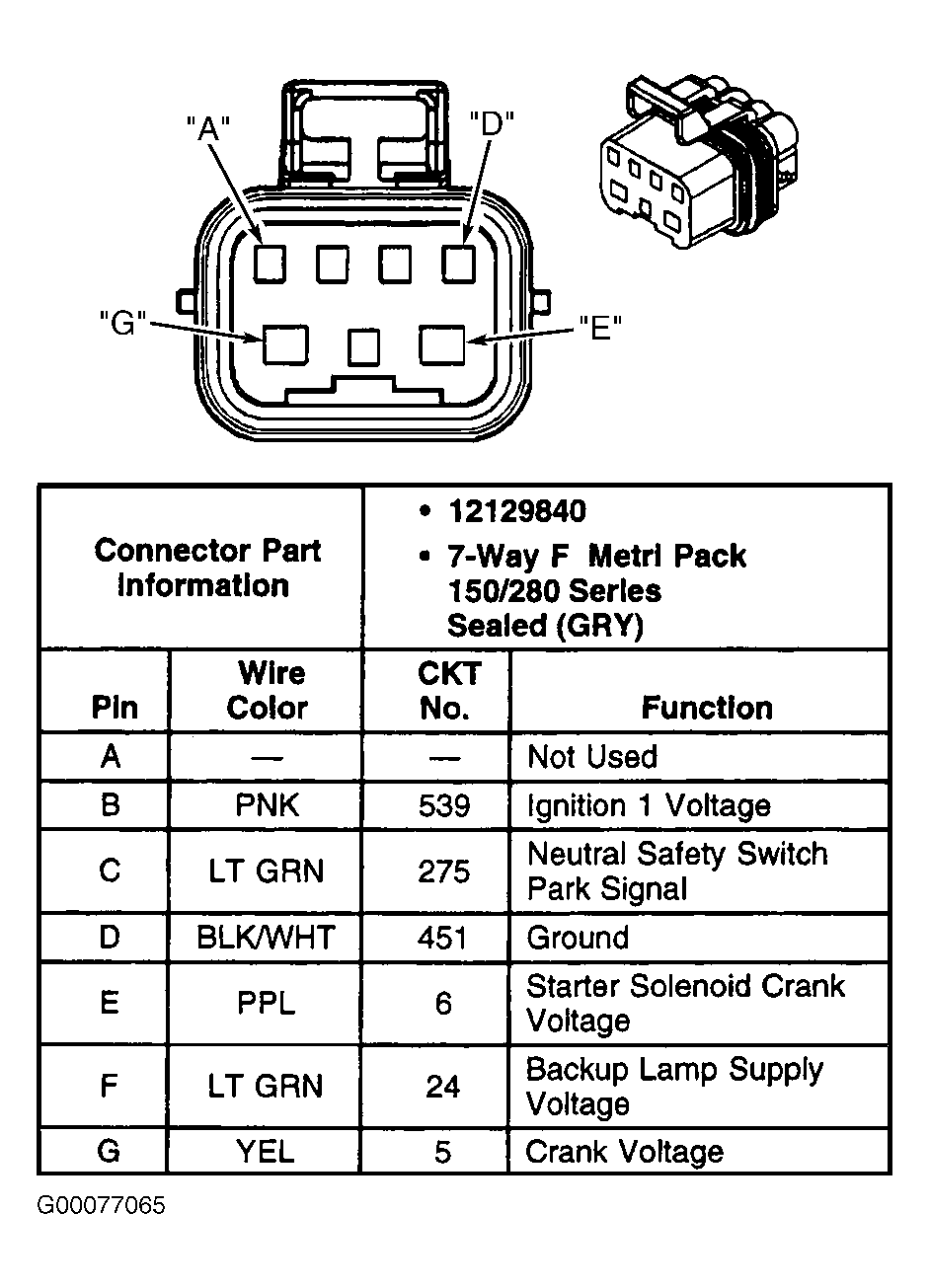

Fig 3: Identifying PNP Switch (C2) Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Stoplamp Switch (C1) Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Stoplamp Switch (C2) Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.
