Instrument Panel

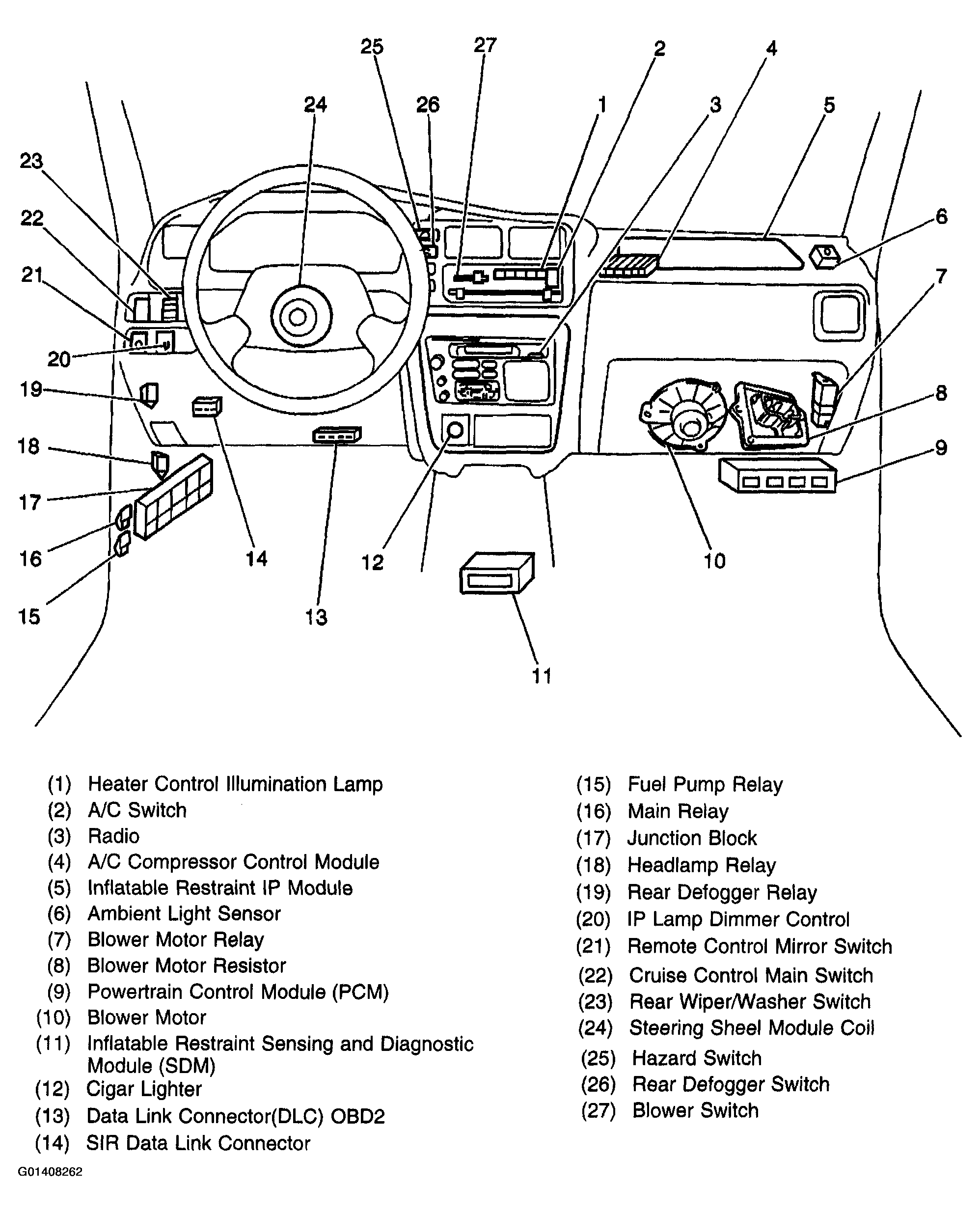

Fig 1: Instrument Panel
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
