Electronic Brake Control Module (EBCM)

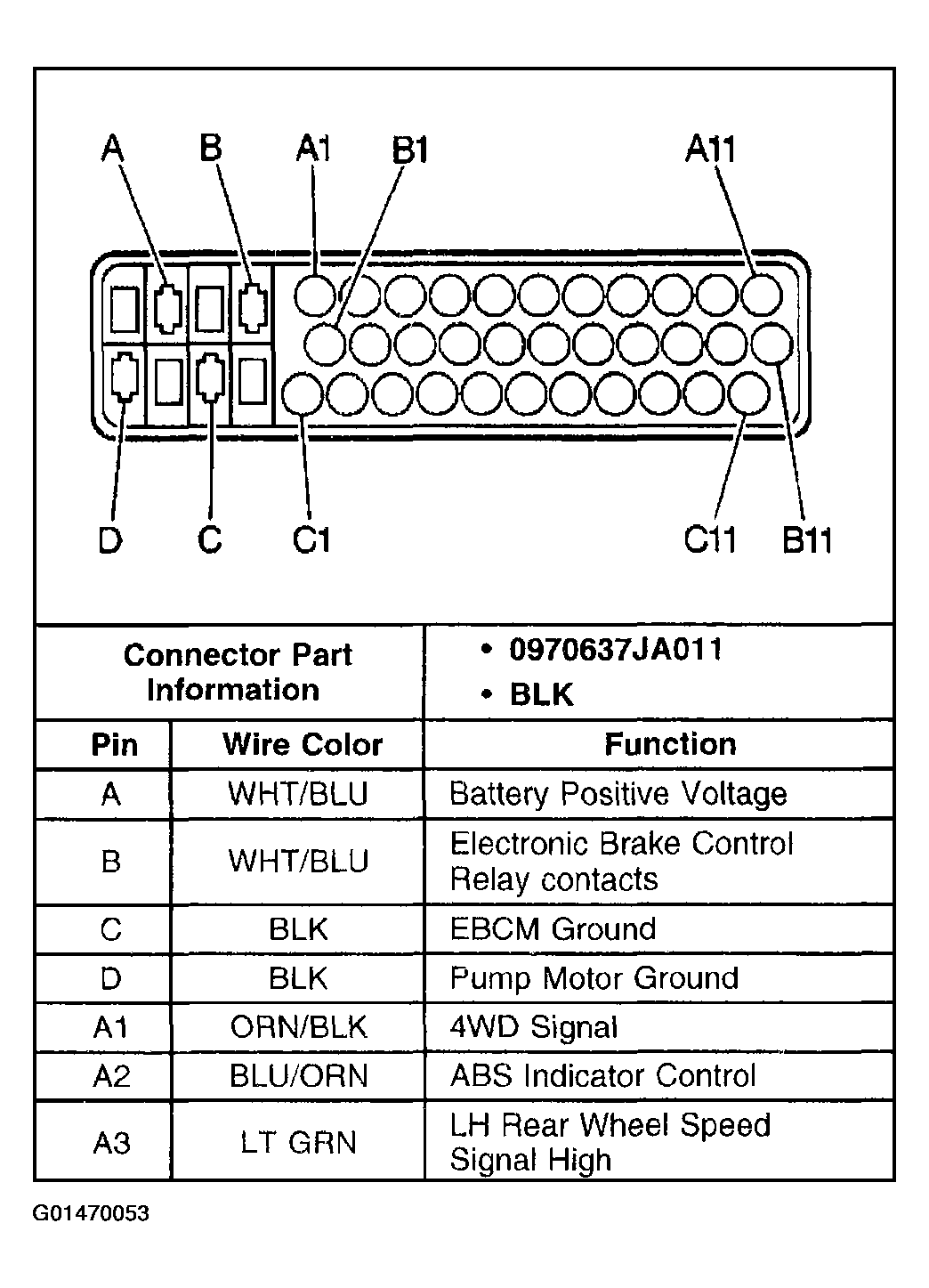

Fig 1: Electronic Brake Control Module (EBCM) (1 Of 2)
G01470053Courtesy of GENERAL MOTORS CORP.

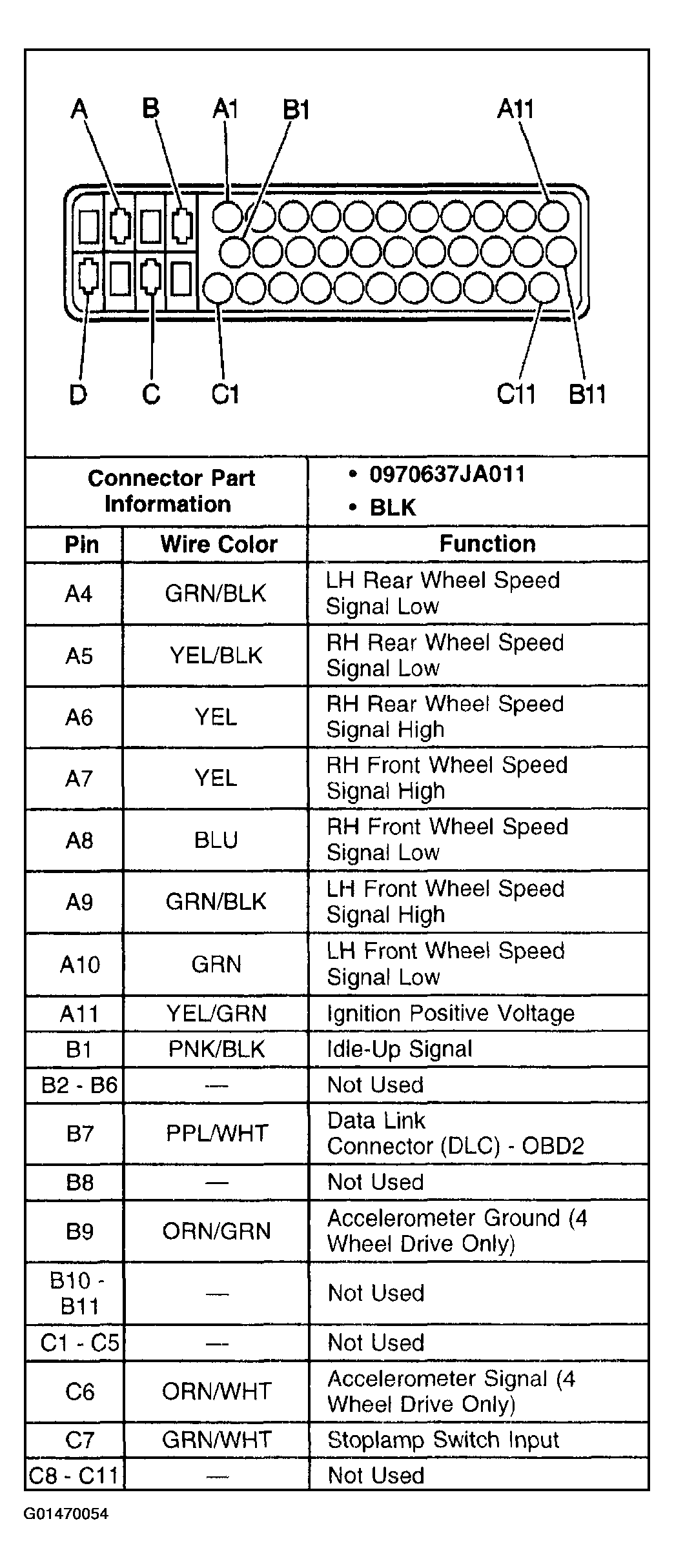

Fig 2: Electronic Brake Control Module (EBCM) (2 Of 2)
G01470054Courtesy of GENERAL MOTORS CORP.
