Connector Identification

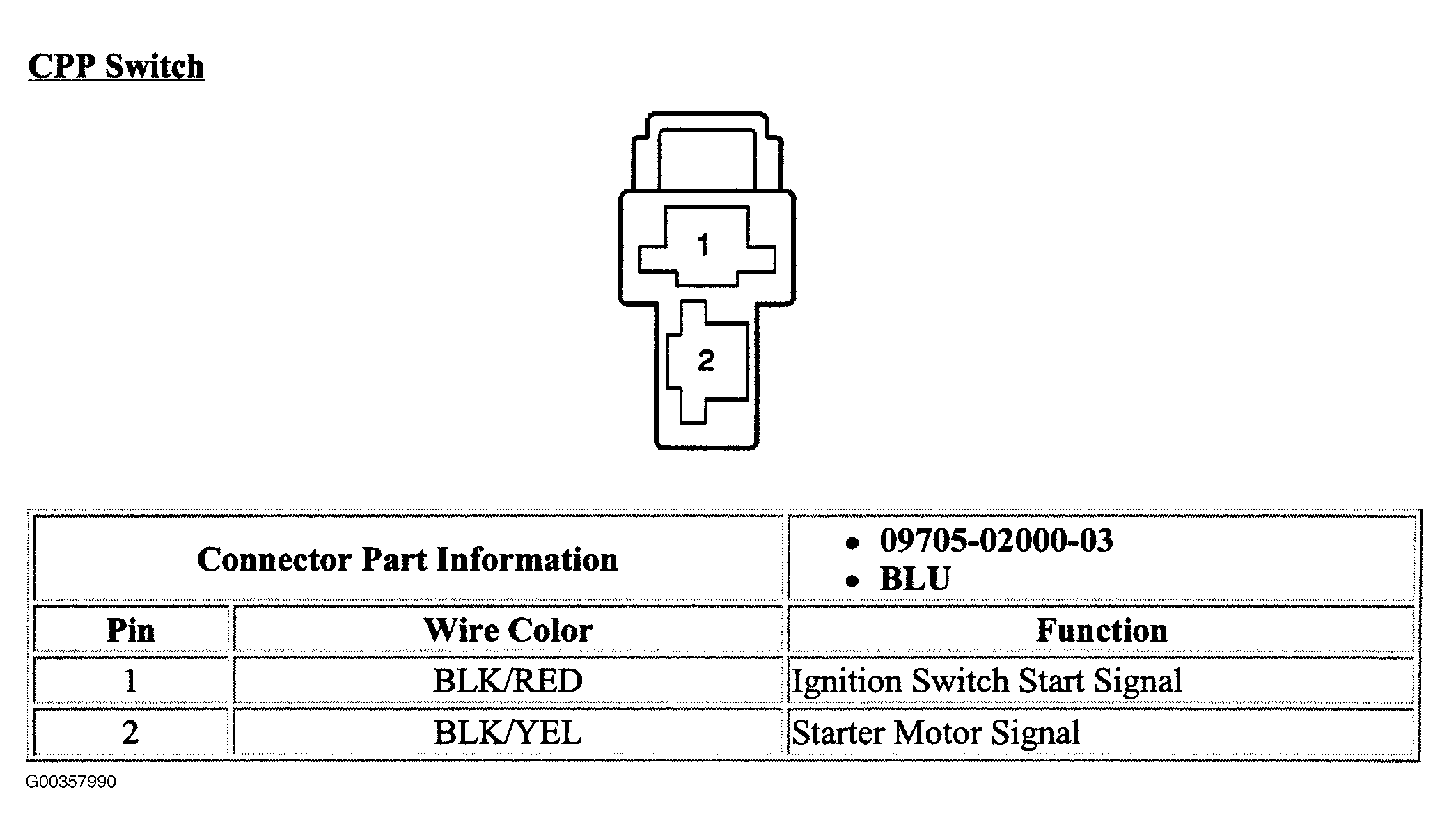

Fig 1: Identifying CPP Switch Connector

Courtesy of GENERAL MOTORS CORP.

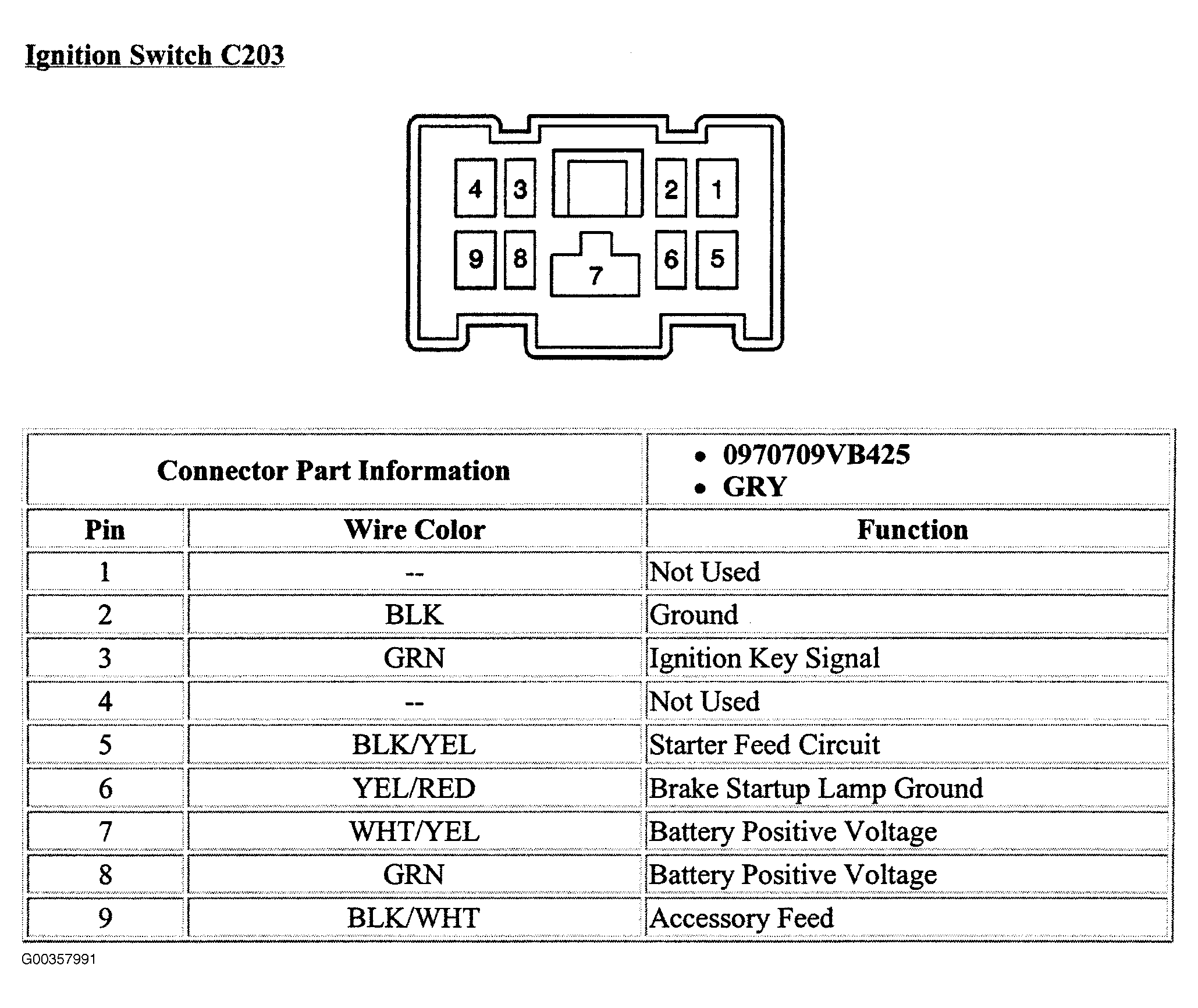

Fig 2: Identifying Ignition Switch C203 Connector

Courtesy of GENERAL MOTORS CORP.

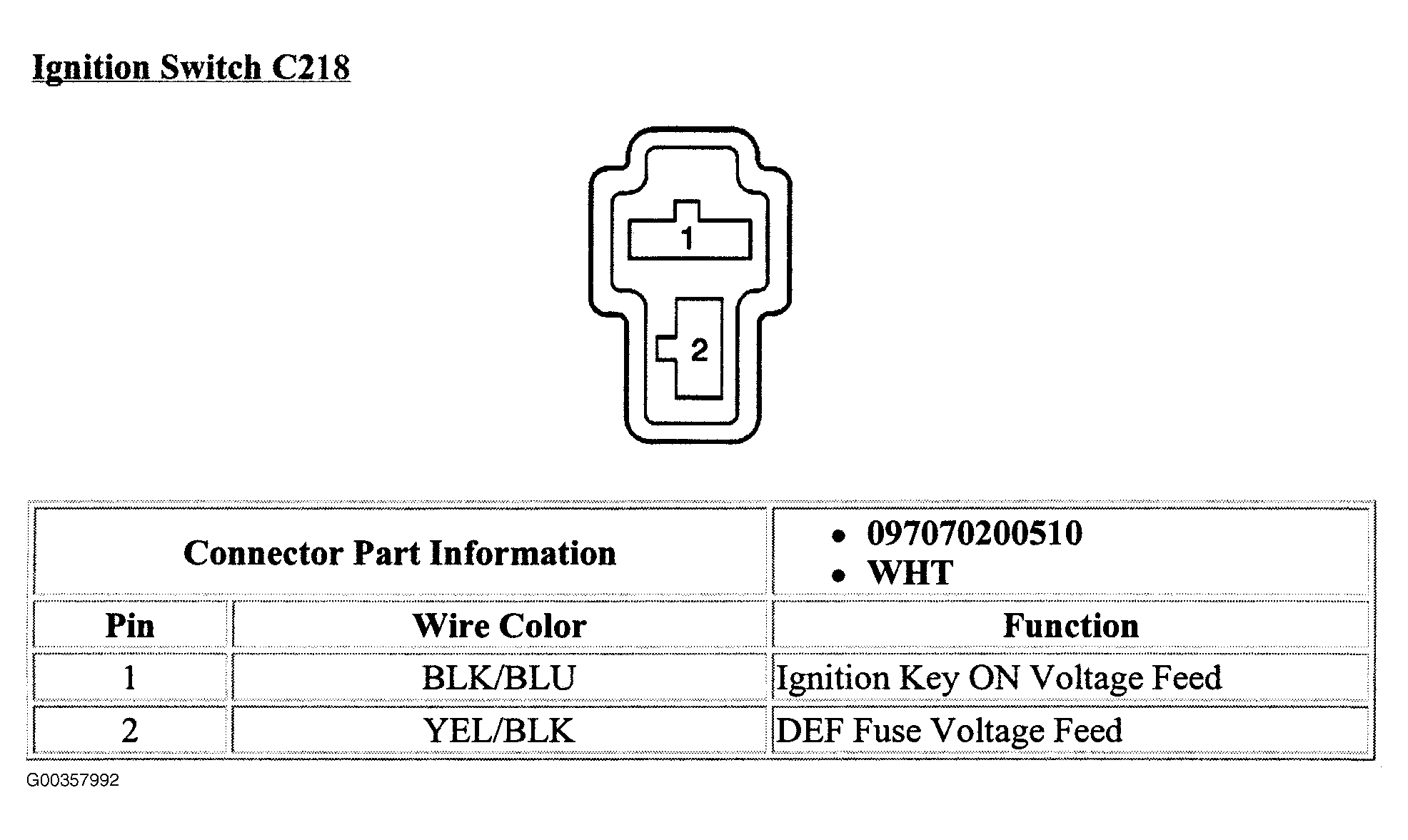

Fig 3: Identifying Ignition Switch C218 Connector

Courtesy of GENERAL MOTORS CORP.

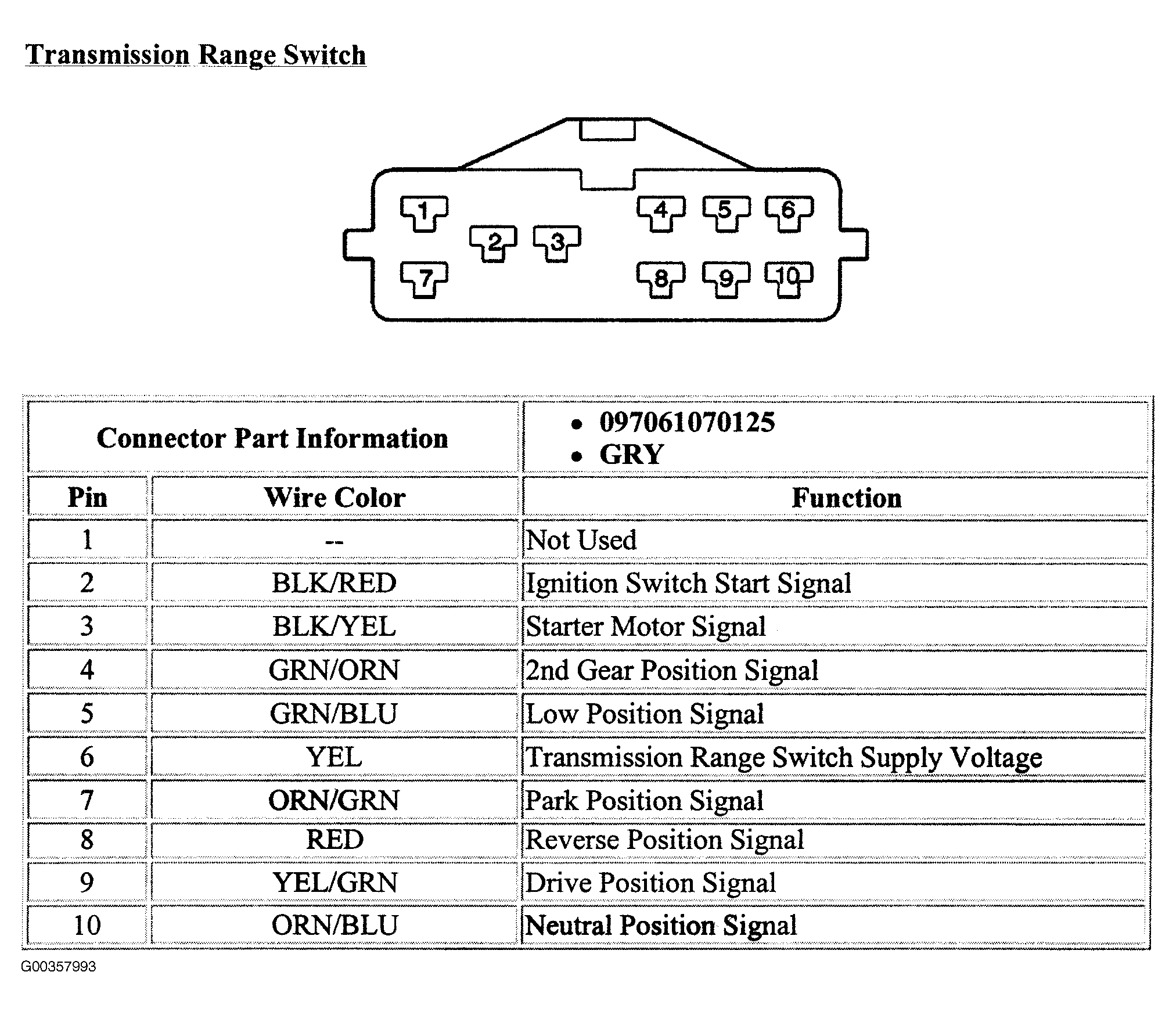

Fig 4: Identifying Transmission Range Switch Connector

Courtesy of GENERAL MOTORS CORP.
